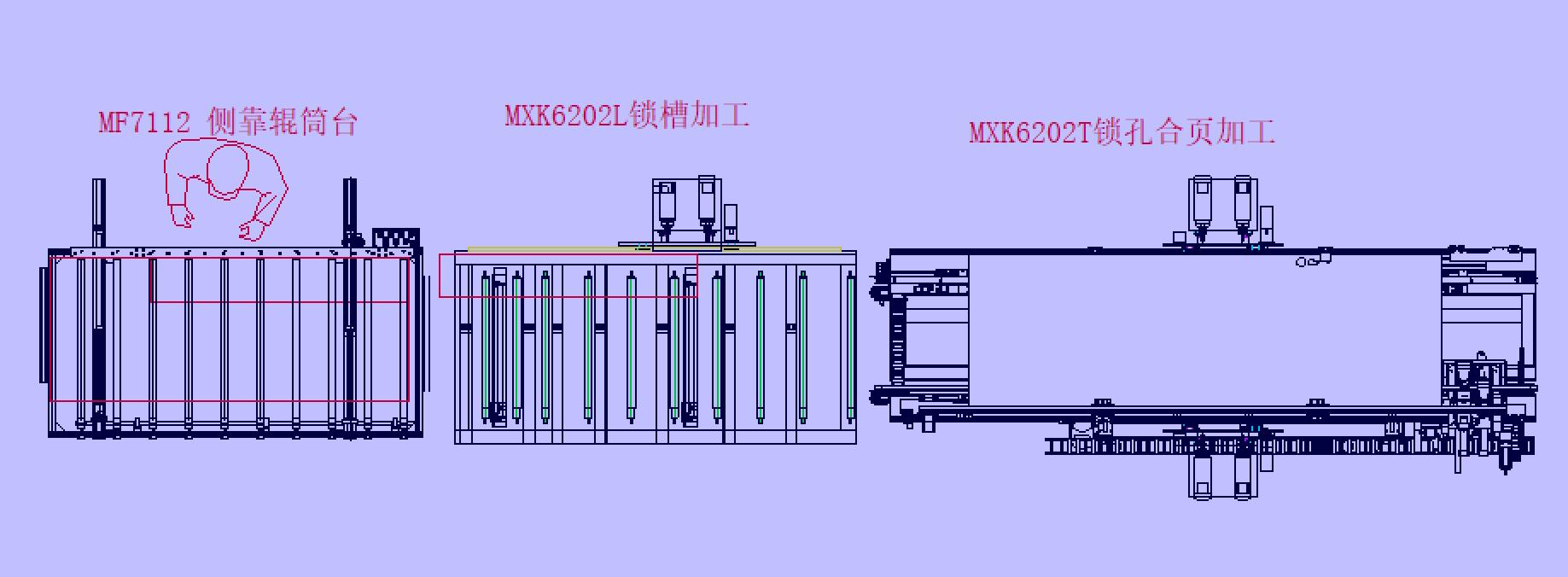

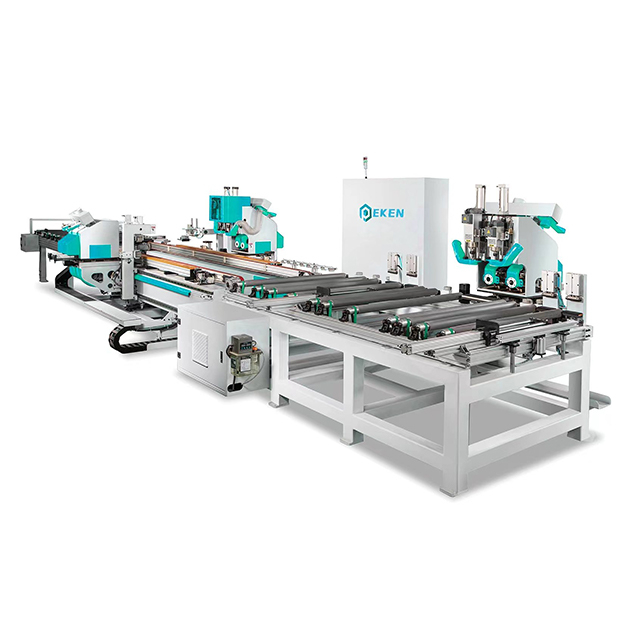

1. MF7112 roller table with side-by-side positioning, code scan , width measurement.

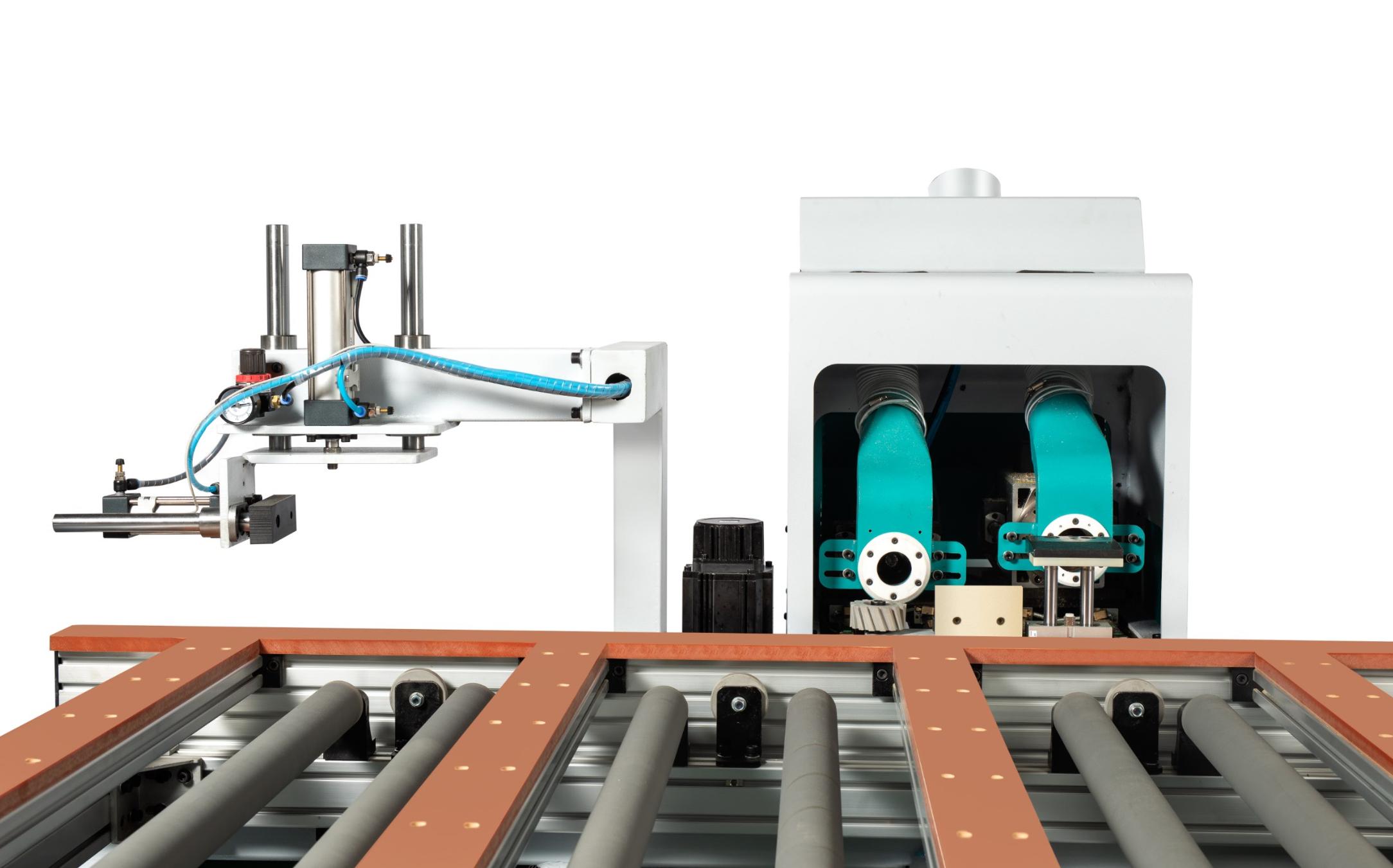

2. MXK6202L CNC door lock hole processing machine:
Door lock hole (horizontal) processing
3. MXK6202T CNC key hole & hinge processing machine：
Door lock hole (vertical), hinge processing
Three machines belong to a set of equipment, unified control, only one operator is required
Processing content：
· Door lock hole, lock slot, lock step, hinge
Processing object: conventional door
Processing efficiency: 60s/pc
Product name | MXK6202L CNC door lock hole processing machine | |
| ||
Working length | 1800～2500mm | |
Working width | 450～1100mm | |
Working thickness | 30～55mm | |
Fastest idle speed | 50m/min | |
Working table height | 920mm | |
Servo motor power | Lock hole X axis | 1.1Kw |
Lock hole Y axis | 1.1Kw | |
Lock hole Z axis | 1.5Kw | |
Lock slot motor power | 6Kw 9000rpm | |
Lock step motor power | 1.1Kw 12000rpm | |
Air pressure | 0.6MPa | |
Total power | 10.8Kw | |
Weight | 2500kg | |
Overall size | 4200*2300*1500mm | |

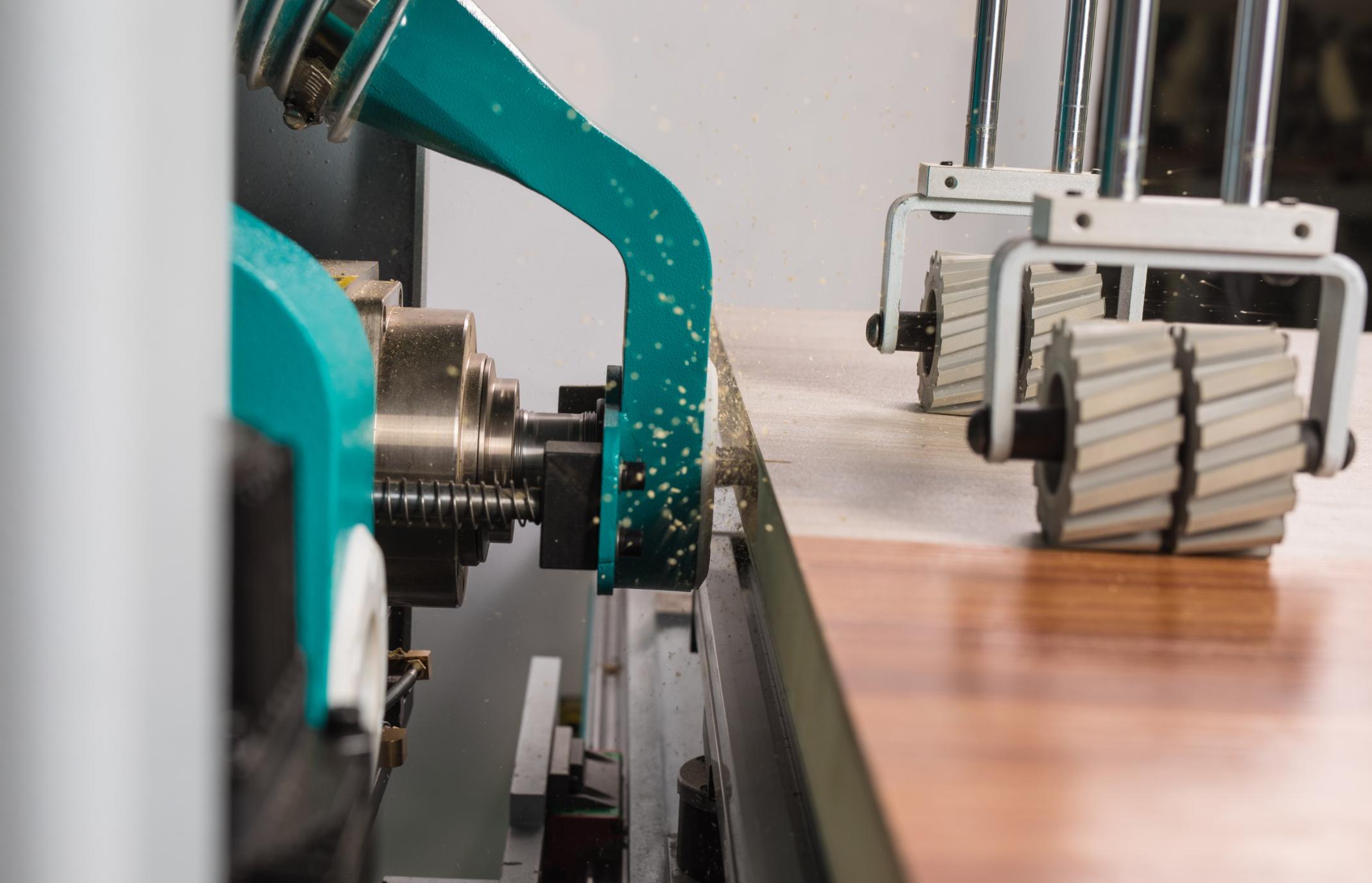

Main function： · Fully servo controlled, ball screw drive, accurate size; absolute value servo can automatically return to the zero position, fast response, high work efficiency. · Complete the processing of the lock groove and lock step of the door leaf in one positioning, avoid positioning errors caused by multi-process processing, and improve processing accuracy · Automatic positioning, the magnetic scale automatically measures the length and thickness of the wooden door · Pass-through automatic feeding and discharging realize assembly line operation.
| ||
Product name | MXK6202T CNC key hole & hinge processing machine | |
| ||
Working length | 1800～2500mm | |
Working width | 450～1100mm | |
Working thickness | 20～55mm | |
Fastest idle speed | 50m/min | |
Working table height | 920mm | |
Servo motor power | Lock hole X axis | 1.5Kw |
Lock hole Y axis | 1.1Kw | |
Lock hole Z axis | 1.1Kw | |
Hinge X axis | 1.5Kw | |
Hinge Y axis | 1.1Kw | |
Hinge Z axis | 1.1Kw | |
A axis | 2KW | |
Lock hole（vertical）motor I | 3.7kW 12000rpm | |
Loch hole（vertical）motor II | 1.1kW 12000rpm | |
Hinge motor power | 3.7Kw 12000rpm | |
Drilling motor | 1.1Kw 12000rpm | |
Air pressure | 0.6MPa | |
Total power | 27.8Kw | |
Weight | 3500kg | |
Overall size | 4200*2300*1500mm | |
