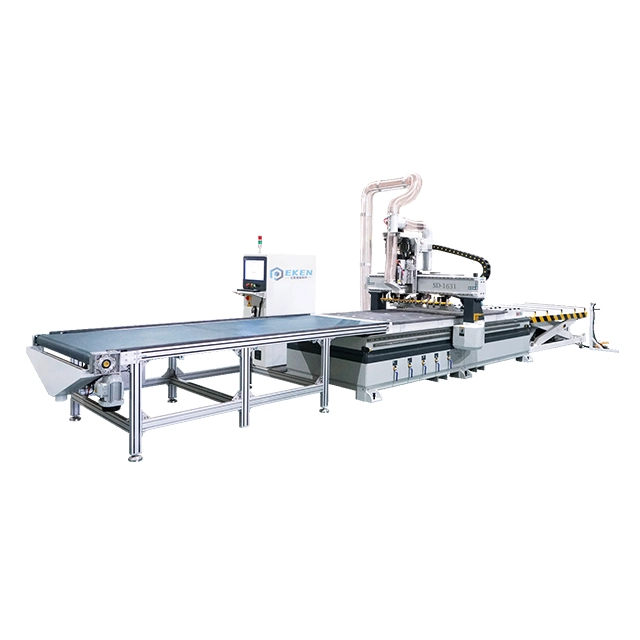

Linear ATC CNC Router Machine SD-1631 with loading and unloading
Know More Features & Specifications>>
Feature
Technical Specifications
|
Machine Specifications |
|||
|
Effective working area |
X=1600mm |
Y=3100mm |
Z=200mm |
|
Body Structure |
Heavy Duty Body Structure(5mm body,8mm for gantry) |
||
|
Table structure |
Vacuum suction table with T slot +7.5kw air pump |
||
|
Guide Rail |
30mm Taiwan PMI Square Rail |
||
|
Driving Method |
Helical gear rack transmission |
||
|
Transmission type |
X,Y Rack and opinion, Z Ball Screw(3210) |
||
|
Motors and Drivers |
850W Japan Yaskawa Servo Motor and Driver |
||
|
Reducer |
Japan Shimpo Reducer(VRSF-5.10C-750-LM) |
||
|
Position cylinder |
5 sets Air Positioning Cylinder |
||
|
Spindle power |
Italy HSD ES951 8-9.6KW Air Cooling Spindle, ISO 30 Tool Holders |
||
|
Drill block |
Italy HSD 5+4 drill |
||
|
Spindle speed |
0-24000RPM |
||
|
Max air move speed |
60000mm/min |
||
|
Max working speed |
35000mm/min |
||
|
Machining accuracy |
<0.1mm |
||
|
Automatic Tool Change Position |
16pcs |
||
|
Tool Capacity |
Linear |
||
|
Inverter |
11kw Delta Inverter(VFD110B23A) |
||
|
Control system |
Taiwan Province Syntec 6MA Control System |
||
|
Auto Load&Unload |
YES |
||
|
Compatible Software |
haixun |
||
|
Command code |
G code |
||
|
Cabling/relays/switches |
Cable with shielded wires labeled,Scheider Switch and Electric Parts |
||
|
E-stops |
1set on Control System,2set on side of Gantry |
||
|
Voltage |
380V 60Hz, 3 phase |
||
|
Auto Lubrication System |
Automatic |
||
|
Air Positioning Cylinder |
Yes |
||
|
Tool Sensor |
Yes |
||
|
All components are grounded |
Yes |
||
|
Technical Support |
Lifetime by phone, skype, video chat, video, in factory, email, and it is CNC purchasers choice of which communication type to use. |
||
|
Spare Parts |
16 pcs Tool Collect |
||
Application
1.Furniture: plate-type furniture,wood furniture,office furniture,cabinet,wood doors and windows.
2.Wood: Musical instruments,speakers,game cabinets,computer tesk,electrical counter top.
3.Panel processing: Insulation,plastic parts,PCB,balling track,inner body of car, Resistance special plate,epoxyresin,ABS,PP,PE and other carbide mixed compounds.
4.Decoration industry: Acrylic,PVC,MDF,organic glass,plastic,soft metal such as copper and aluminium plate engraving processing.
