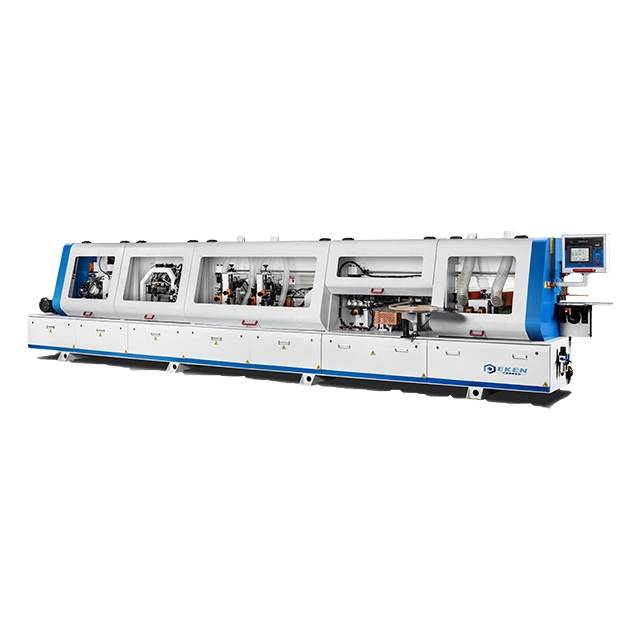

MDZ515 A/B Automatic Edge Banding Machine

Know More Features & Specifications>>

Feature

Main characteristic:
The edge banding materials include PVC, Melamine and thin batten etc.
The high-speed CNC control system automatic monitoring and displaying the whole processes on the touch screen, such as malfunction.
High-power and speed motors with high-quality knives doubles the work.
Advanced frame of product and powerful functions combination, easily use and adjust.
The Humanity Operating system include frequency-conversion feeding, crossbeam up-and-down by electromotion, full-close safety shield.
High feeding speed and excellent trimming effectiveness result in high yield during massive production.



Technical Specifications

Technical parameter:

Model

MDZ515A

MDZ515B

Panel width

≥80mm

≥80mm

Panel thickness

8-50mm

8-50mm

Edge thickness

0.4-3mm

0.4-3mm

Feed speed

12-20m/min

12-20m/min

Power

18.14KW

16.54KW

Pneumatic power

≥6Kg/cm2

≥6Kg/cm2

Overall size

8180X770X1590mm

7580X770X1590mm

Application

FAQ

FAQ

Can choose other model of edge banding machine ?
yes , we can do as your requiry functions
