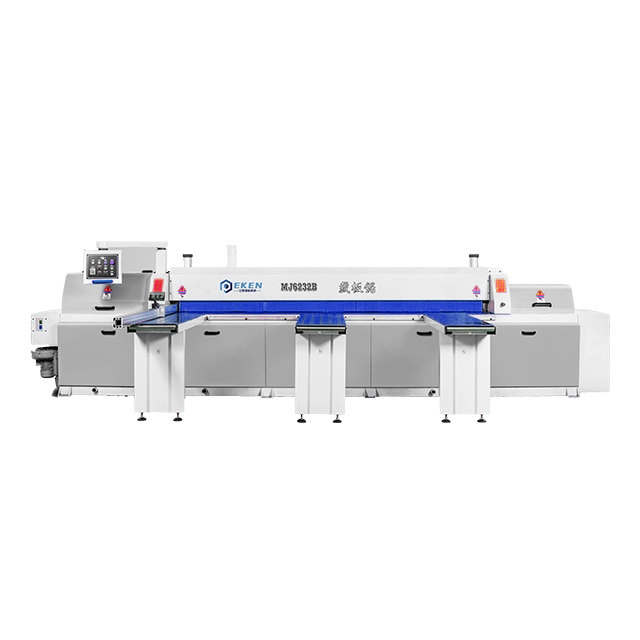

MJ6232B Reciprocating Panel Saw

Know More Features & Specifications>>

Feature

Main Characteristic
The back baffle groove on worktable is easy for picking up the work piece, while cutting the long & narrow panel crosswise;
The half cutting, save the processing time;
Double speed saw unit driving motor enhances the efficient and effectiveness.

Technical Specifications

Technical Parameter

Model

MJ6232B

MJ6225B

Max cutting size

3250mm

2550mm

Max cutting thickness

75mm

75mm

Max cutting speed

16-20-24m/min

16-20-24m/min

Power

14KW 380V 50HZ

14KW 380V 50HZ

Air pneumatic pressure

0.6-0.8MPa

0.6-0.8MPa

Size

5930X4100X1630mm

5230X4100X1630mm

Weight

3500Kg

3000Kg

Application

FAQ

FAQ

what size of computer beam saw do you have?
we have 2.8m, 3.3m and 3.8m three size.
