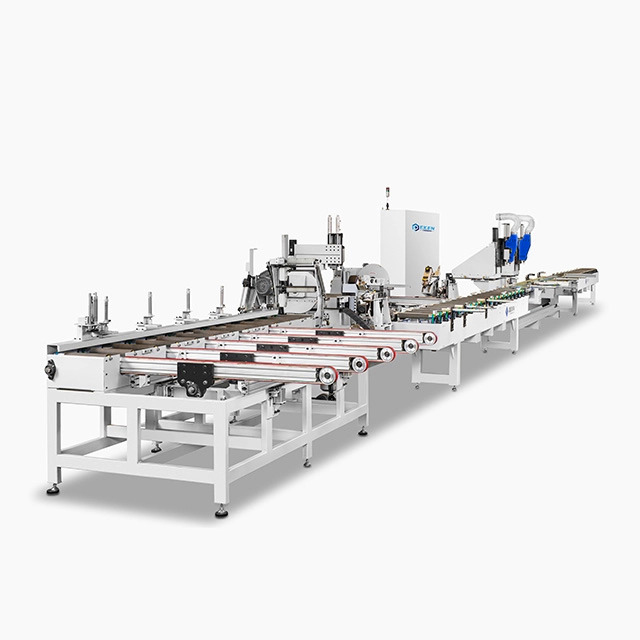

MJK743 Door Jamb Cutting And Milling Production Line
Know More Features & Specifications>>
Feature
·The Germany BECKHOFF control system is used to quickly program the processing plan and personalized design supported.
·Absolute encoder servo motor and ball screw used in the independent NC, which providing the precisely milling and shaping.

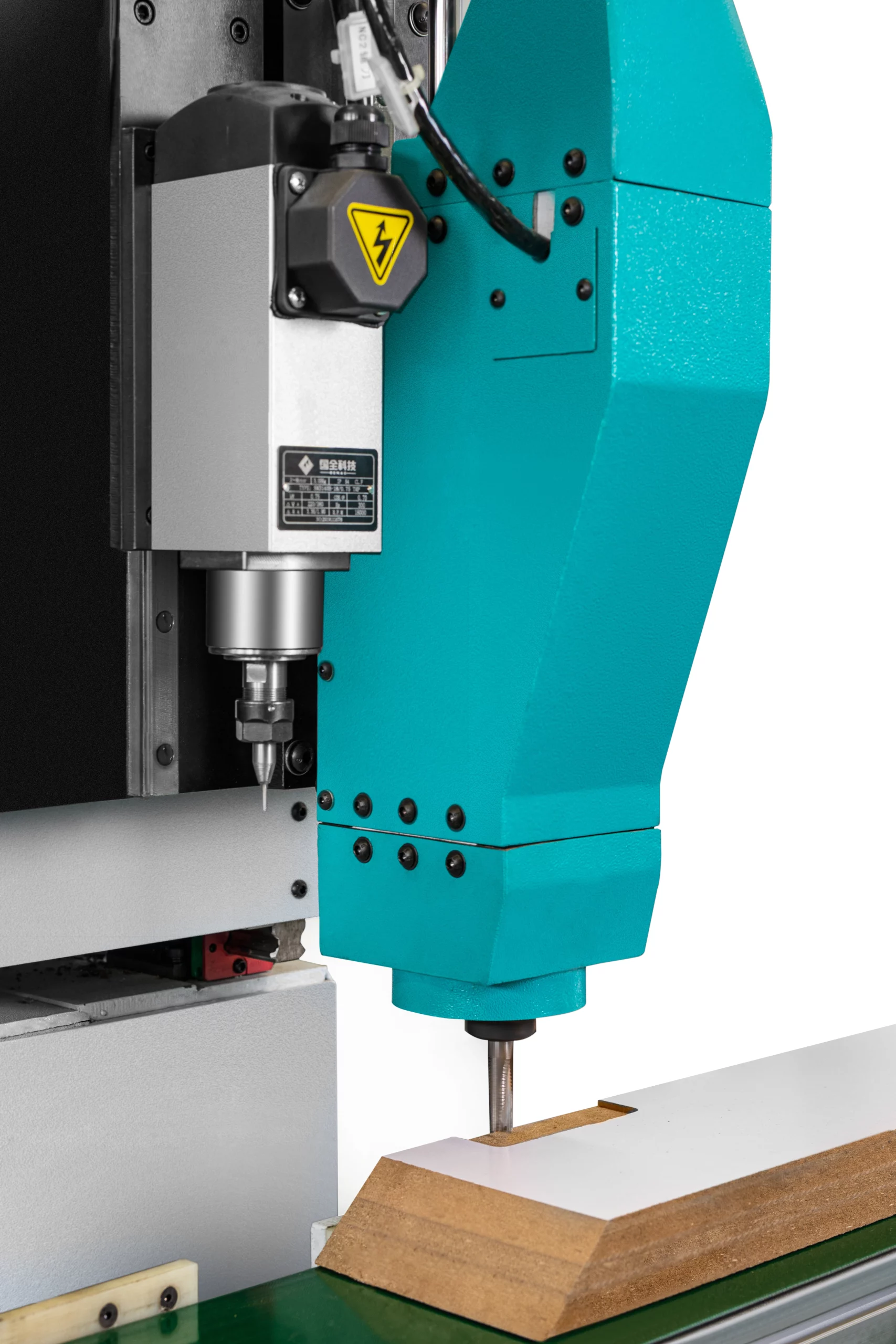

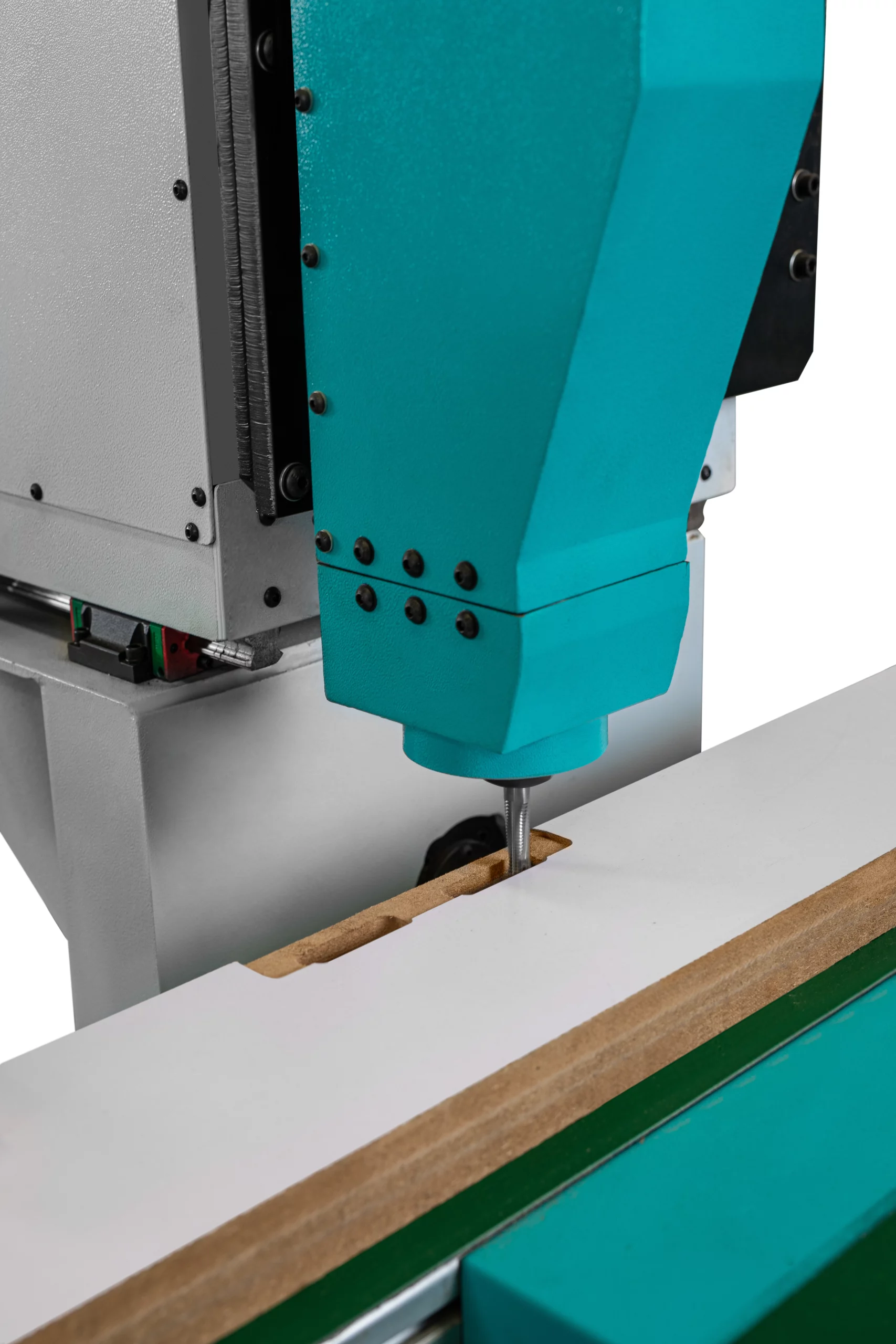

Door frame two ends can be cut and mill at the same time, as well as the two hinge holes.Both ends can be 90° and 45°or two of the 45°. Machining one of the holes while milling, more efficient.
Technical Specifications
|
Max.Processing length |
2500mm |
|
depth |
300mm |
|
machining depth |
800mm |
|
Max. processing thickness |
50mm |
|
Max. Milling Speed |
30m/min |
|
Max. Drilling Depth |
50mm |
|
Max. Milling Cutter Dia. |
400mm*2 |
|
Shaft diameter |
11mm |
|
diameter |
3mm |
|
Max. Drilling bit Dia. |
≤12mm |
|
Spindle revolving speed |
≤12000rpm |
|
Motor Power |
3KW*2 |
|
Milling Motor Power |
1.8KW * 3 |
|
Motor Power |
0.75*3 |
|
Drilling Motor Power |
2.2KW*4 |
|
Total Power |
26.68KW |
|
Dust Vacuum Dia. |
100mm*5 |
|
Weightof machine |
4800Kg |
|
Machine size |
18000*3200*2100 |
