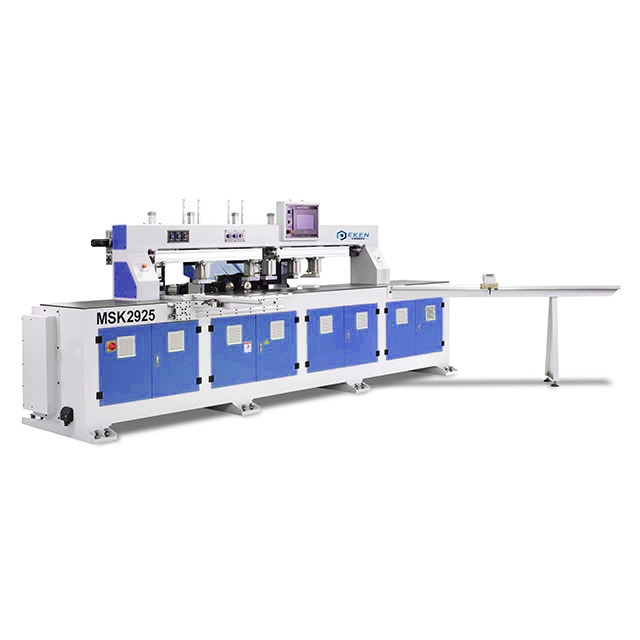

MSK2925 CNC Four Axis Tenon& Mortising Machining Center
Know More Features & Specifications>>
Feature
The long workpiece with multi-mortising can be completed at one process, to avoiding the size error caused by multiple positioning;
User friendly operation interface with simple and accurate parameter setting.

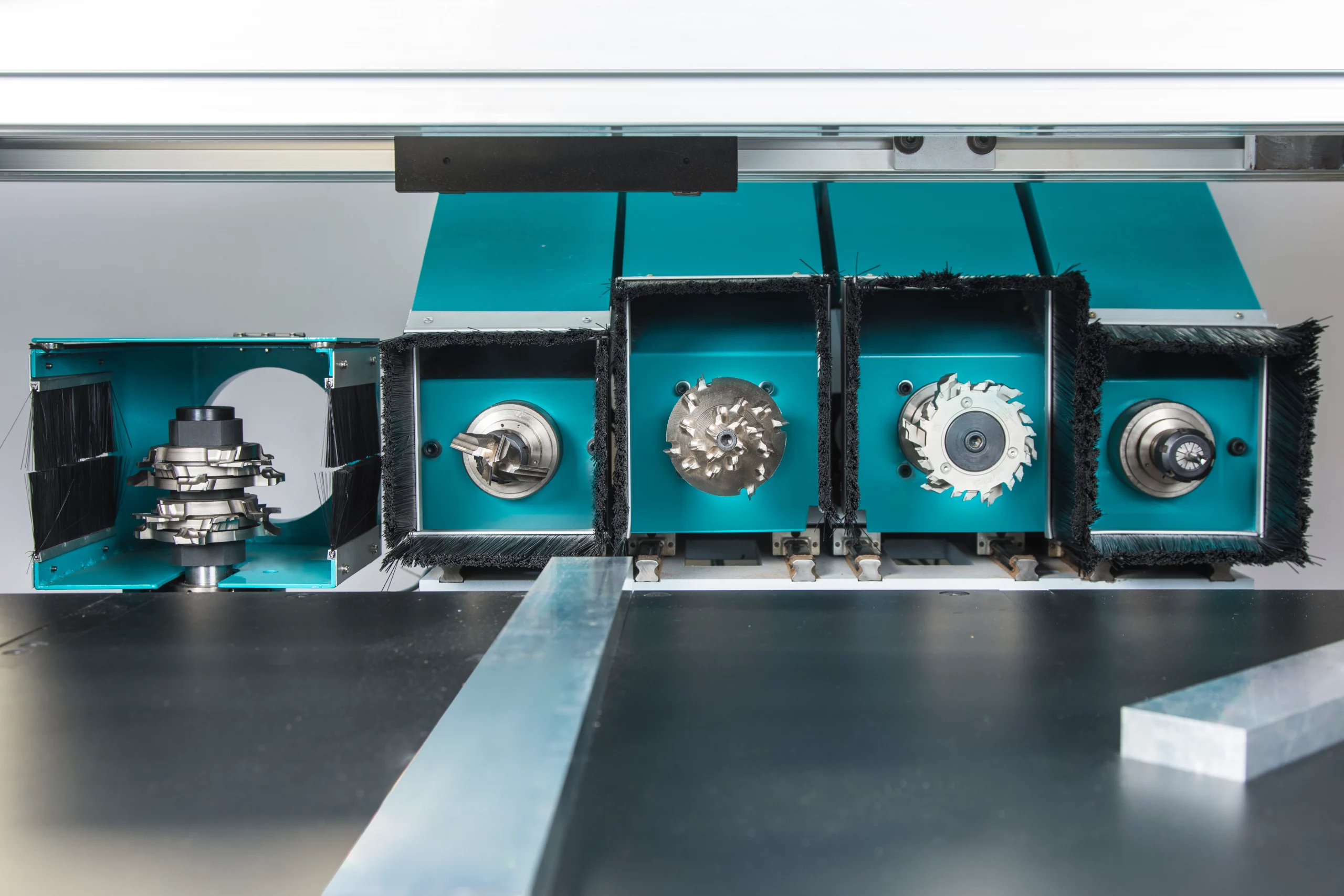

Multi-working position provides the possibility of multipleTenon application.
Outstandingprecisely performance，flexible topology and simple configuration characterize EtherCAT (Ethernet for control automation technology), the real-time Ethernet technology from Germany BECHHOFF.
Absolute encoder servo motor and ball screw used in the independent NC, which providing the precisely mortise and tenon processing.
Technical Specifications
Technical parameters
|
Tenon depth |
10-30mm |
|
Max. processing thickness |
80mm |
|
Max. Processing length |
2500mm |
|
Fence degree |
45°/90° |
|
Milling cutter max. outer dia. |
130mm |
|
Milling cutter aperture |
30mm |
|
Pre-milling cutter |
Φ60×90° |
|
Drill bit dia. |
3-16mm |
|
Drill bit turn speed |
9000/12000/18000 |
|
Milling spindle power |
2×3.7Kw |
|
Main milling spindle power |
2×5.5Kw |
|
Total power |
24 Kw |
|
Current |
AC380V 50Hz three phase four wires |
|
pneumatic pressure |
0.4～0.8MPa |
|
Suction inlet dia. |
150mm |
|
Max. Overall size |
4300×1600×1880 |
|
Machine weight |
2600kg |

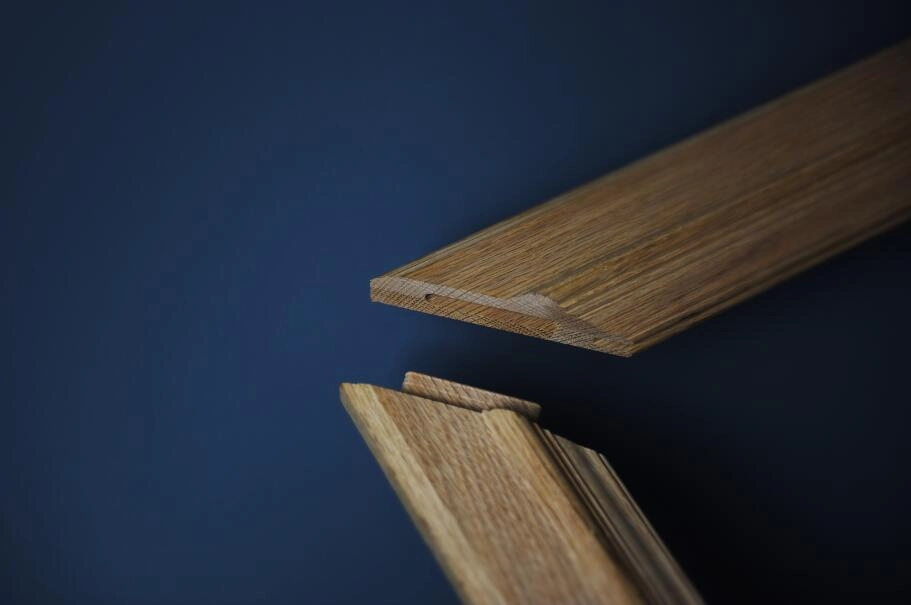

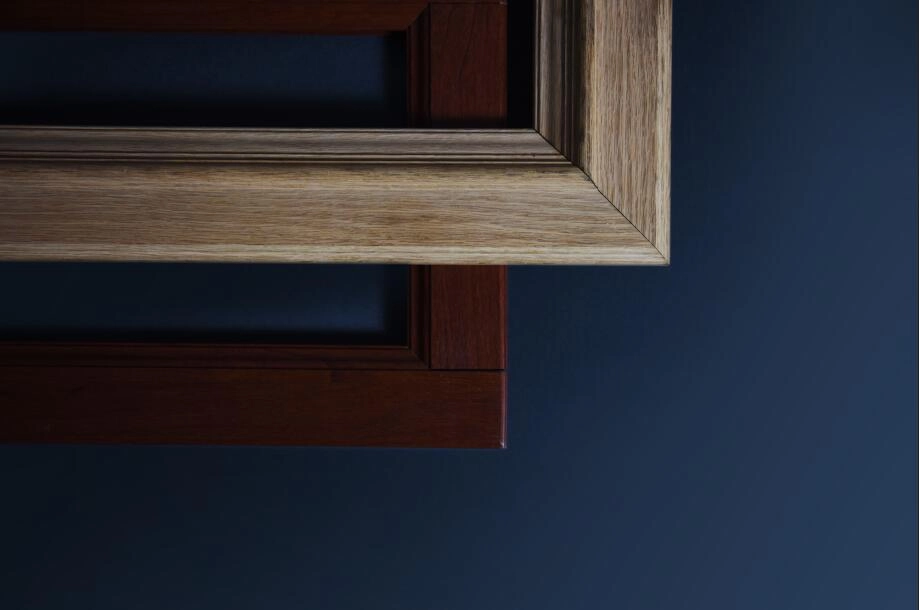

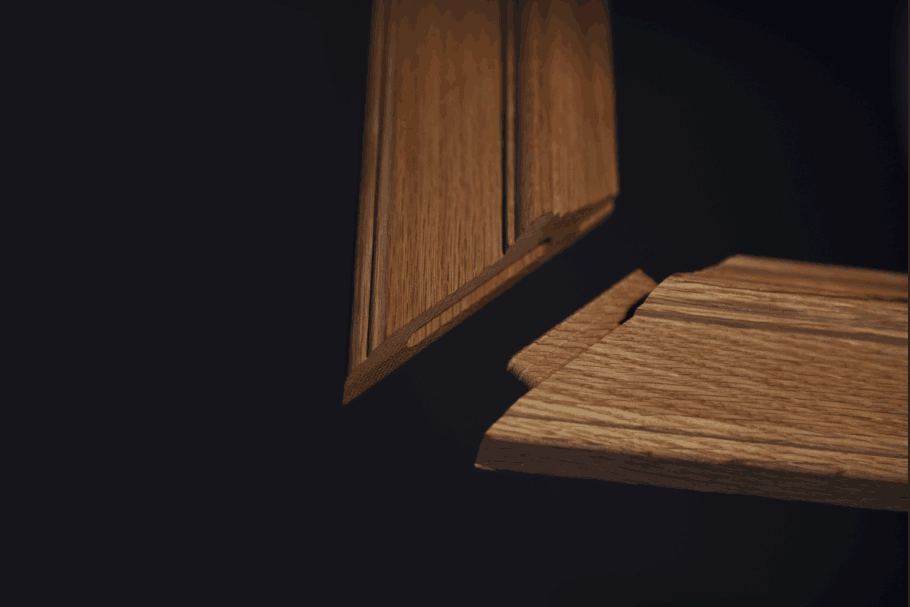

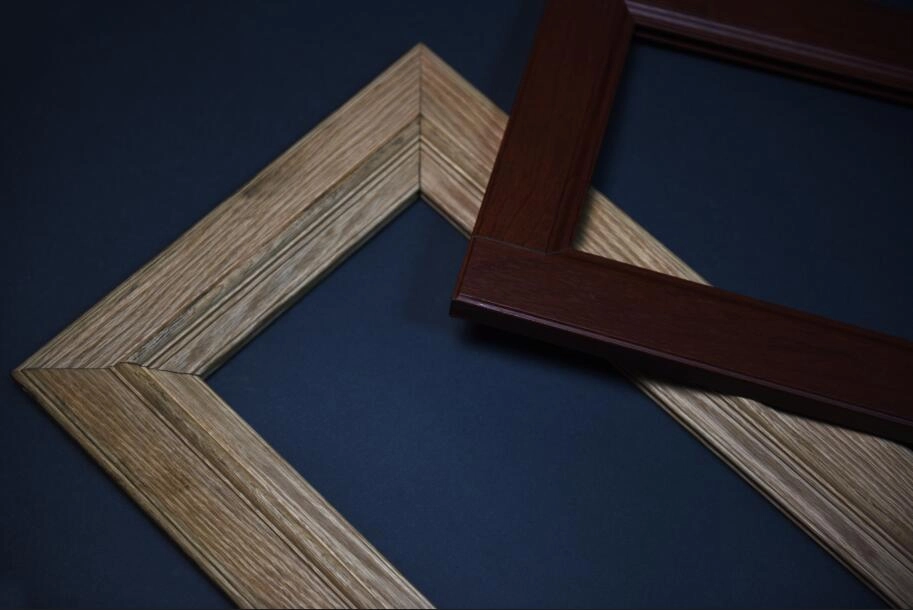

Application
