Feature
Main features：

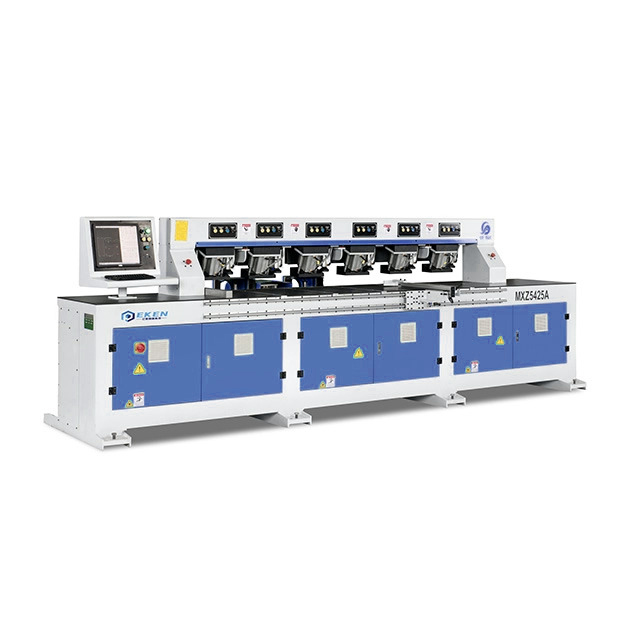

Outstanding precisely performance, simple configuration characterize EtherCAT (Ethernet for control automation technology), the real-time Ethernet technology from Germany BECHHOFF. The CAD/CAM application makes the customized door milling more simple and high efficiency.

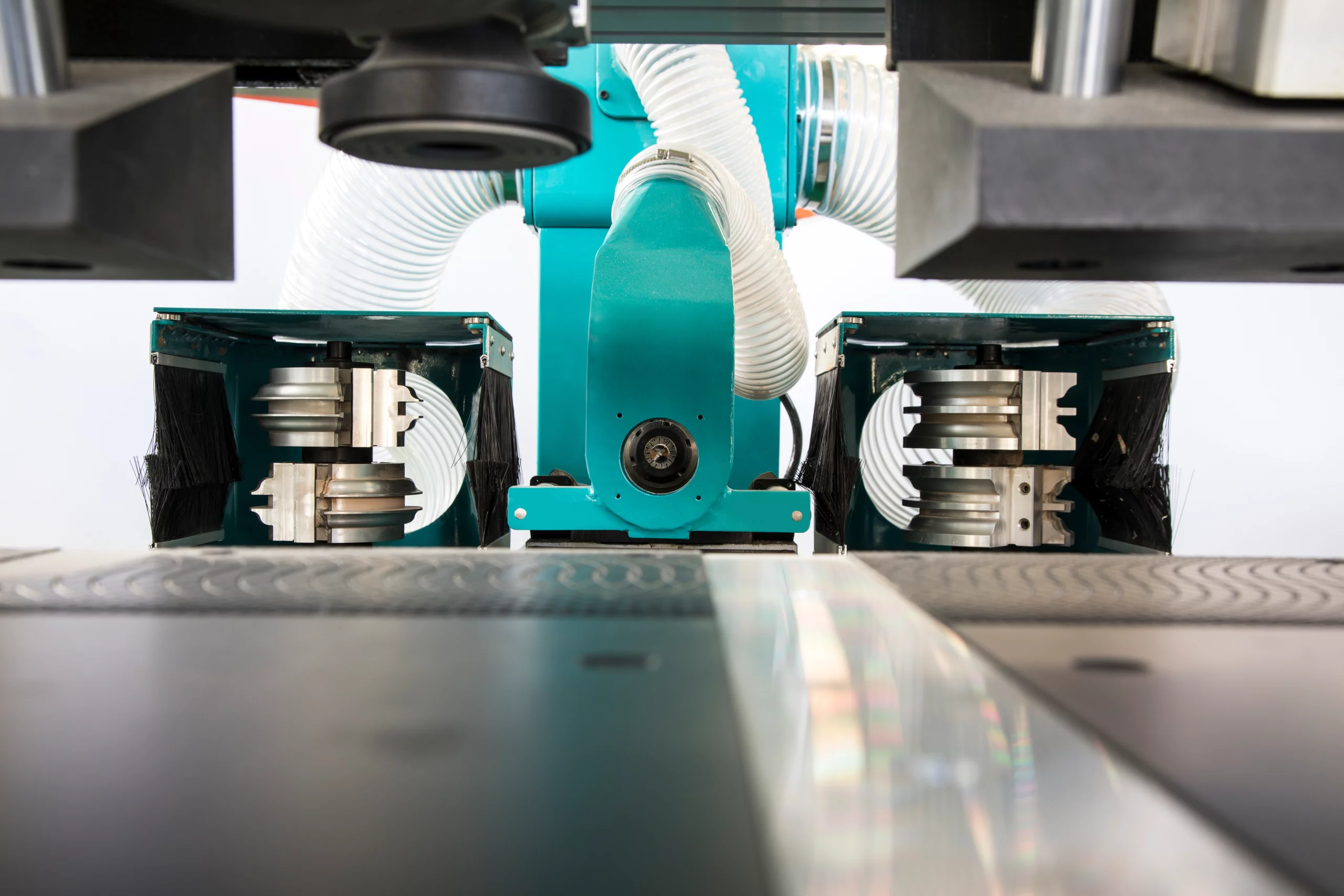

Absolute encoder servo motor and ball screw used in the independent NC, which providing the precisely milling and shaping.

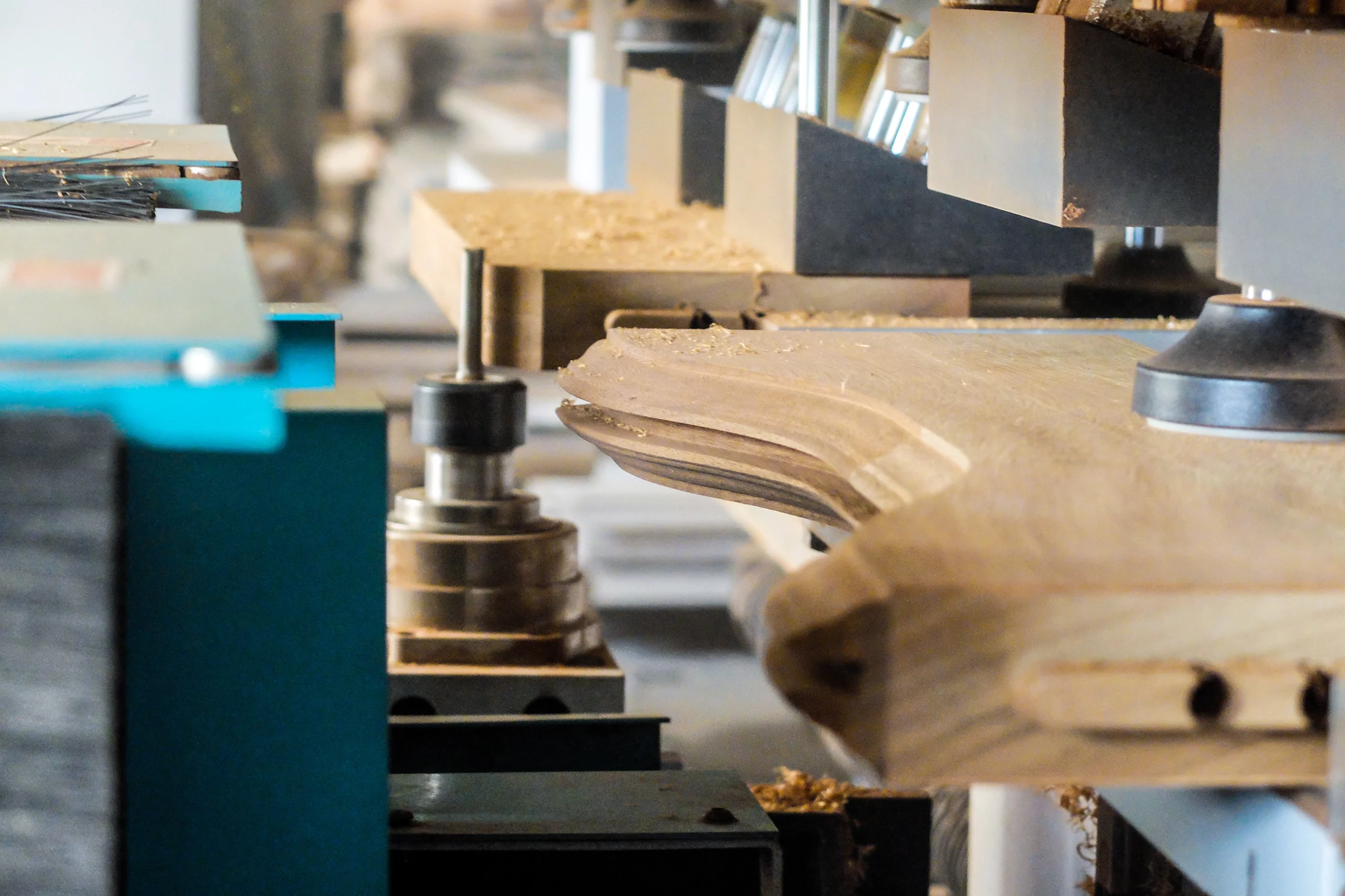

Powerful function and wide processing range with the raised panel,rail witharc,cope &stick’s stile milling and drilling.
Workpiece is measured by magnetic railing rulerfor milling tool calibration; also system is able to supportmultiple work position processing.
Technical Specifications
|
Max.Processing length |
2500mm |
|
Max. processing thickness |
60mm |
|
Max. Milling Speed |
30m/min |
|
Max. Drilling Depth |
80mm |
|
Max.Arc machining depth |
140mm |
|
Shaft diameter |
35mm |
|
Max. Milling Cutter Dia. |
200mm |
|
Max. Drilling bit Dia. |
≤16mm |
|
Spindle revolving speed |
≤12000rpm |
|
Total Power |
35.2KW |
|
Grooving Motor Power |
5.5KW |
|
Milling Motor Power |
10KW * 2 |
|
Drilling Motor Power |
3.7KW |
|
Dust Vacuum Dia. |
150mm |
|
Weightof machine |
3800Kg |
|
|
4500*1800*1500 |
Machine sizeApplication
