Feature
Features：

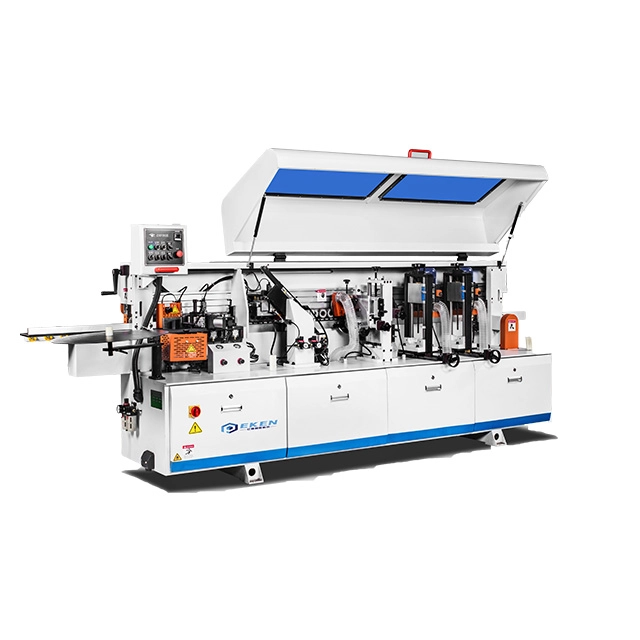

1.function：pre-milling+edge press+belt cut+end cut+fine trimming+scrapper+buffing. ZHF202F add pre-milling and scrapping device, effectively removing the broken edge and bevel angle edge. Bettered the edge trimming performance.Suitable for pvc,melamine and thin batten edge band work.
Technical Specifications
Parameter：
|
Panel length |
≥120mm |
|
Panel width |
≥60mm |
|
Panel thickness |
10-50mm |
|
Belt thickness |
1-3mm |
|
Feeding speed |
10mm/min |
|
Input voltage |
380V-50HZ |
|
Pneumatic pressure |
0.6MPa |
|
Total power |
7.6Kw |
|
Suction inlet dia. |
100mm |
|
Machine size |
4600x800x1450mm |
|
Machine weight |
1900Kg |
Application
FAQ
FAQ
What is the edge banding machine return line speed ?
it can match the max speed of the edge banding machine
