Feature
Main function:

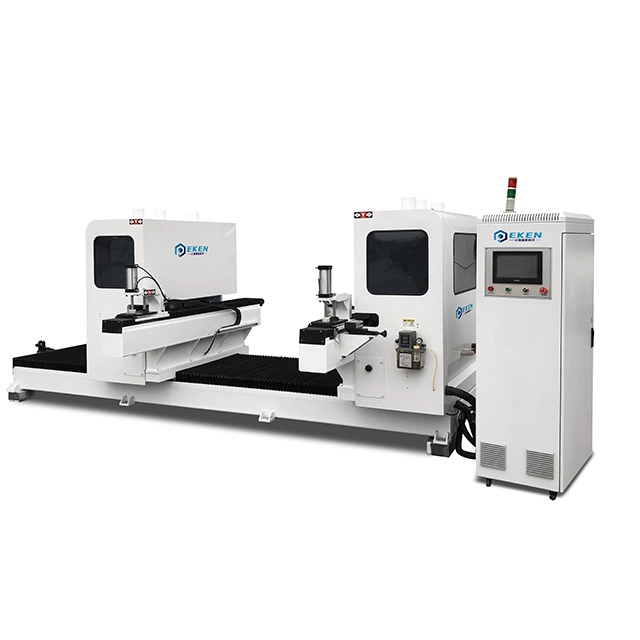

Wooden door frame processing machine. Reciprocating processing mode, fixed width, cutting angle, sawing can be adjusted 45º. Suitable for composite door, paint-free door frame, high production.
Technical Specifications
| No. | Specification | Specification | Mark |
| 1 | Maximum working length | 2800mm | |
| 2 | Minimum working length | 680mm | |
| 3 | Workpiece width range | 0-600mm | |
| 4 | Workpiece thickness range | 15-60mm | |
| 5 | Feeding speed | 3-15m/min | Variable frequency speed regulation |
| 6 | Fixed width servo motor power | 1.2kw | Servo control |
| 7 | Fixed length servo motor power | 0.75kw*2 | Servo control |

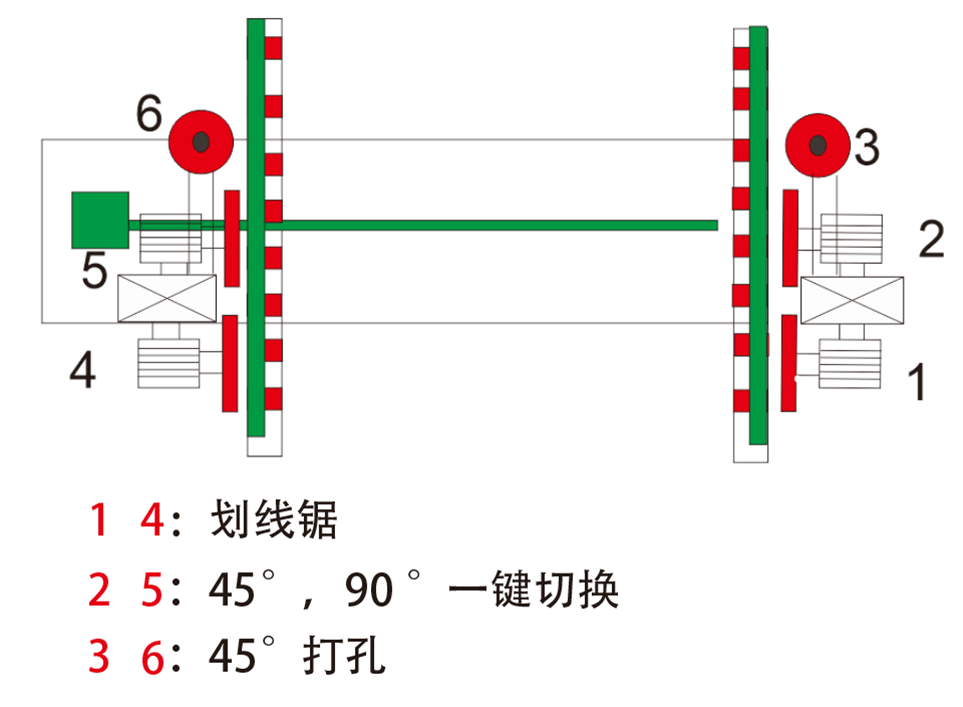

| 8 | Scoring Saw motor power | NO.1 and 4 0.75kw | |
| 9 | Saw blade motor power | NO.2 and No.5 2.2kw | |
| 10 | Punching motor power | NO.3 and No.6 1.5kw | |
| 11 | Spindle speed | 2800r/min | |
| 12 | Total motor power | 10.1kw | |
| 13 | Saw blade size (outside diameter) | NO.2 and 5φ350*30*3.5*80TP | |
| NO.1 and 4φ110*30*2.0*20 | |||
| 14 | Diameter of the suction port | 100mm*4 | |
| 15 | Power | 400v/60hz three phase | |
| 16 | Touch screen system | XINJE | |
| 17 | Machine size | 4500*2200*1700mm | |
| 18 | Weight | 1800kg |

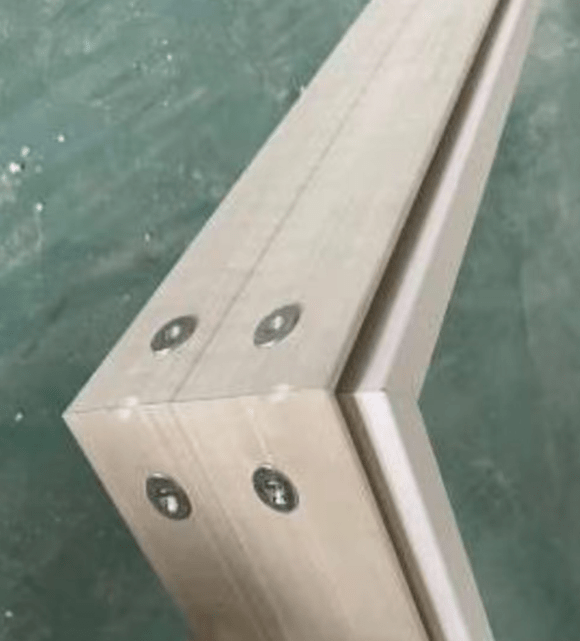

Application
FAQ
FAQ
How to test machine before delivery?
Machines testing running over 8 hours, and sending testing videos.
Do you provide turnkey project?
Turnkey projects are available. We can help you to start a new company from zero to one. We have lots of projects here locally. Pls contact with our foreign team.
