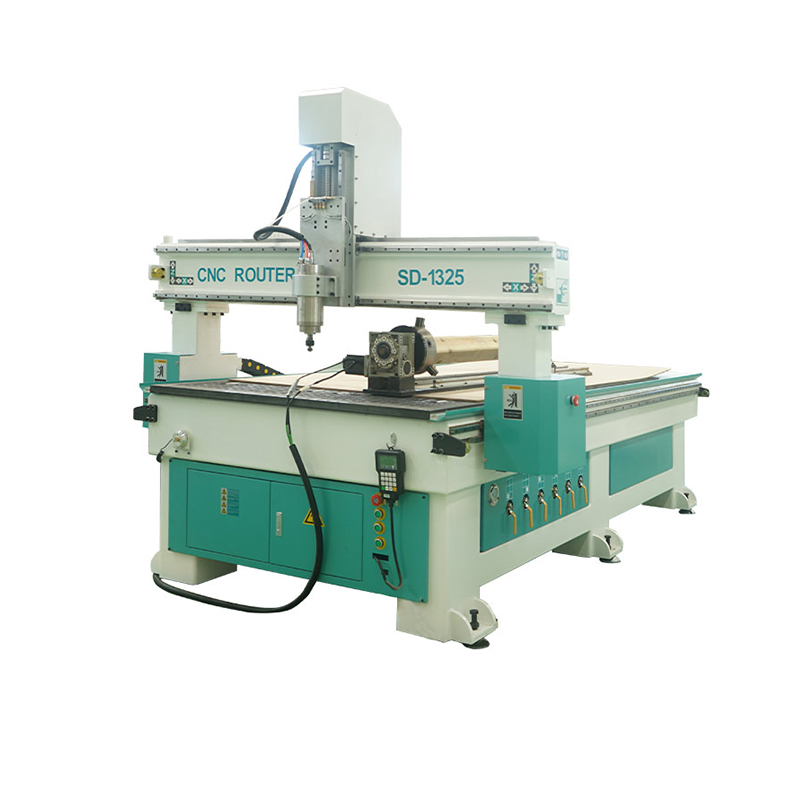

SD-1325
EKEN
| Availability: | |
|---|---|
Application Field
1.Furniture: plate-type furniture,wood furniture,office furniture,cabinet,wood doors and windows.
2.Wood: Musical instruments,speakers,game cabinets,computer tesk,electrical counter top.
3.Panel processing: Insulation,plastic parts,PCB,balling track,inner body of car, Resistance special plate,epoxyresin,ABS,PP,PE and other carbide mixed compounds.
4.Decoration industry: Acrylic,PVC,MDF,organic glass,plastic,soft metal such as copper and aluminium plate engraving processing.
Machine Specifications | |||
Effective working area | X=1300mm | Y=2500mm | Z=200mm |
Body Structure | 5mm Steel Pipe Welded,8mm Steel Pipe Welded | ||
Table structure | Vacuum Suction Table | ||
Guide Rail | 25mm Taiwan PMI Square orbit | ||
Driving Method | Helical gear rack transmission | ||
Transmission type | X,Y Rack and opinion, Z Ball Screw | ||
Motors and Drivers | Delta servo motor and driver 750W | ||
Spindle power | 6kw Italy HSD air Cooling Spindle | ||
Spindle speed | 0-24000RPM | ||
Mist Cooling System | NO | ||
Cleaning system | 5.5kw Double Bags dust collector | ||
Vacuum Pump | 7.5KW China air Vacuum Pump | ||
Max air move speed | 60000mm/min | ||
Max working speed | 35000mm/min | ||
Machining accuracy | <0.1mm | ||
Inverter | Delta Inverter | ||
Control system | NK105 Handle | ||
Compatible Software | Type3/Ucancam V10/Coreldraw/Auto CAD and other CAM/CAD softwares | ||
Command code | G code | ||
Voltage | 380V 50/60Hz, 3 phase | ||
Reducer | Japan Shimpo reducer | ||
Air Positioning Cylinder | Yes | ||
Cabling/relays/switches | Cable with shielded wires labeled,Omron Switch and Siemens Electric Parts | ||
Tool Sensor | Yes | ||
All components are grounded | Yes | ||
Technical Support | Lifetime by phone, skype, video chat, video, in factory, email, and it is CNC purchasers choice of which communication type to use. Technical Documents, Manuals, Software, etc is ENGLISH spelling and format. | ||
Spare Parts | 6 pcs Tool Collect Different size Wrench One box of Wood Tool One Box of Acrylic Tool | ||
