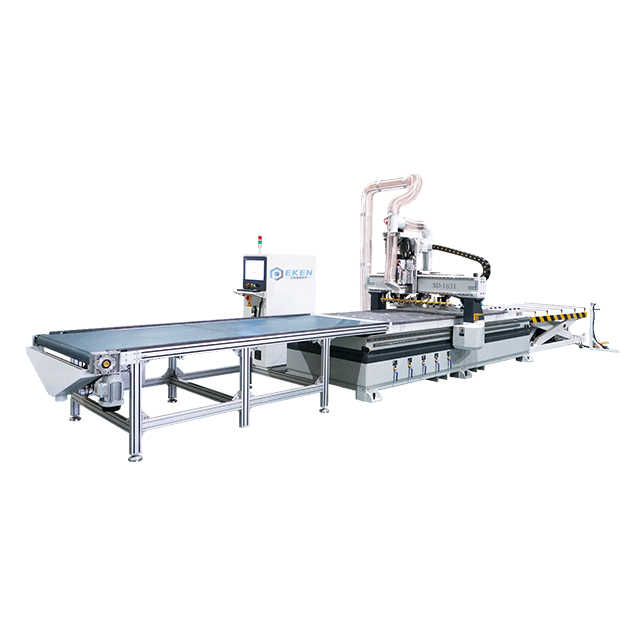

SD-1631
Eken
| Availability: | |
|---|---|
Application Field
1.Furniture: plate-type furniture,wood furniture,office furniture,cabinet,wood doors and windows.
2.Wood: Musical instruments,speakers,game cabinets,computer tesk,electrical counter top.
3.Panel processing: Insulation,plastic parts,PCB,balling track,inner body of car, Resistance special plate,epoxyresin,ABS,PP,PE and other carbide mixed compounds.
4.Decoration industry: Acrylic,PVC,MDF,organic glass,plastic,soft metal such as copper and aluminium plate engraving processing.
Machine Specifications | |||
Effective working area | X=1600mm | Y=3100mm | Z=200mm |
Body Structure | Heavy Duty Body Structure(5mm body,8mm for gantry) | ||
Table structure | Vacuum suction table with T slot +7.5kw air pump | ||
Guide Rail | 30mm Taiwan PMI Square Rail | ||
Driving Method | Helical gear rack transmission | ||
Transmission type | X,Y Rack and opinion, Z Ball Screw(3210) | ||
Motors and Drivers | 850W Japan Yaskawa Servo Motor and Driver | ||
Reducer | Japan Shimpo Reducer(VRSF-5.10C-750-LM) | ||
Position cylinder | 5 sets Air Positioning Cylinder | ||
Spindle power | Italy HSD ES951 8-9.6KW Air Cooling Spindle, ISO 30 Tool Holders | ||
Drill block | Italy HSD 5+4 drill | ||
Spindle speed | 0-24000RPM | ||
Max air move speed | 60000mm/min | ||
Max working speed | 35000mm/min | ||
Machining accuracy | <0.1mm | ||
Automatic Tool Change Position | 16pcs | ||
Tool Capacity | Linear | ||
Inverter | 11kw Delta Inverter(VFD110B23A) | ||
Control system | Taiwan Province Syntec 6MA Control System | ||
Auto Load&Unload | YES | ||
Compatible Software | haixun | ||
Command code | G code | ||
Cabling/relays/switches | Cable with shielded wires labeled,Scheider Switch and Electric Parts | ||
E-stops | 1set on Control System,2set on side of Gantry | ||
Voltage | 380V 60Hz, 3 phase | ||
Auto Lubrication System | Automatic | ||
Air Positioning Cylinder | Yes | ||
Tool Sensor | Yes | ||
All components are grounded | Yes | ||
Technical Support | Lifetime by phone, skype, video chat, video, in factory, email, and it is CNC purchasers choice of which communication type to use. Technical Documents, Manuals, Software, etc is ENGLISH spelling and format. | ||
Spare Parts | 16 pcs Tool Collect Different size Wrench One box of Wood Tool One Box of Acrylic Tool | ||
