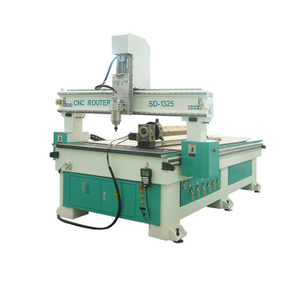

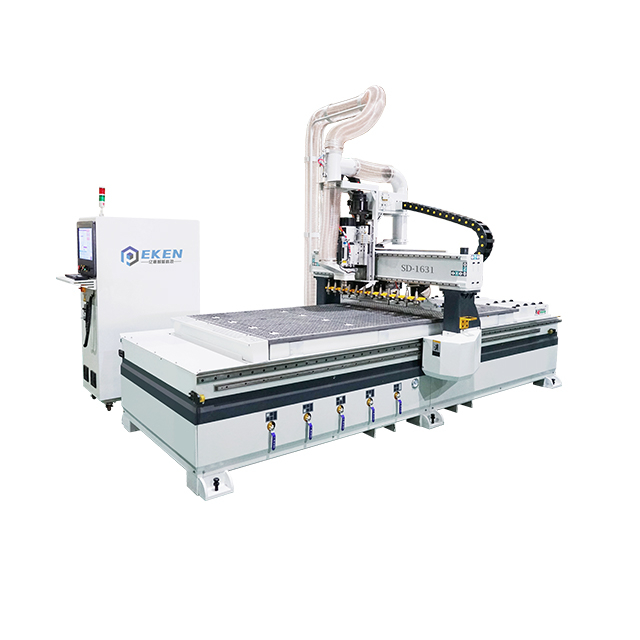

SD-1325CC
Eken
| Availability: | |
|---|---|
Application Field
1.Furniture: plate-type furniture,wood furniture,office furniture,cabinet,wood doors and windows.
2.Wood: Musical instruments,speakers,game cabinets,computer tesk,electrical counter top.
3.Panel processing: Insulation,plastic parts,PCB,balling track,inner body of car, Resistance special plate,epoxyresin,ABS,PP,PE and other carbide mixed compounds.
4.Decoration industry: Acrylic,PVC,MDF,organic glass,plastic,soft metal such as copper and aluminium plate engraving processing.
Machine Specifications | |||
Effective working area | X=1300mm | Y=3100mm | Z=200mm |
Body Structure | Heavy Duty Body Structure(5mm body,8mm for gantry) | ||
Table structure | Vacuum suction table with T slot +7.5kw air pump(two sets) | ||
Guide Rail | 25mm Taiwan Square Rail | ||
Driving Method | Helical gear rack transmission | ||
Transmission type | X,Y Rack and opinion, Z Ball Screw(3210) | ||
Motors and Drivers | 1KW Leadshine Servo Motor and Driver(XYZ) | ||
Reducer | Japan Shimpo Reducer(VRSF-5.10C-750-LM) | ||
Position cylinder | 5 sets Air Positioning Cylinder | ||
Spindle power | China HQD 9kw Air Cooling Spindle, ISO 30 Tool Holders | ||
Spindle speed | 0-24000RPM | ||
Max air move speed | 60000mm/min | ||
Max working speed | 35000mm/min | ||
Machining accuracy | <0.1mm | ||
Automatic Tool Change Position | 12pcs | ||
Tool Capacity | Linear (tools moving with gantry) | ||
Inverter | 11kw Delta Inverter(VFD110B23A) | ||
Control system | Taiwan Province Syntec FC Control System | ||
Compatible Software | Type3/Artcam/Castmate/Coreldraw/Auto CAD and other CAM/CAD softwares | ||
Command code | G code | ||
Cabling/relays/switches | Cable with shielded wires labeled,Scheider Switch and Electric Parts | ||
E-stops | 1set on Control System,2set on side of Gantry | ||
Voltage | 380V 60Hz, 3 phase | ||
Dust collector | 5.5kw | ||
Auto Lubrication System | Automatic | ||
Air Positioning Cylinder | Yes | ||
Tool Sensor | Yes | ||
All components are grounded | Yes | ||
Technical Support | Lifetime by phone, skype, video chat, video, in factory, email, and it is CNC purchasers choice of which communication type to use. Technical Documents, Manuals, Software, etc is ENGLISH spelling and format. | ||
Spare Parts | 12 pcs Tool Collect Different size Wrench One box of Wood Tool 8 pieces cutting tools | ||
