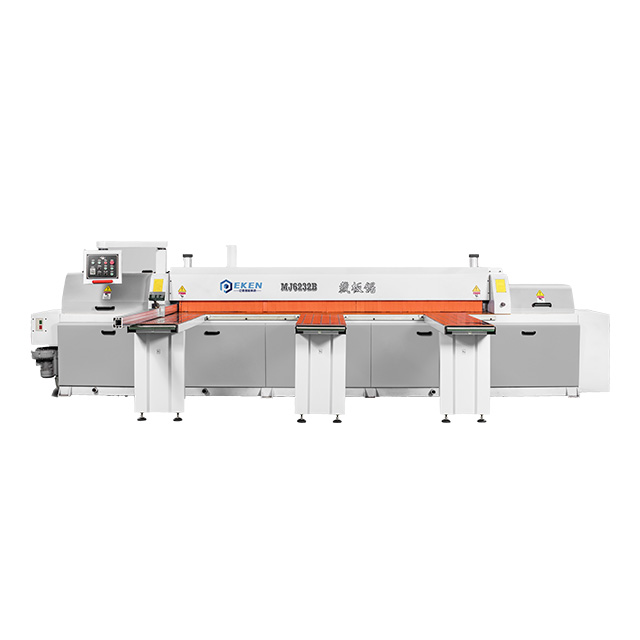

Main Characteristic
The back baffle groove on worktable is easy for picking up the work piece, while cutting the long & narrow panel crosswise;
The half cutting, save the processing time;

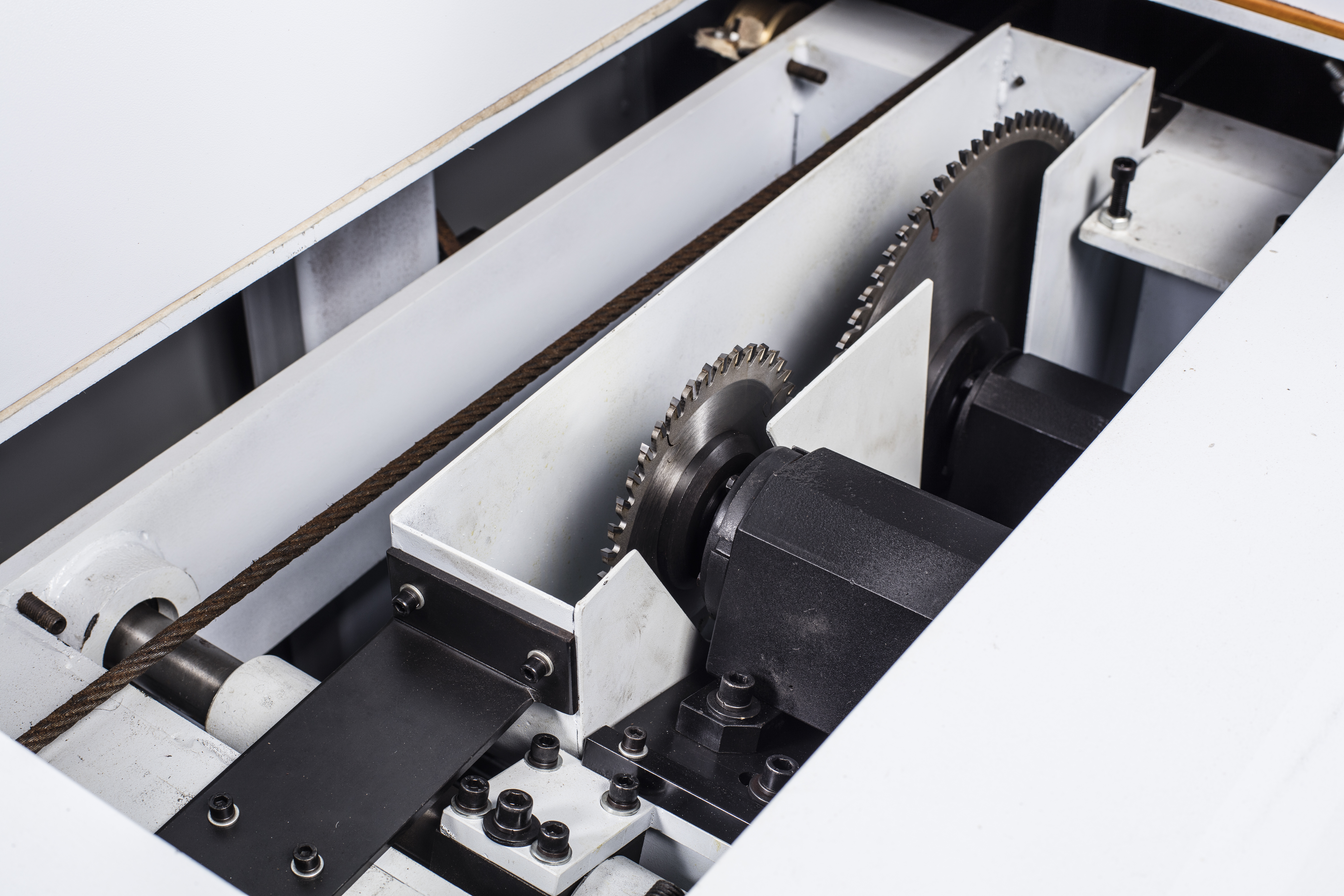

Double speed saw unit driving motor enhances the efficient and effectiveness.
Technical Parameter
Model | MJ6232B | MJ6225B |
Max cutting size | 3250mm | 2550mm |
Max cutting thickness | 75mm | 75mm |
Max cutting speed | 16-20-24m/min | 16-20-24m/min |
Power | 14KW 380V 50HZ | 14KW 380V 50HZ |
Air pneumatic pressure | 0.6-0.8MPa | 0.6-0.8MPa |
Size | 5930X4100X1630mm | 5230X4100X1630mm |
Weight | 3500Kg | 3000Kg |
