Function：

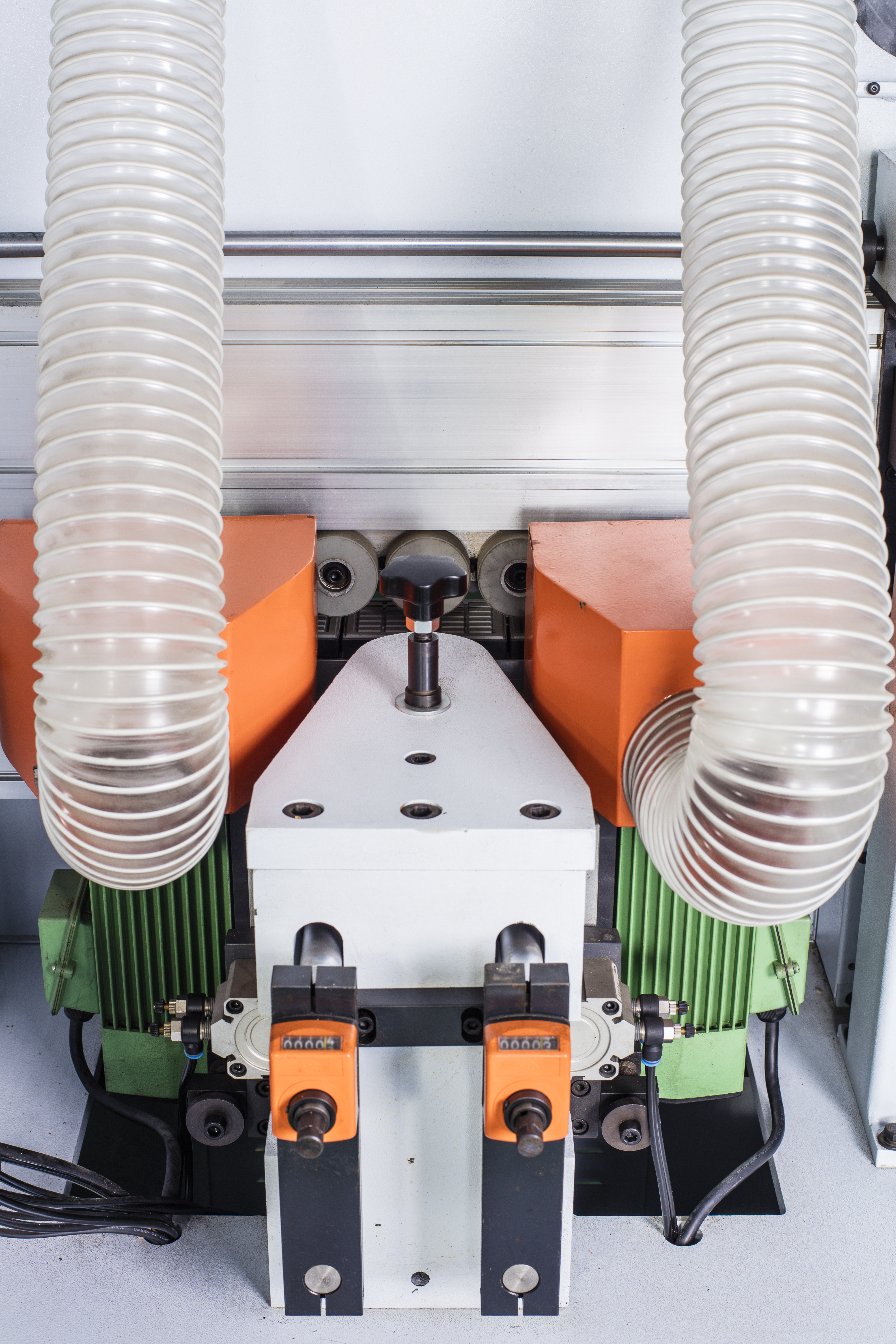

Pre-miling+ Edge press+ Belt cut+ Rail type end cut+ Twice fine trimming+4 motor corner round+Twice scrapper+Twice buffing+ Grooving

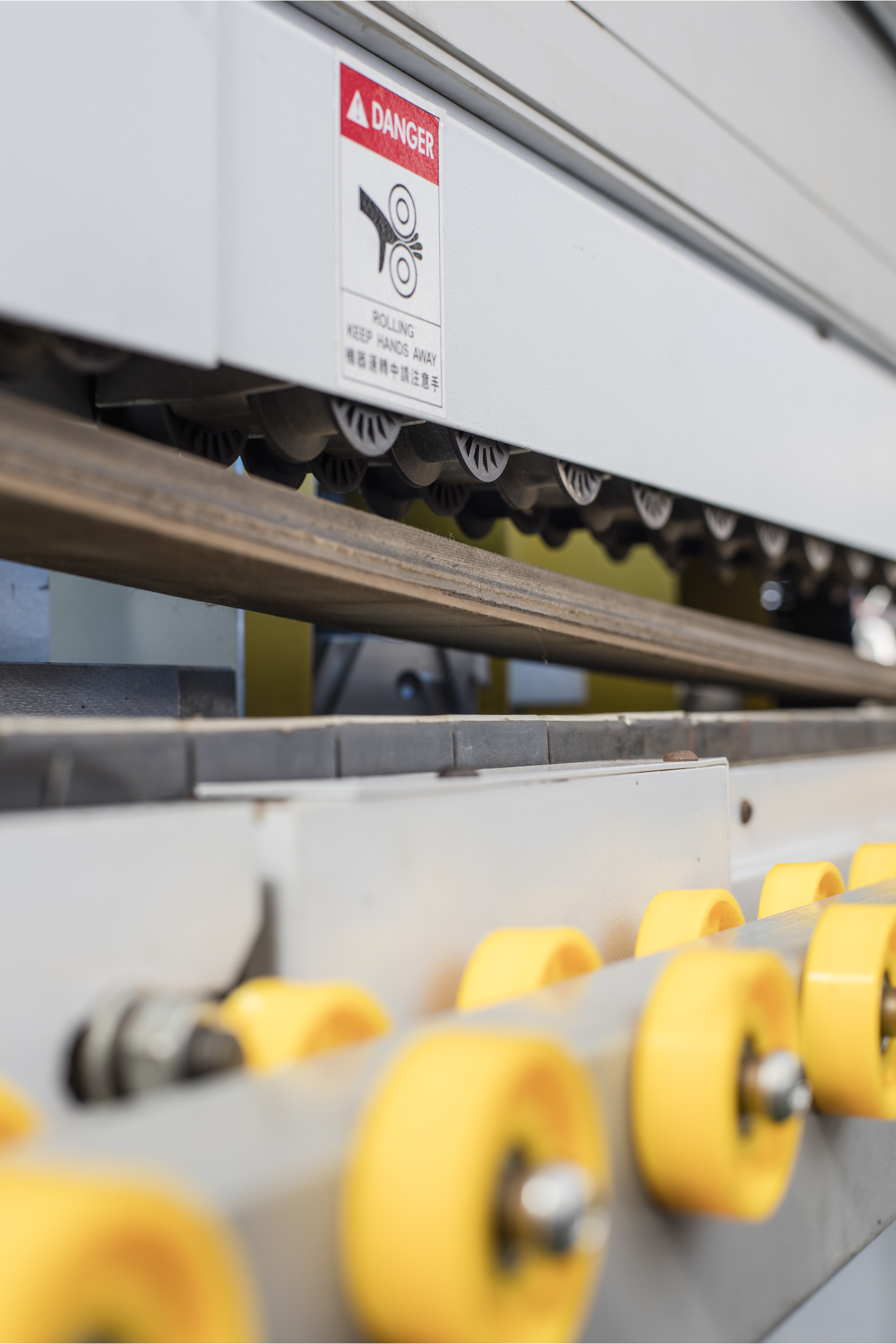

1. Panel pressure adopts power pressed belt can assuring workpiece moving stability and protecting workpiece surface from damage during the high speed transportation.

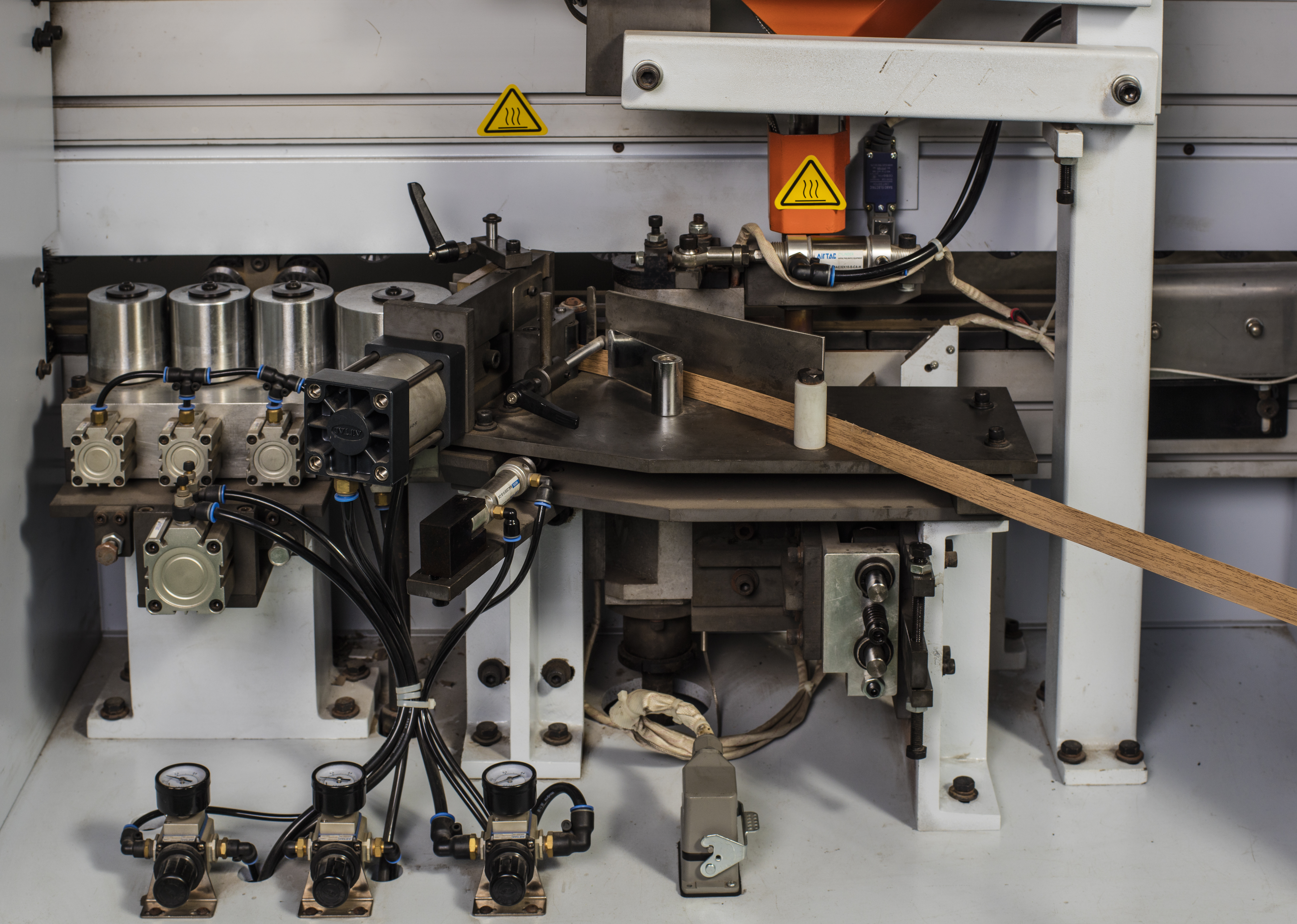

2. The top fixed pre-heating glue pot is special designed to supplying glue in a short time, compared with the conventional bottom fixed glue pot, it shorten the heating and melting glue time.
3. The double rail type end cutting structure is faster and more accurate compared with traditional end cutting

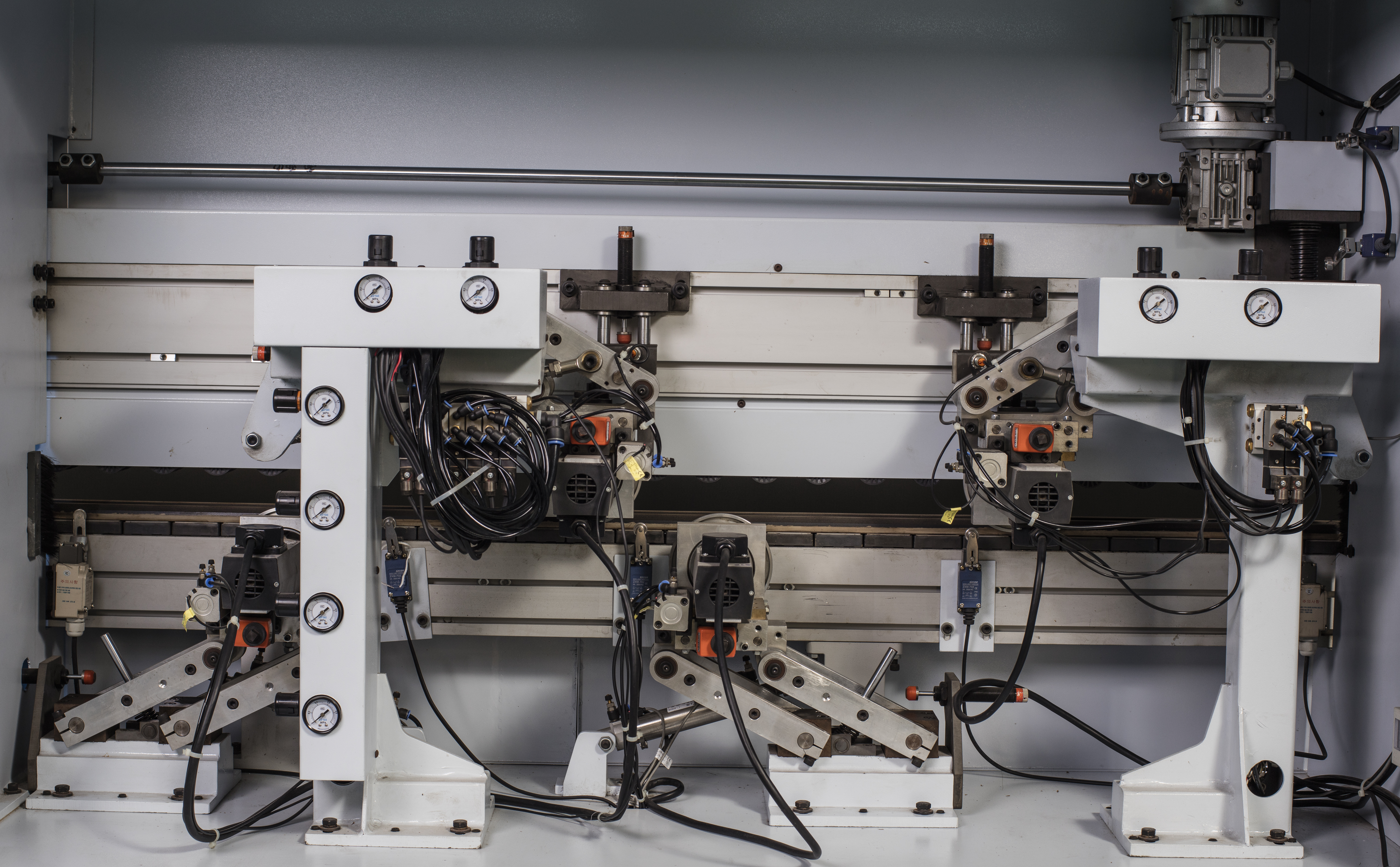

4. The double trimming structure makes the outstanding edge arc.

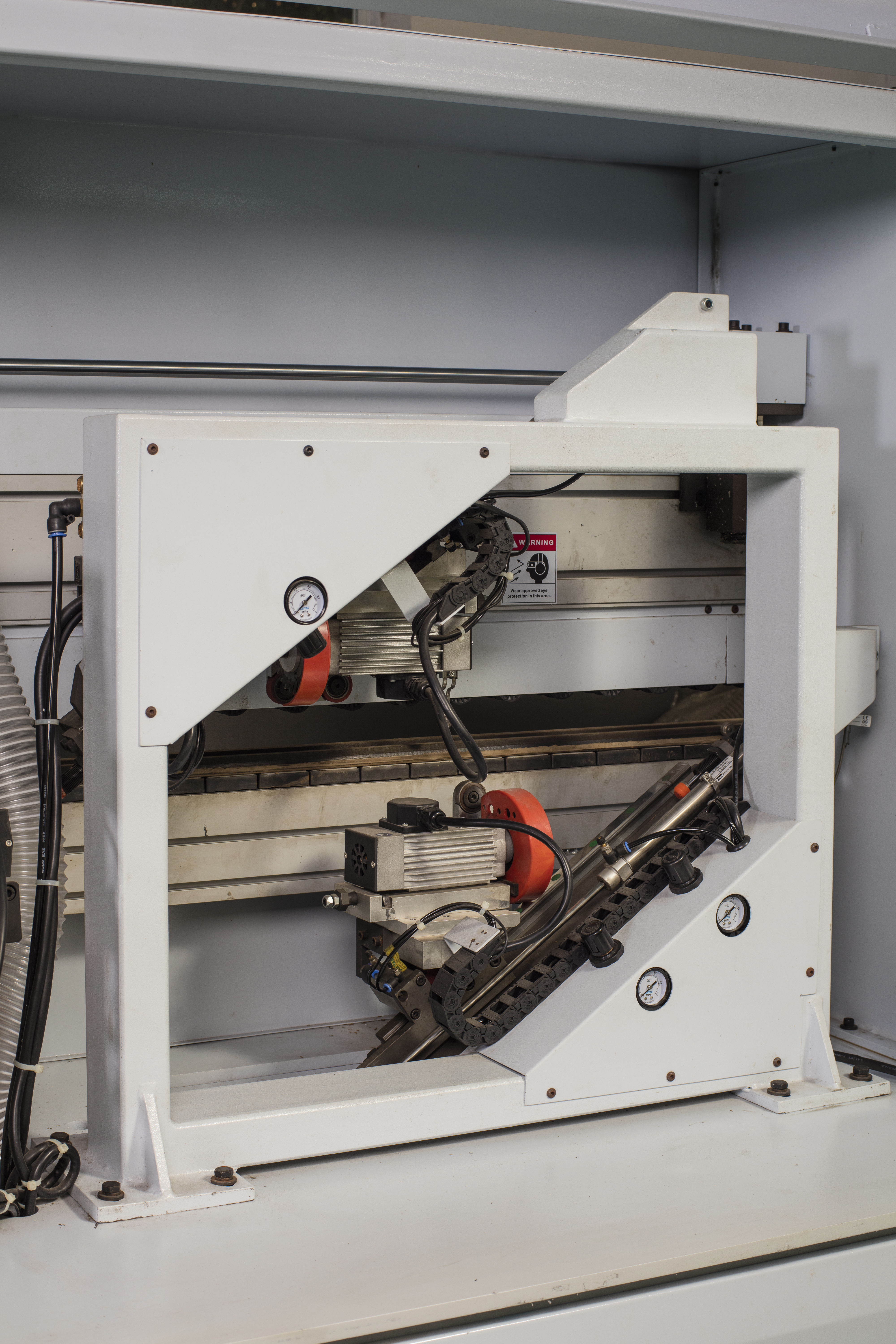

5. The four motor corner rounding structures provide excellent efficiency and stability. Each motor trim one corner.

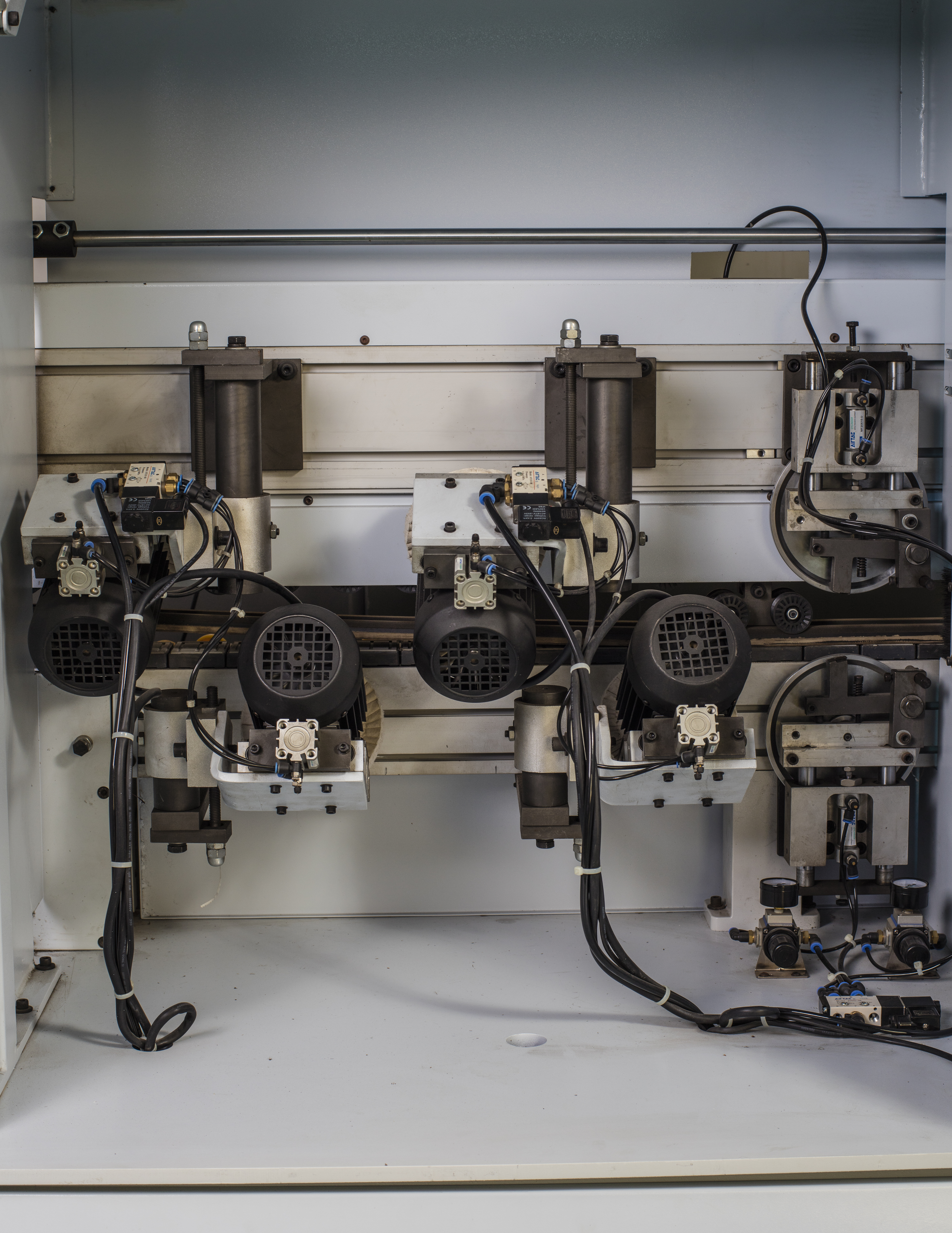

6. The double buffing structure has 4 cylinders driven buffing discs, the arc surface polished evenly throughout the whole process.
7. With all the new designed structure combination, edge banding speed raised more than 1 time.
The grooving unit extend the machines processing range.
Parameter：
Panel width | ≥80mm |
Panel thickness | 10-60mm |
Belt thickness | 0.4-3mm |
Feeding speed | 20-26mm/min |
Pneumatic pressure | 0.6MPa |
Total power | 25.15Kw |
Suction inlet dia. | 100mmx6 |
Machine size | 9900x1800x1800mm |
Machine weight | 5480Kg |
