Product Detail

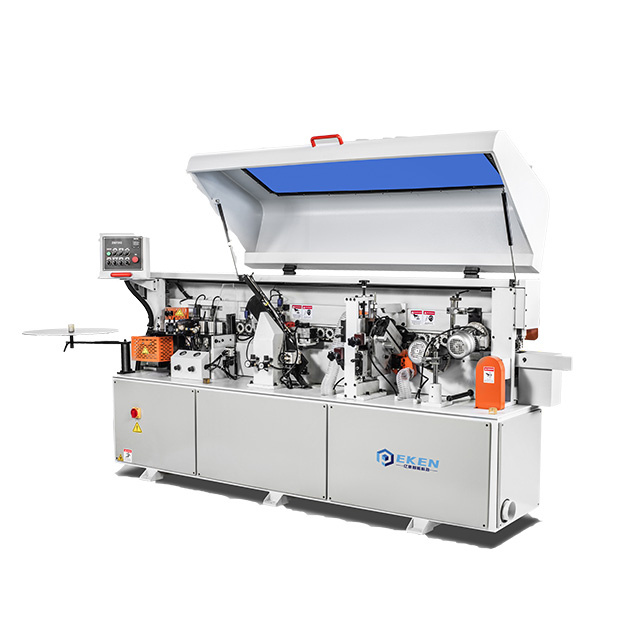

ZHF202B Straight Edge Banding Machine

ZHF202 series of straight line edge banding machine is the entry level economical and compact edge bander, suitable for simple edge banding work

Model:
ZHF202B

Availability:



Inquire

Product Description

Features：

1. function：edge press+belt cut+end cut+fine trim+buffing.it is the most basic configures can provide basic edge banding work, practical and low cost.

2. Suitable for PVC, melamine and thin batten edge band work

Parameter：

Panel length	≥120mm
Panel width	≥60mm
Panel thickness	10-50mm
Belt thickness	1-3mm
Feeding speed	10mm/min
Input voltage	380V-50HZ
Pneumatic pressure	0.6MPa
Total power	4Kw
Suction inlet dia.	100mm
Machine size	3300x800x1450mm
Machine weight	1450Kg
