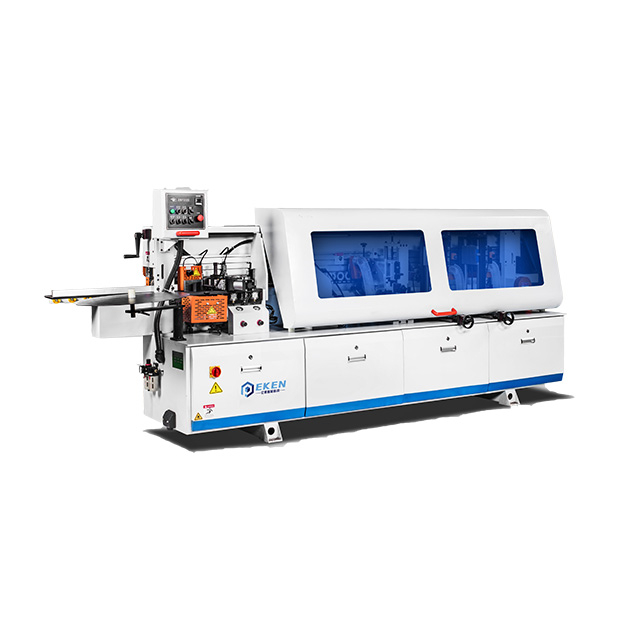

ZHF202E
Features:
1. function：edge press+belt cut+end cut+fine trimming+scrapper+buffing. ZHF202E adds scrapping function. Bettered the edge trimming performance.
2. Suitable for PVC, Melamine and thin batten edge band work
Parameter：
Panel length
≥120mm
Panel width
≥60mm
Panel thickness
10-50mm
Belt thickness
1-3mm
Feeding speed
10mm/min
Input voltage
380V-50HZ
Pneumatic pressure
0.6MPa
Total power
4Kw
Suction inlet dia.
100mm
Machine size
3800x800x1450mm
Machine weight
1600Kg
