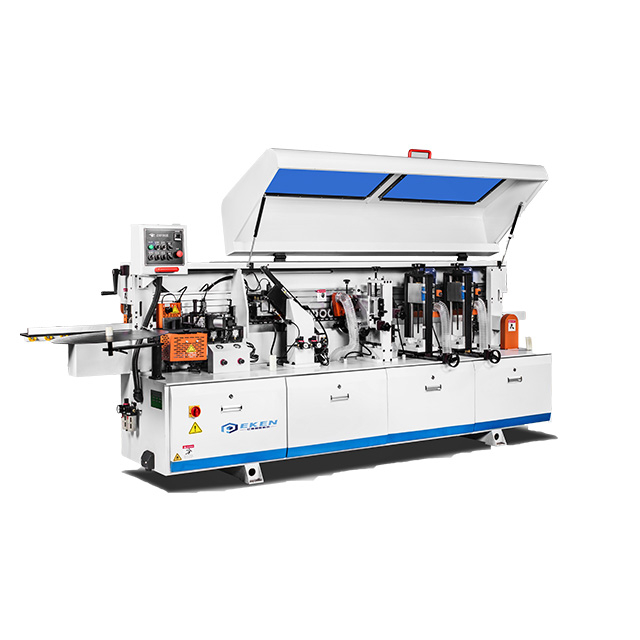

ZHF202F
| Availability: | |
|---|---|
Features：
function：pre-milling+edge press+belt cut+end cut+fine trimming+scrapper+buffing. ZHF202F add pre-milling and scrapping device, effectively removing the broken edge and bevel angle edge. Bettered the edge trimming performance.Suitable for pvc,melamine and thin batten edge band work.
Parameter：
Panel length | ≥120mm |
Panel width | ≥60mm |
Panel thickness | 10-50mm |
Belt thickness | 1-3mm |
Feeding speed | 10mm/min |
Input voltage | 380V-50HZ |
Pneumatic pressure | 0.6MPa |
Total power | 7.6Kw |
Suction inlet dia. | 100mm |
Machine size | 4600x800x1450mm |
Machine weight | 1900Kg |
Features：
function：pre-milling+edge press+belt cut+end cut+fine trimming+scrapper+buffing. ZHF202F add pre-milling and scrapping device, effectively removing the broken edge and bevel angle edge. Bettered the edge trimming performance.Suitable for pvc,melamine and thin batten edge band work.
Parameter：
Panel length | ≥120mm |
Panel width | ≥60mm |
Panel thickness | 10-50mm |
Belt thickness | 1-3mm |
Feeding speed | 10mm/min |
Input voltage | 380V-50HZ |
Pneumatic pressure | 0.6MPa |
Total power | 7.6Kw |
Suction inlet dia. | 100mm |
Machine size | 4600x800x1450mm |
Machine weight | 1900Kg |
