Features：

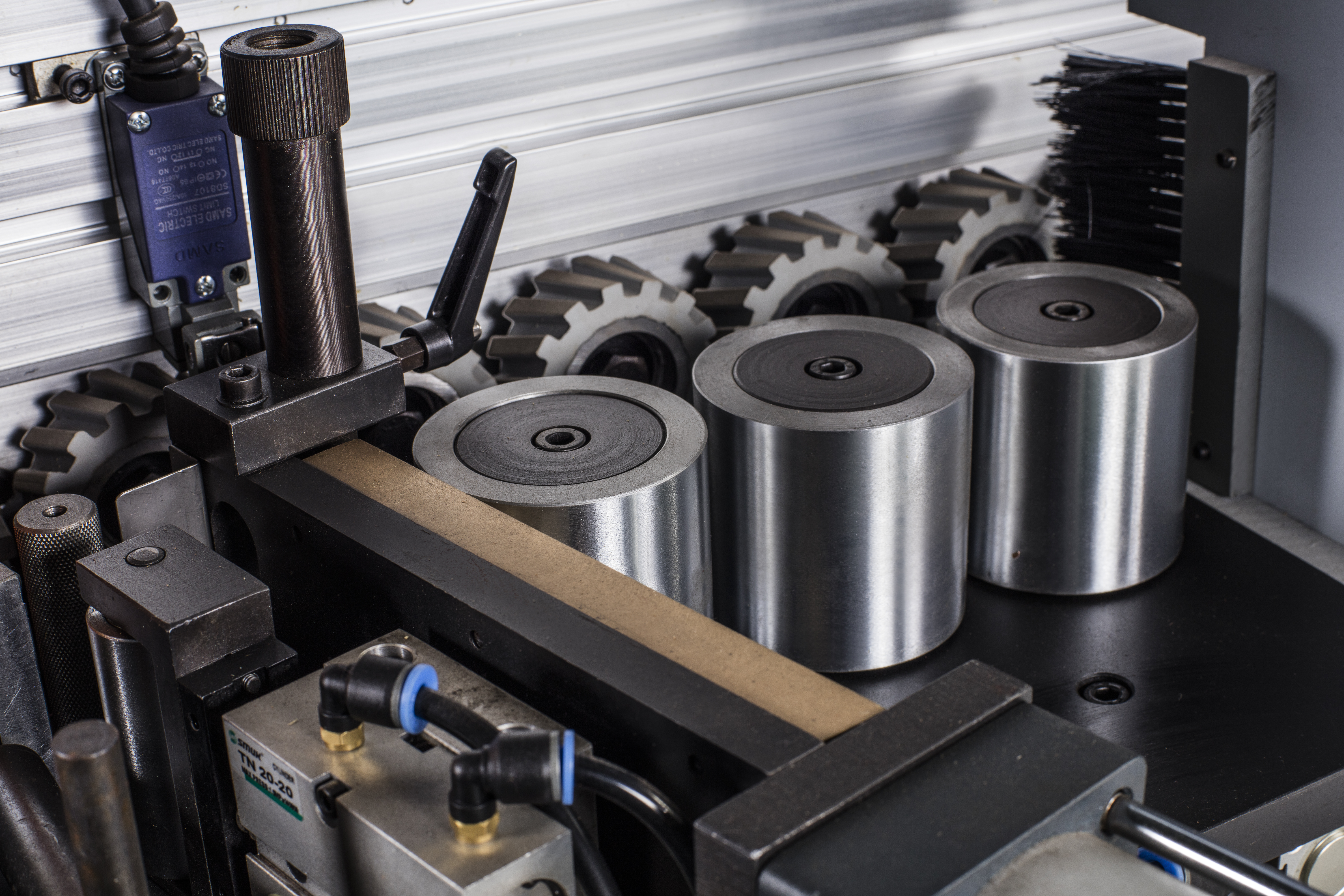

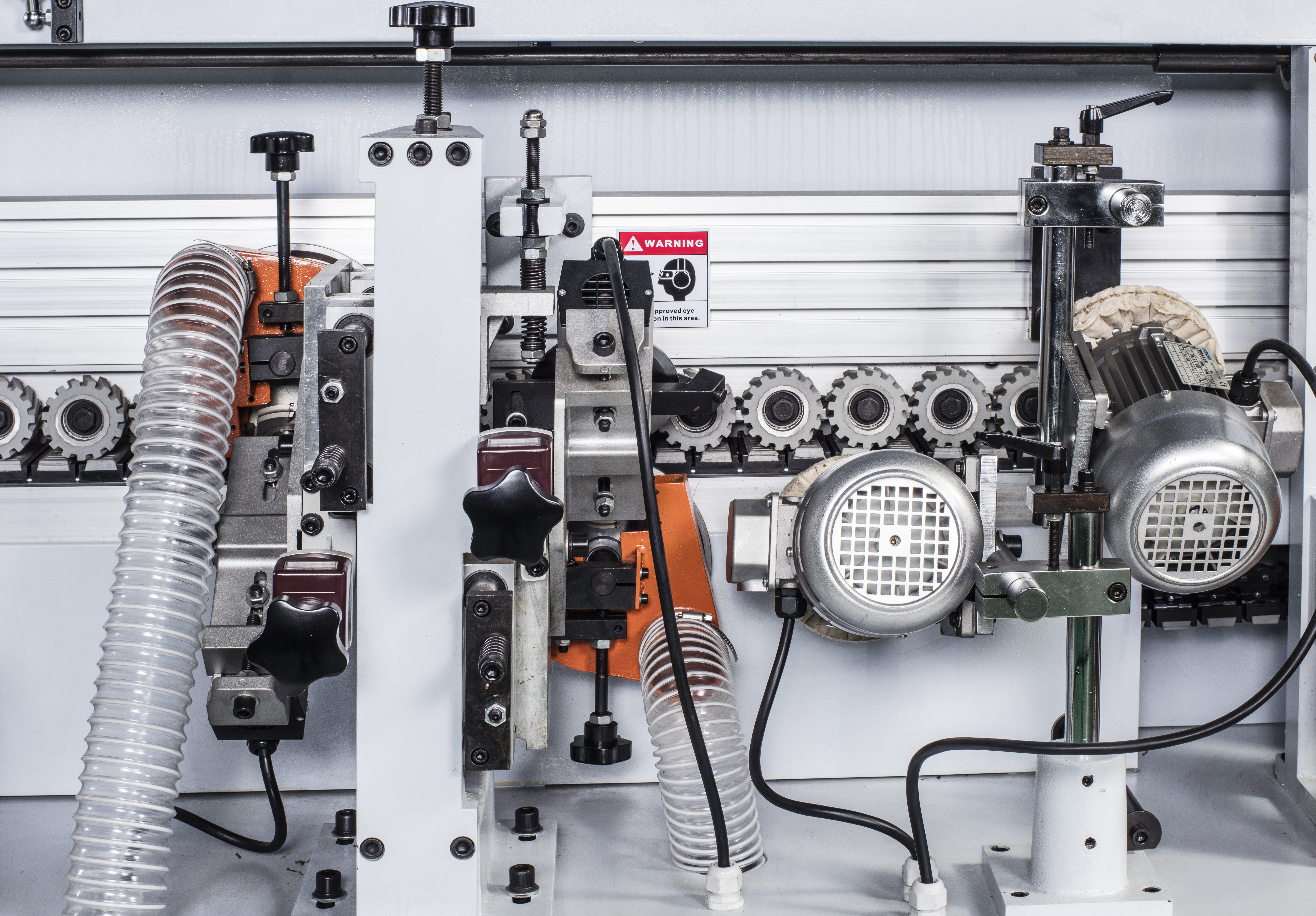

1. Function：Edge pressing +belt cutting +fine trimming+buffing. The most simplified configures can provide basic edge banding work, practical and low cost.
2. Suitable for PVC, melamine and thin batten edge band work.
3. Compact design, simple adjustment.
4. Highly cost effective.
Parameter：
Panel length | ≥120mm |
Panel width板 | ≥60mm |
Panel thickness | 10-50mm |
Belt thickness | 1-3mm |
Feeding speed | 10mm/min |
Input voltage | 380V-50HZ |

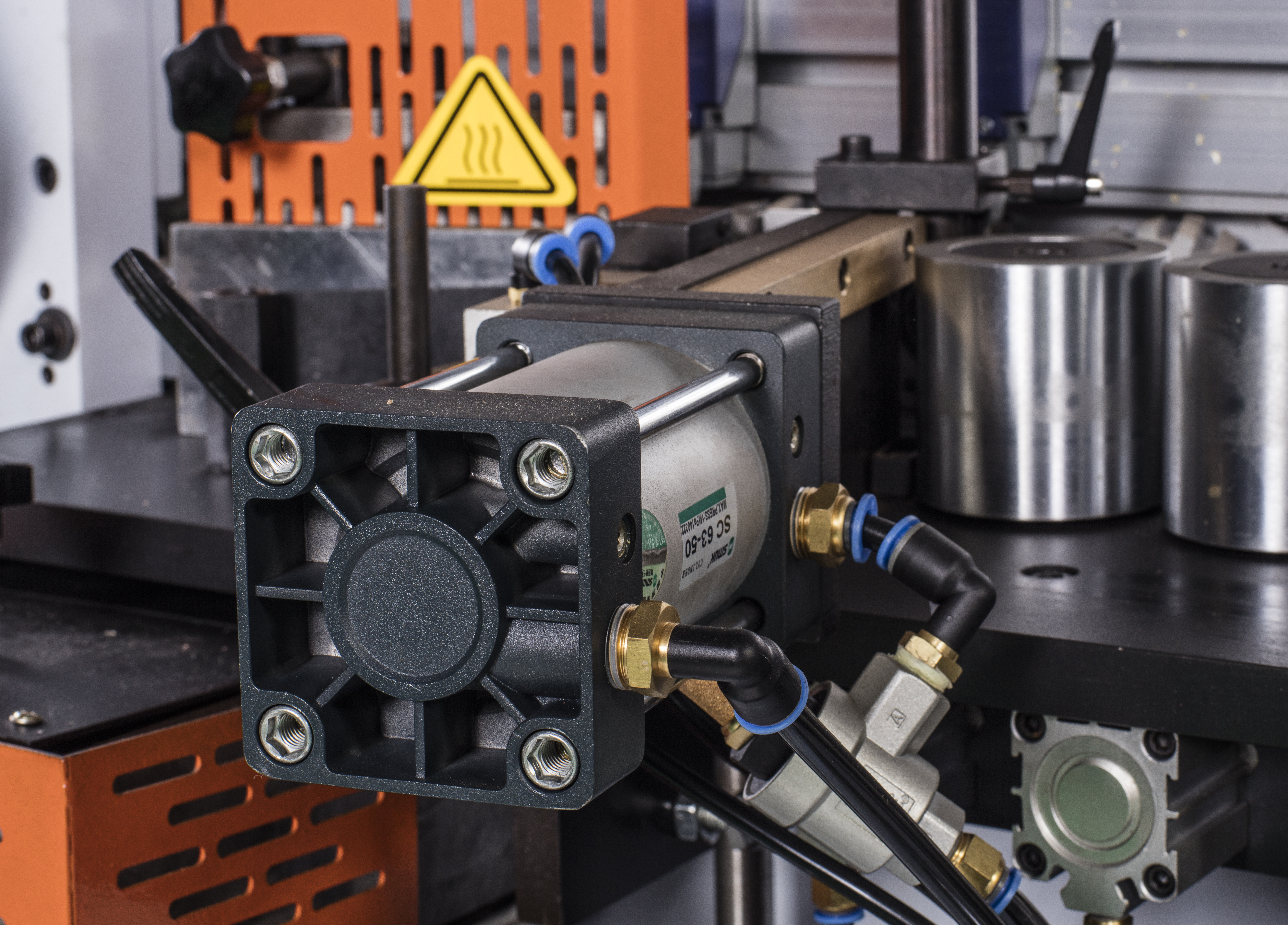

Pneumatic pressure | 0.6MPa |
Total power | 3.4Kw |
Suction inlet dia. | 100mm |
Machine size | 2800x800x1450mm |
Machine weight | 1000Kg |
