Main Characteristic
It equipped superior capability touch screen、 PLC control system with multi-function;
High load capacity with special double guide line, move agility and durability;
The Germany LCD display positioning system provides high accuracy.
With three rows of downward processing drill kit
Motor direct the driller, and can revolve 0-90°,have different drilling mode;
Combined high speed auto feeding and auxiliary feeding；Work continuously with high efficiency
Technical Parameter

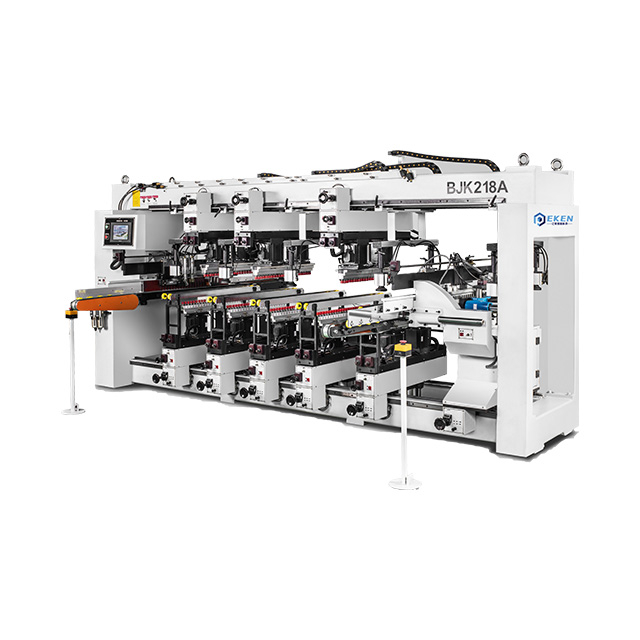

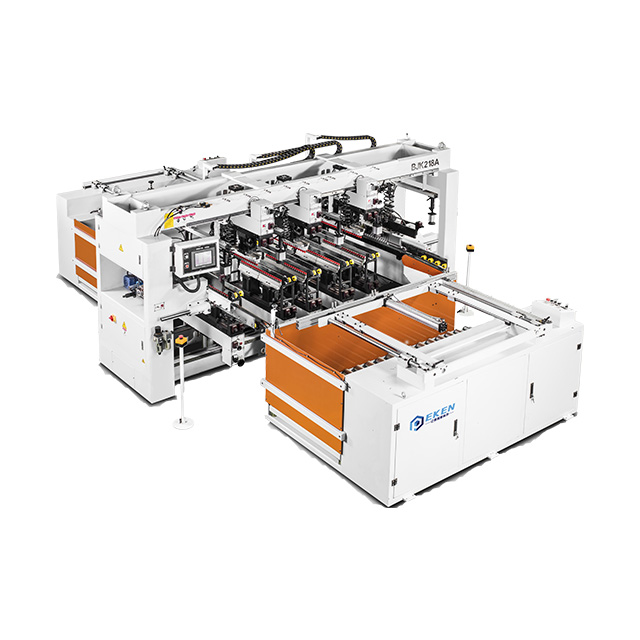

Model | BJK218A | |
Distance between the bit | 32mm | |
Drill box QTY | Horizontal | 2 |
Up ward | ||
Vertical downward | 5*2=10 | |
Quantity of bits | 218 | |
Max boring diameter | φ35mm | |
Max panel thickness | 60mm | |
Max panel width | 2450mm | |
Min panel width | 170mm | |
Power | 21.35KW 380V 50HZ | |
Pneumatic power | 0.6-0.8Mpa | |
Machine size | 4000*1800*1600m | |
Net weight | 4000Kg | |
