Main Characteristic
Double line guides employed for drilling gears, stable structure, high durability
Assistant rollaway path and lengthened backer are employed, easy to operate.

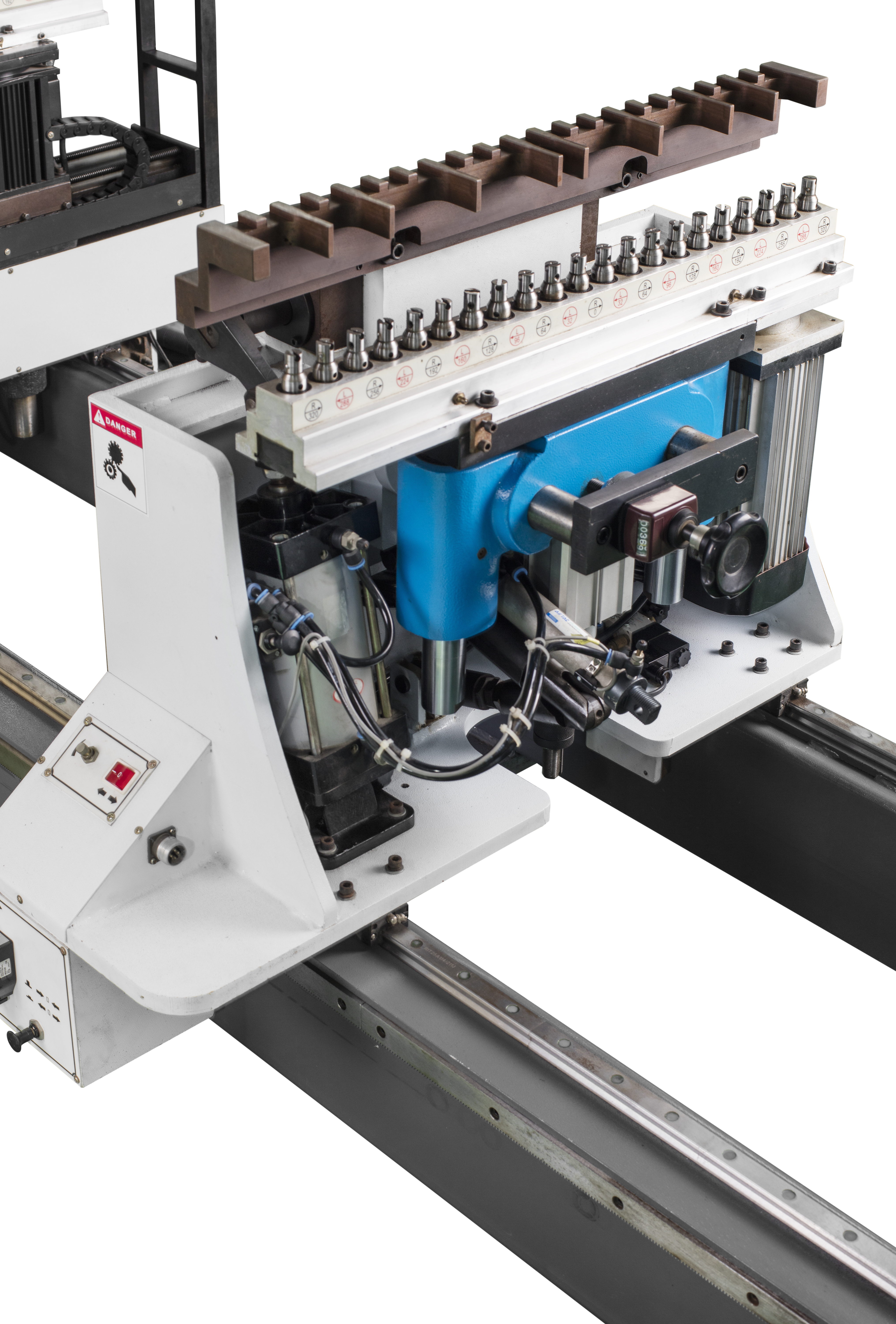

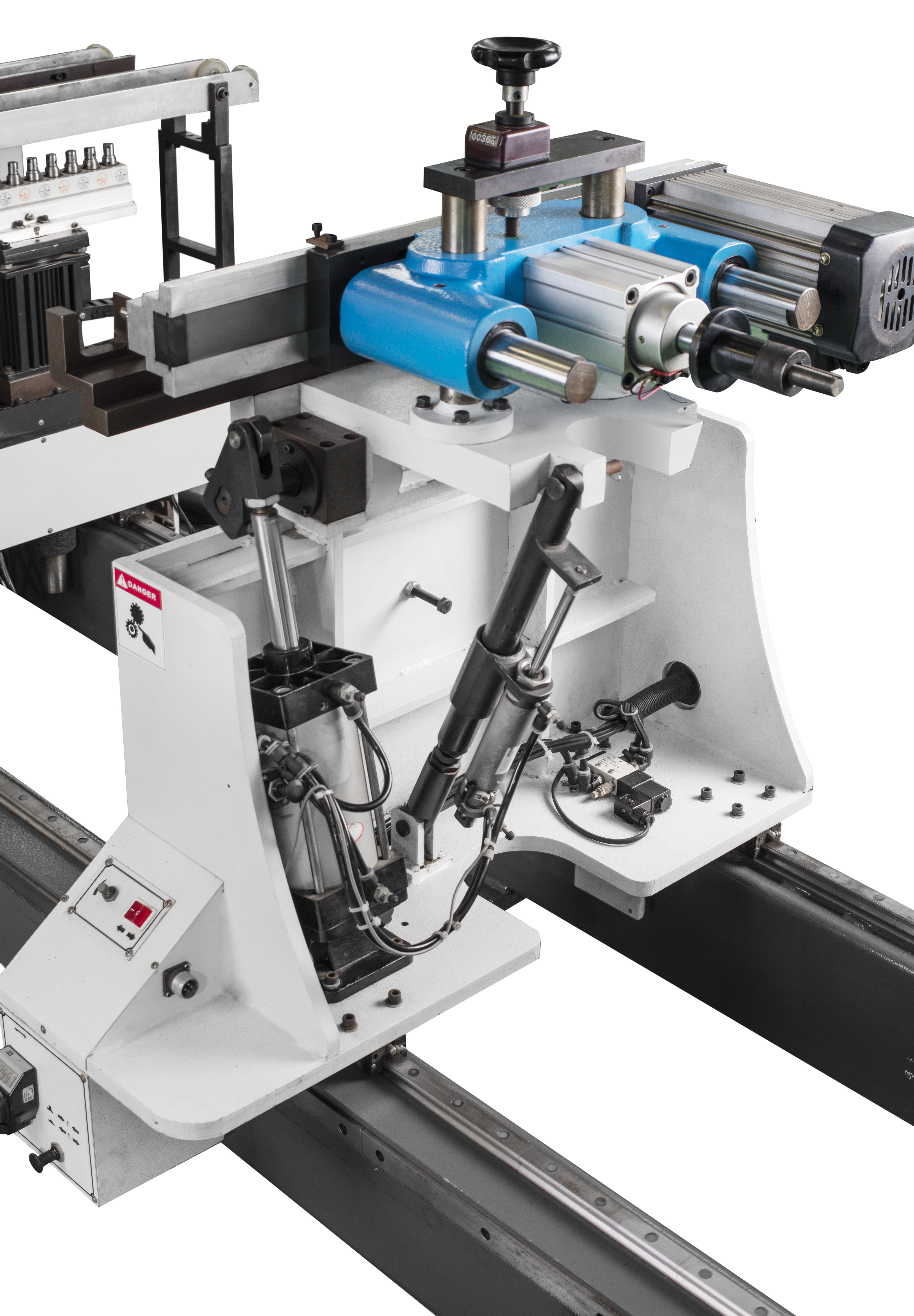

The forth line drilling gear is driven by a motor directly from horizontal to vertical working position 00 - 900. Larger the processing range.
Technical Parameter

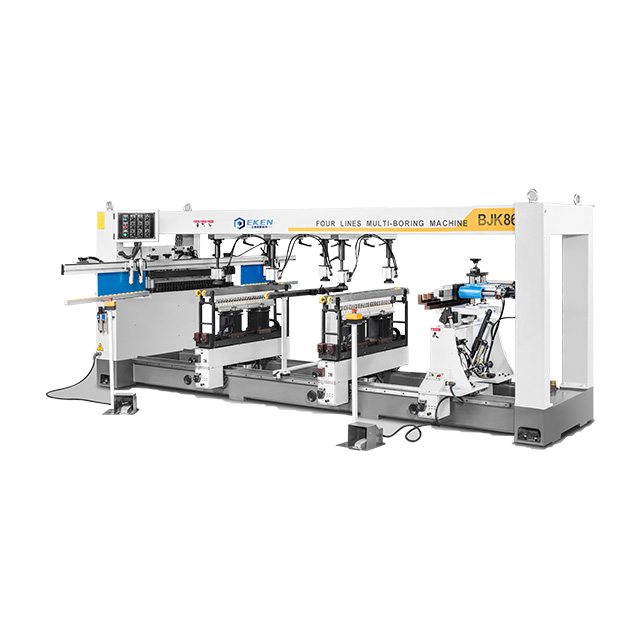

MODEL | BJK86 | |
Distance between the bit | 32mm | |
Drill box QTY | Horizontal | 1+1
|
Vertical | 2X2+1 | |
Quantity of bits | 86 | |
Max boring diameter | φ35mm | |
Max panel thickness | 60mm | |
Max panel width | 2450mm | |
Power | 7.4KW 380V 50HZ | |
Pneumatic power | 0.6-0.8Mpa | |
Machine size | 3700*2800*1600m | |
Net weight | 1600Kg | |
