Main Characteristic
Horizontal drilling group can revolve 90°,pneumatically controlled, drilling special drilling angles are available.
Technical Parameter

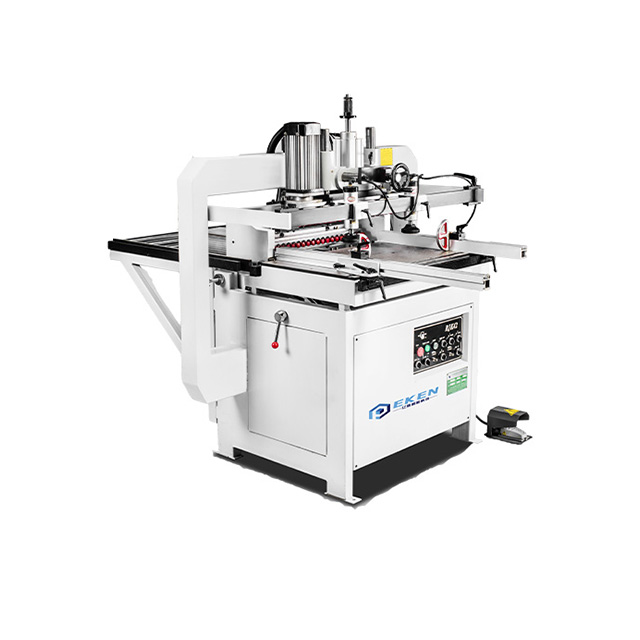

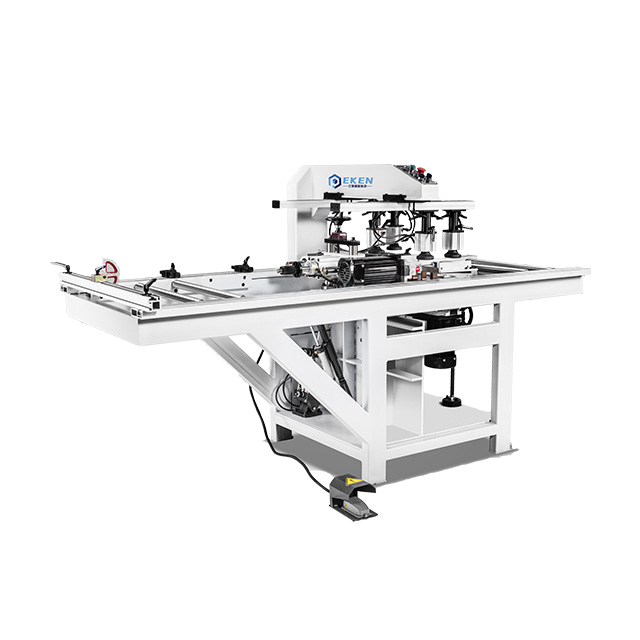

Model | BJK42A | BJK42B |
Distance between the bit | 32mm | 32mm |
Quantity of boring box | 2 | 2 |
Quantity of bits | 42 | 42 |
Max boring diameter | ￠35mm | ￠35mm |
Max panel thickness | 60mm | 60mm |
Power | 3Kw 380V 50Hz | 3Kw 380V 50Hz |
Pneumatic power | 0.6Mpa | 0.6Mpa |
Machine size（L*W*H） | 1500×1500×1300mm | 2400×1000×1120mm |
Net weight | 500kg | 450kg |
