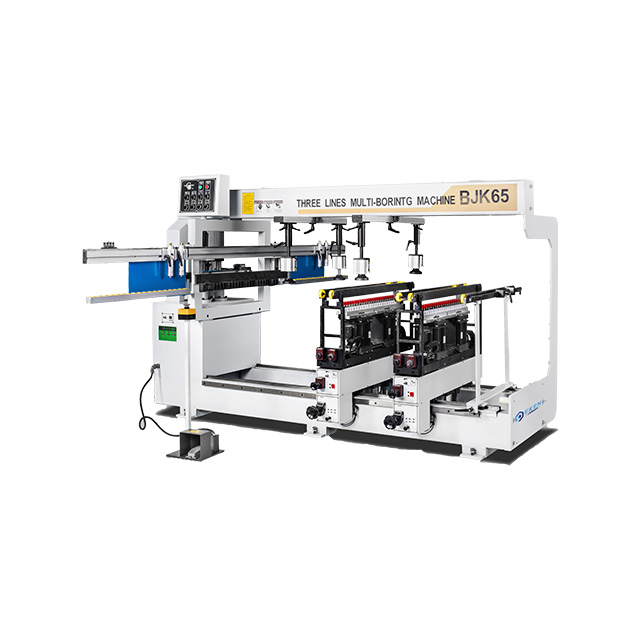

Main Characteristic
It has high precision double guide line and pneumatic locking system, boring unit can move easily and agile;
Vertical box is combined by two separate box, each can revolve from 0-90°,drill in large scope;
Position fixed quickly in horizontal and vertical forward, high precision in drilling holes;
Outstanding outlook, and got many patents;
Technical Parameter
MODEL | BJK65 | |
Distance between the bit | 32mm | |
Drill box QTY | Horizontal | 1
|
Vertical | 2X2=4 | |
Quantity of bits | 65 | |
Max boring diameter | φ35mm | |
Max panel thickness | 60mm | |
Power | 6KW 380V 50HZ | |
Pneumatic power | 0.6-0.8Mpa | |
Machine size | 2860X2800X1600m | |
Net weight | 1200Kg | |
