Main Characteristic
Stable andlengthened body by using profiled material as frame
Patricular driving component,raising up and coming down more steady.
Pneumatic locking,position fixed quickly
Vertical drilling group can revolve 0-90°,drilling at special angles are available.
Technical Parameter

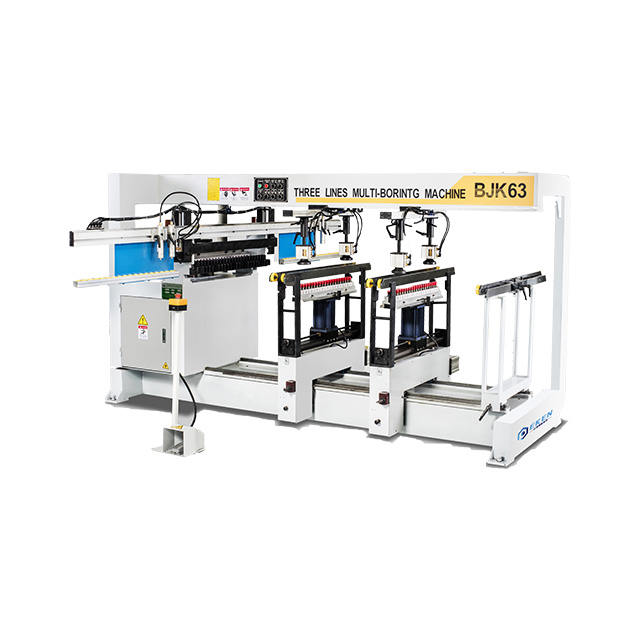

Model | BJK63 |
Distance between the bit | 32mm |
Drill box QTY | Horizontal | 1 |
Vertical | 2 |
Quantity of bits | 63 |
Max boring diameter | φ35mm |
Max panel thickness | 60mm |
Max panel width | 1800mm |
Max panel length | 2700mm |
Power | 4.5KW |
Pneumatic power | 0.5-0.8Mpa |
Net weight | 1000Kg |
