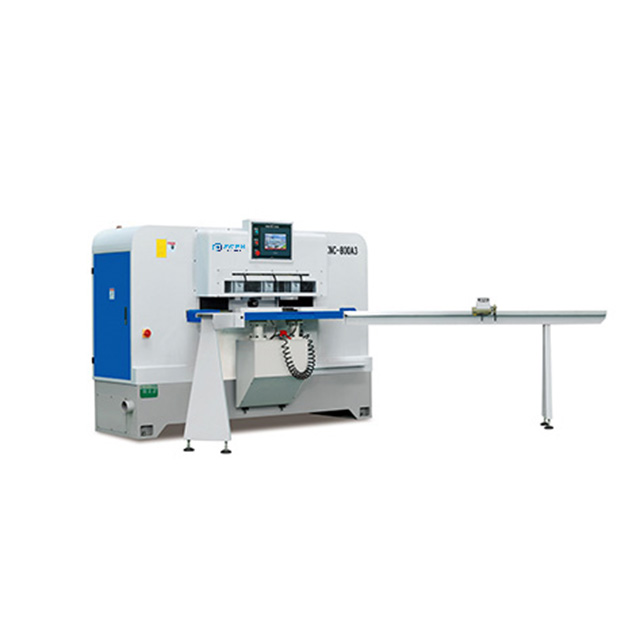

Main features：

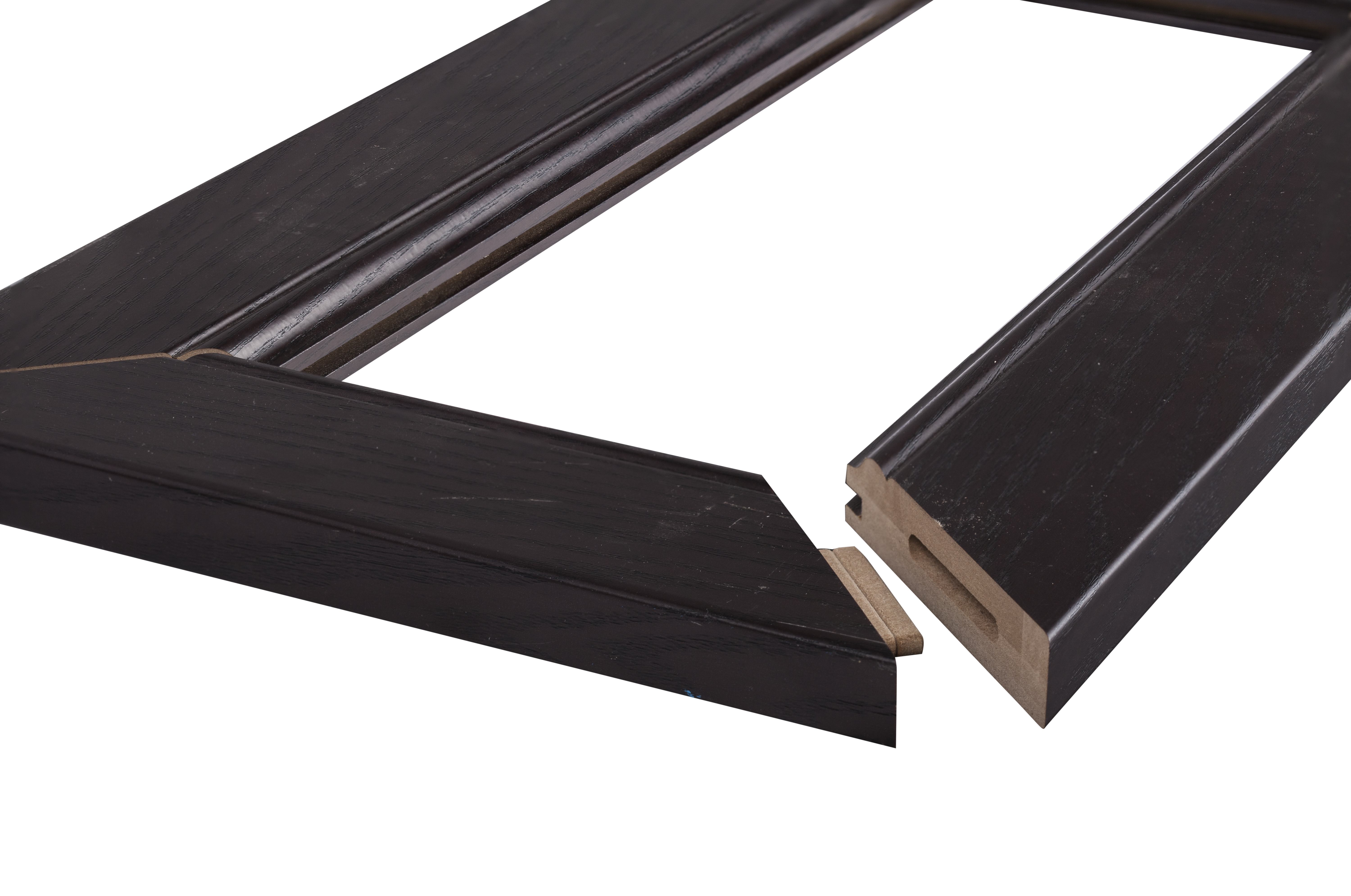

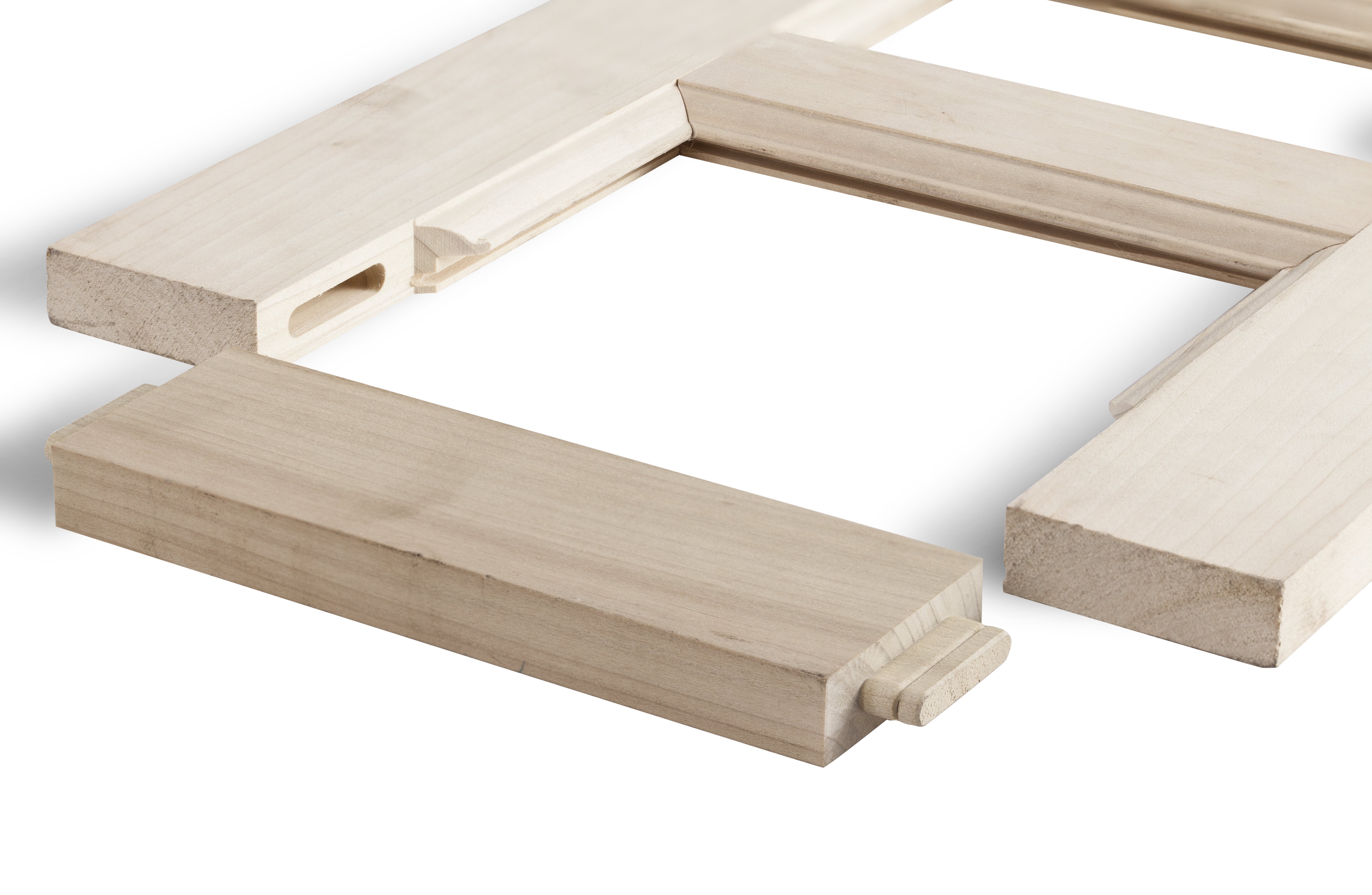

This model adding 135 degree Tenon machining function, also able to machine T shape Tenon of the framework.
1. Visual touch screen interface display the size changing without mechanical adjustment.
2. It equipped the German BECKHOFF control system.Digital communications provides the precision action control without signal loss.To guarantee the accuracy and convenience, fence device is digital displayed.
3. Ball screw transmission and servo motor drive ensure the efficiency of response and machining.
Parameter：
Milling cutter motor power | 5.5Kw |
Milling cutter turn speed | 12000rpm |
Milling cutter dia. | 30mm |
Milling cutter max. outer dia. | 130mm |
Drill bit motor power | 3.7Kw |
Drill bit turn speed | 9000/12000/18000rpm |
Drill bit dia. | 3-16mm |
45o tenon width45° | 0-150mm |
45o tenon depth 45° | 10-45mm |
135o tenon width 135° | 0-120mm |
135o tenon depth 135° | 10-20mm |
Fence degree | 45°/90° |
Total power | 12.12Kw |
Suction inlet dia. | 100mm |
Main body size(LxWxH) | 2450x1200x1700mm |
Machine weight | 1500Kg |
