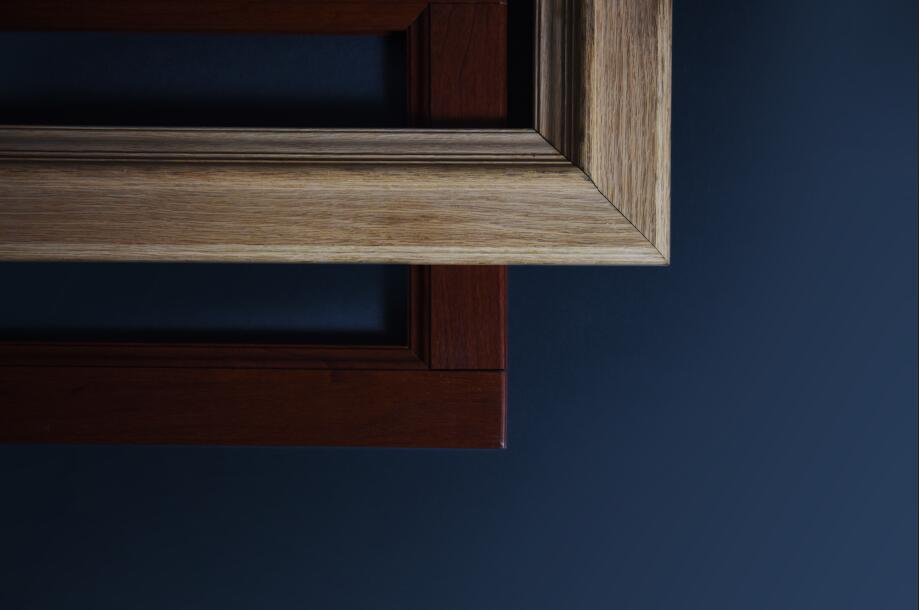

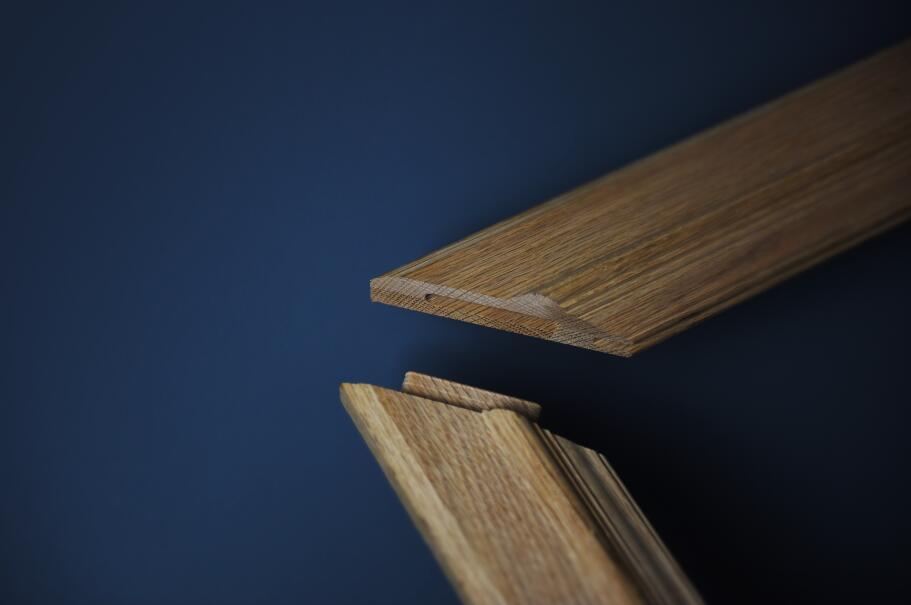

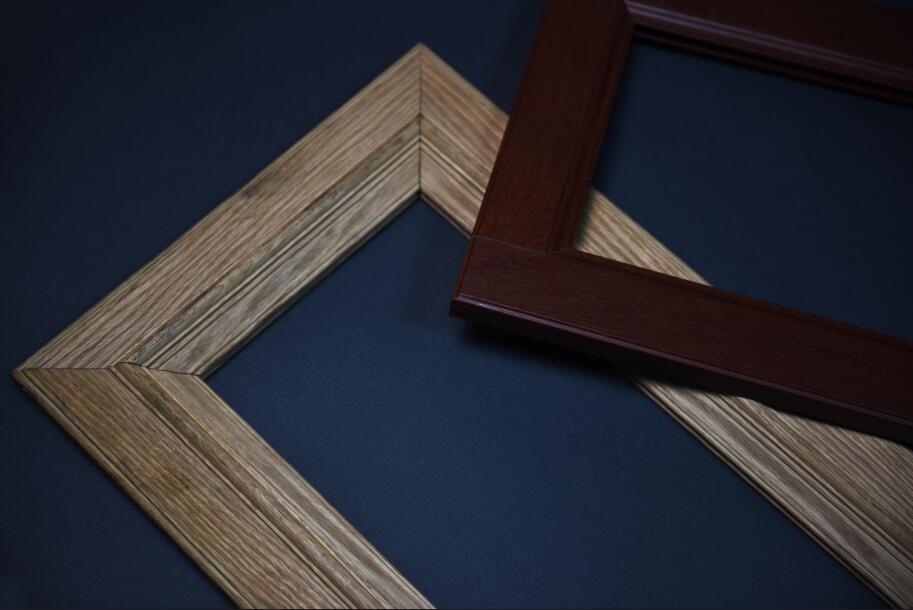

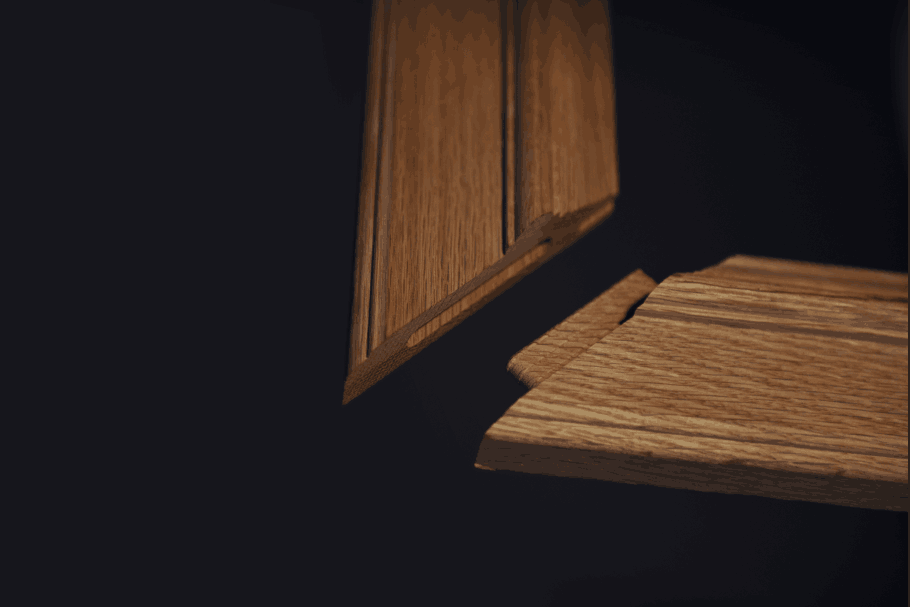

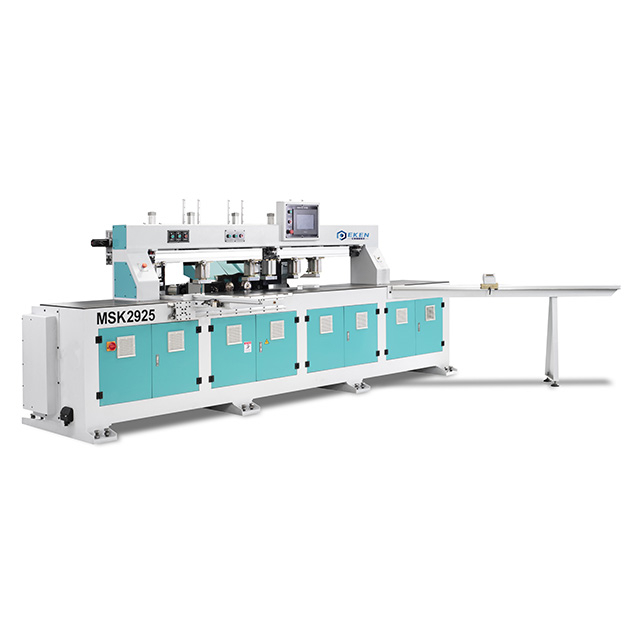

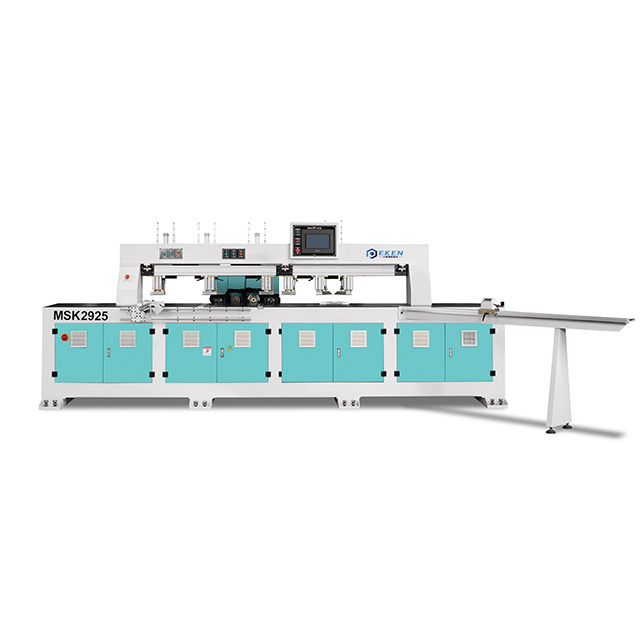

The long workpiece with multi-mortising can be completed at one process, to avoiding the size error caused by multiple positioning;
User friendly operation interface with simple and accurate parameter setting.

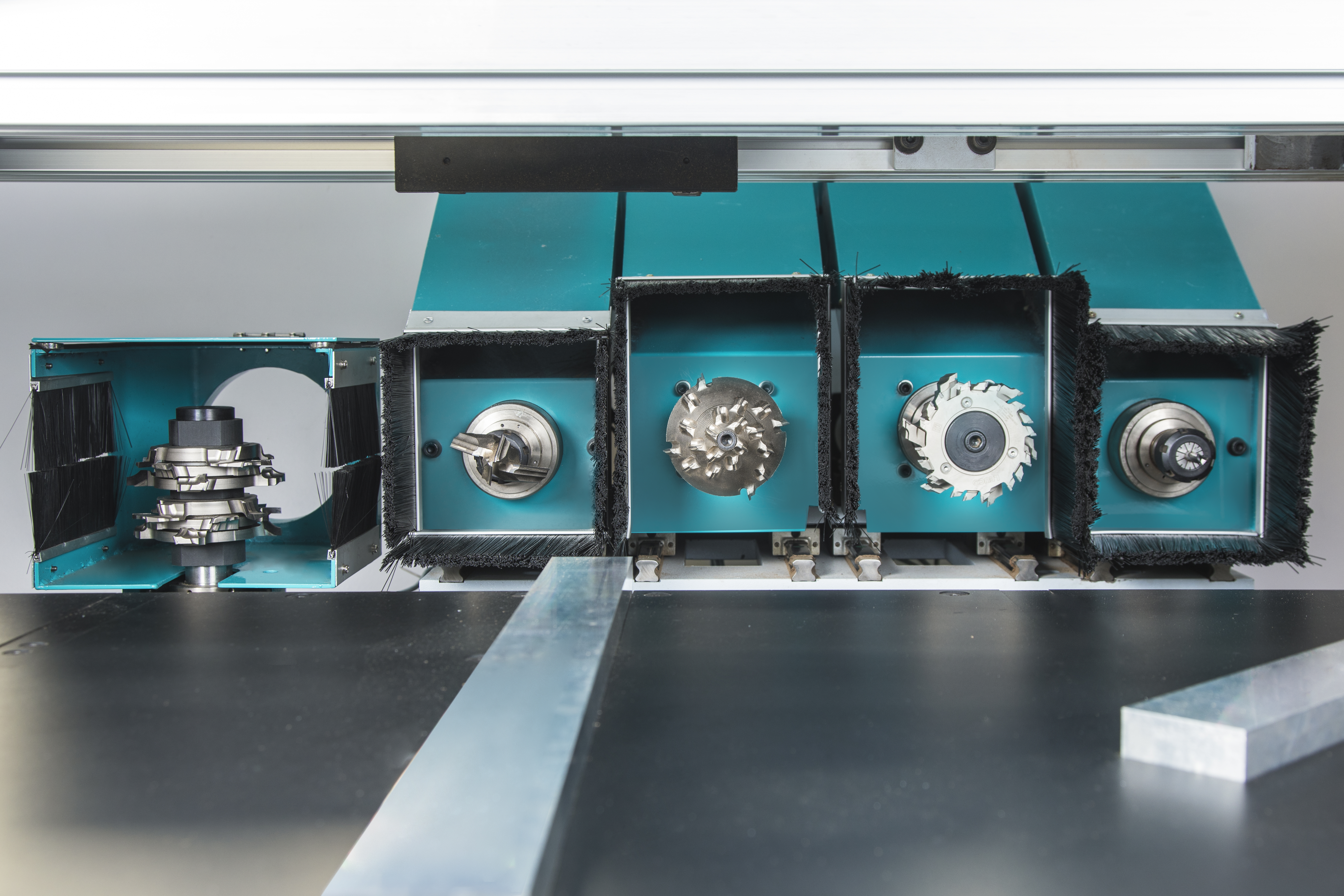

Multi-working position provides the possibility of multipleTenon application.
Outstandingprecisely performance，flexible topology and simple configuration characterize EtherCAT (Ethernet for control automation technology), the real-time Ethernet technology from Germany BECHHOFF.

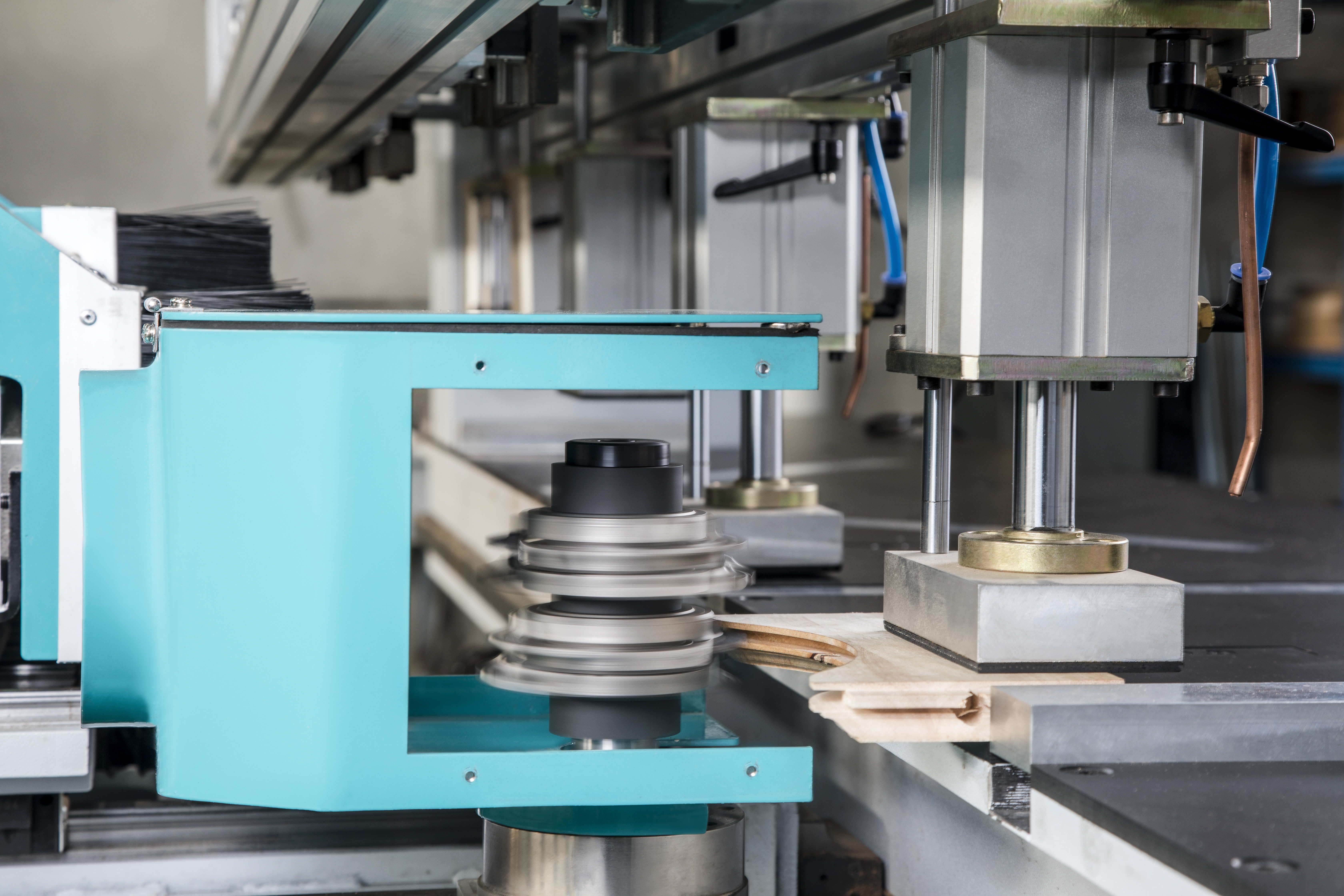

Absolute encoder servo motor and ball screw used in the independent NC, which providing the precisely mortise and tenon processing.
Technical parameters
Tenon depth | 10-30mm |
Max. processing thickness | 80mm |
Max. Processing length | 2500mm |
Fence degree | 45°/90° |
Milling cutter max. outer dia. | 130mm |
Milling cutter aperture | 30mm |
Pre-milling cutter | Φ60×90° |
Drill bit dia. | 3-16mm |
Drill bit turn speed | 9000/12000/18000 |
Milling spindle power | 2x3.7Kw |
Main milling spindle power | 2x5.5Kw |
Total power | 24 Kw |
Current | AC380V 50Hz three phase four wires |
pneumatic pressure | 0.4～0.8MPa |
Suction inlet dia. | 150mm |
Max. Overall size | 4300×1600×1880 |
Machine weight | 2600kg |
