Main processing functions:
l One time clamping can finish doors lock hole, lock slot, hinges, to avoid working error to improve machining precision;
l lock slot with hinge groove can be produced at the same time, to improve work efficiency;
l automatic positioning, automatic measurement of the length and thickness of wooden door, single production, fast and efficient;
l Dock with the production optimization control software, the realization of automatic scanning code, It also can join in automatic production line;
l All servo control mechanism, precision rack driving, size precision; Absolute value servo can automatically return to zero position, fast response, high working efficiency;
Automatic lubrication system, maintenance, maintenance is convenient.

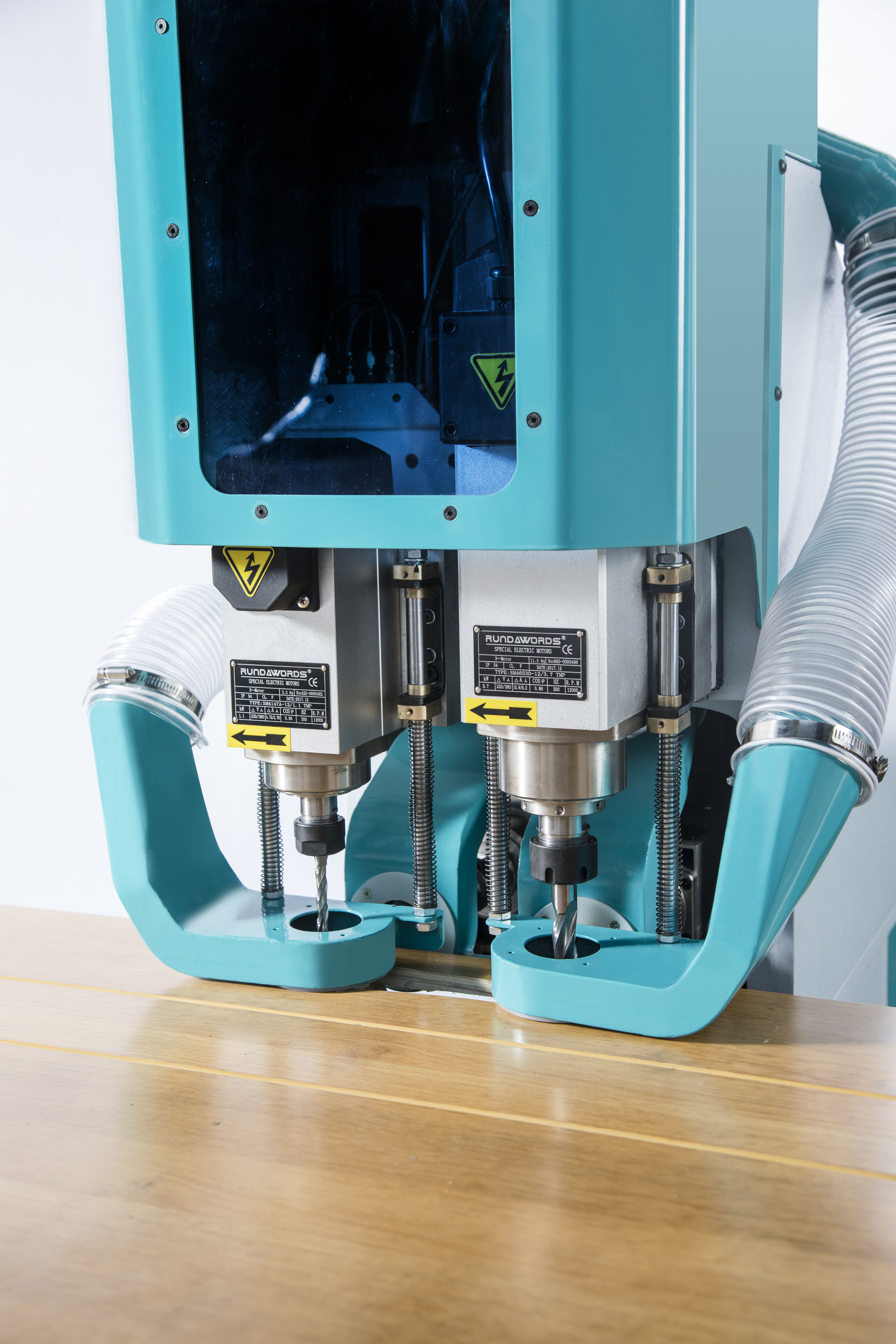

lHinge hole is made by reverse knife, to ensure the paint with no crack, and it can also process angle hinges.
New Features:
l automation programming diagonal hinges
Workpiece length | 1800～2600mm |
Workpiece width | 400～1100mm |
Workpiece Thickness | 20～60mm |
Max. working speed | 50m/min |
Worktable height | 900mm |
Suction inlet dia | 100mm |
Air pressure | 0.6MPa |
machine weight | 3500Kg |
Slot motor | 3.7Kw |
Hinge motor | 1.1Kw |
Keyhole motor I | 3.7kW |
Keyhole motor II | 1.1kW |
Slot motor | 3.7kW |
Milling motor | 1.1kW |
Total power | 21.4kW |
Machine size | 4450×2550×2300mm |
