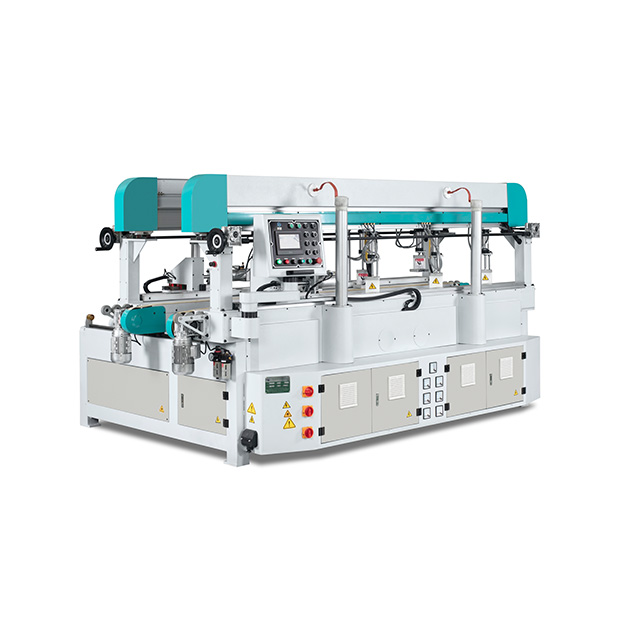

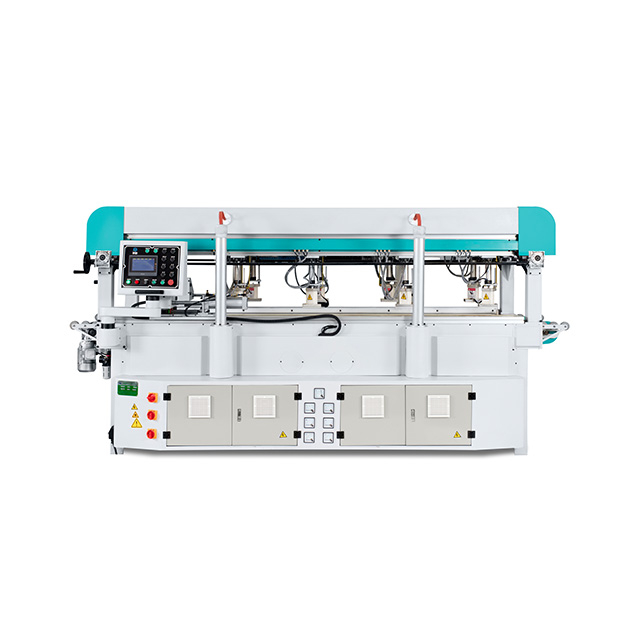

MH9328
| Availability: | |
|---|---|
Main features：
The PLC controlled man-machine interaction interface designed according to the principles of simple, clear, and friendly. The automatic controlled working process ensures the consistency during the mass production.
The High-frequency heating shorten the time for glue curing, to improve production efficiency, which use the Low current heating guarantees the safety in production.
The Servo motor, ball screw and heavy load linear guide guarantees the accuracy, efficiency and durability.
It is possible to extend the machine to an automatic line with build-in conveyor belt system.
TECHNICAL PARAMETER
Min. working size | 1000x450mm |
Max. working size | 2800x1400mm |
Stile width | 150mm |
Nominal frequency | 6.78MHZ |
Input power | 7KVA |
Output power | 3KVA |
Input current | AC380V 50HZ three phase Four wires |
Pneumatic power | 0.6MPa |
Total power | 10.03Kw |
Machine dimension Machine weight | 3760x2200x2800mm |
Machine weight | 2450Kg |
