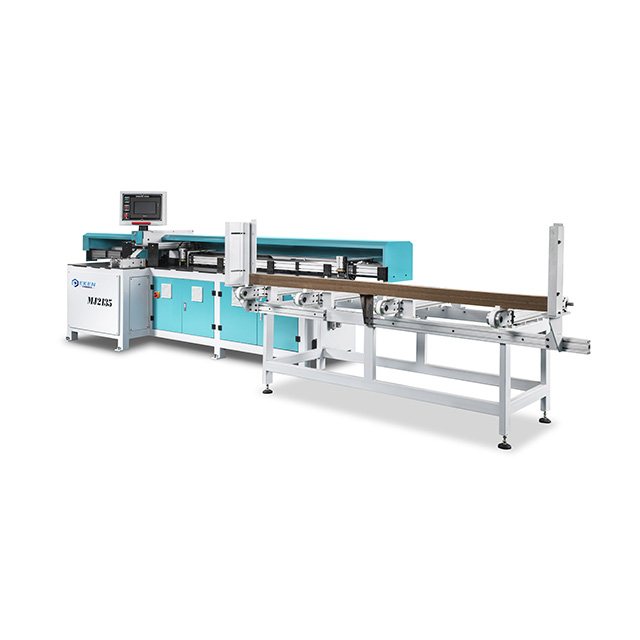

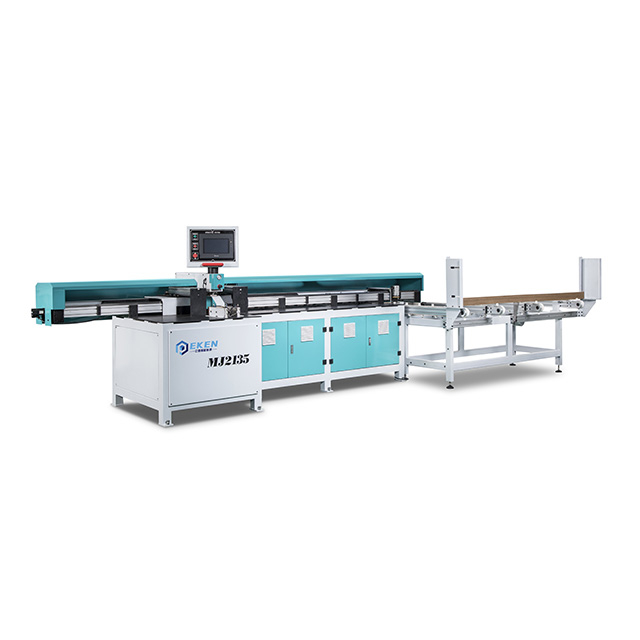

MJ2135
Technical parameters:
Worktable height
860mm
motor power of main saw
3.7Kw
Main saw blade speed
6000rpm
Feeding speed
20m/min
Max.saw blade dia.
350mm
Saw aperture
25.4mm
Min.size of raw material
300x15x15mm
Min.cutting length(end)
80mm
Cut 1 meter long precision
±0.15mm
Cut 2 meters long precision
±0.30mm
Maximum cutting section size
200x50 mm
Max feeding width
250x20 mm
Air pressure
0.6MPa
Total power
4.5Kw
Suction inlet dia.
150mm
Machine size
4600x1200x1400mm
Machine weight
1200 Kg
