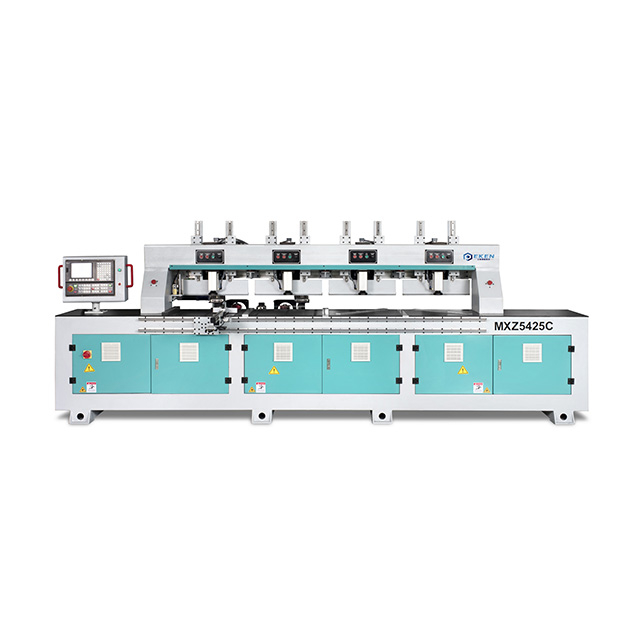

Main features：
The long strokeball screw driving making better size accuracy and surface quality
Absolute encoder servo motor and ball screw used in the Taiwan Province DELTACNC, which provides the precisely milling and shaping function with simple interface parameter settings.

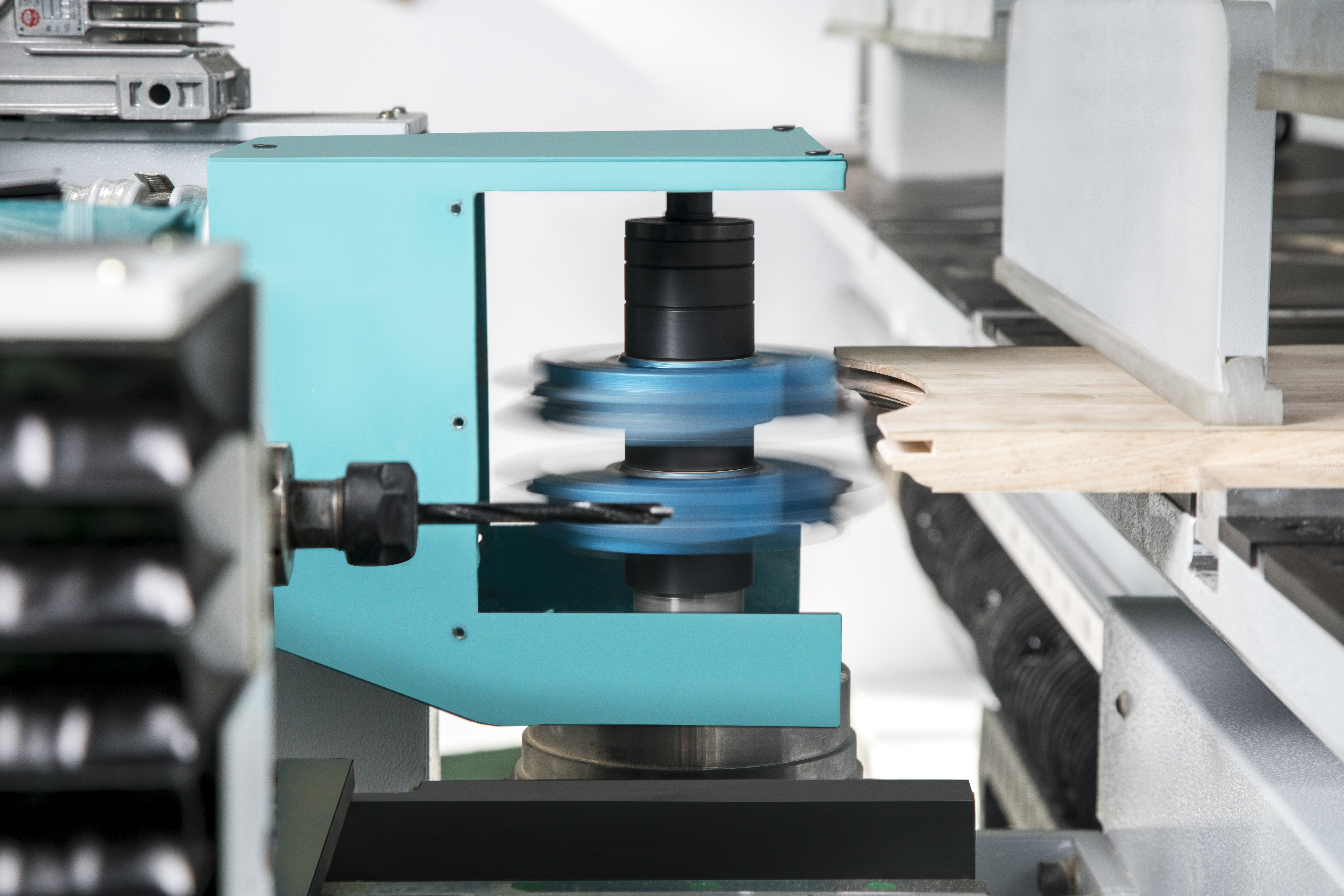

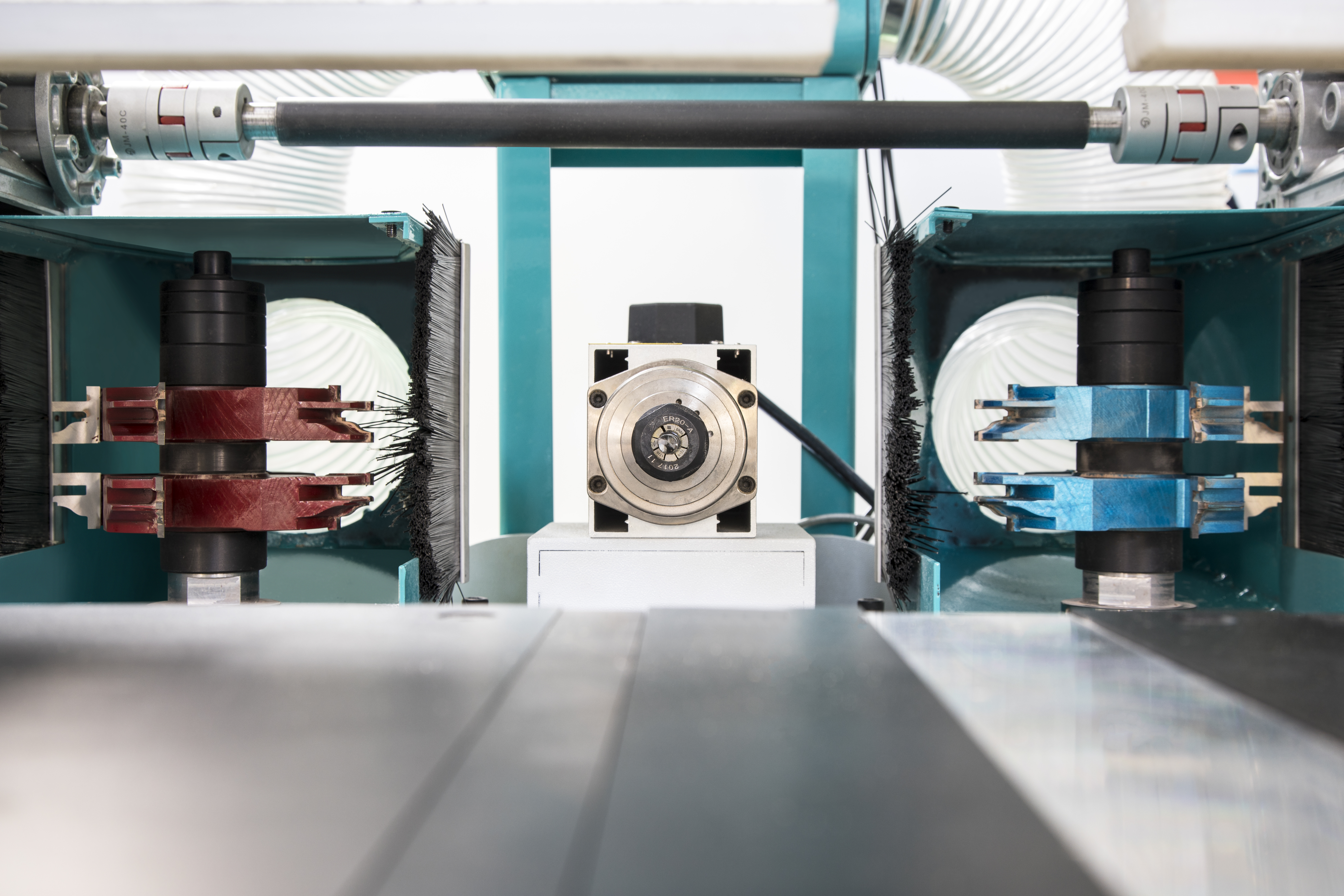

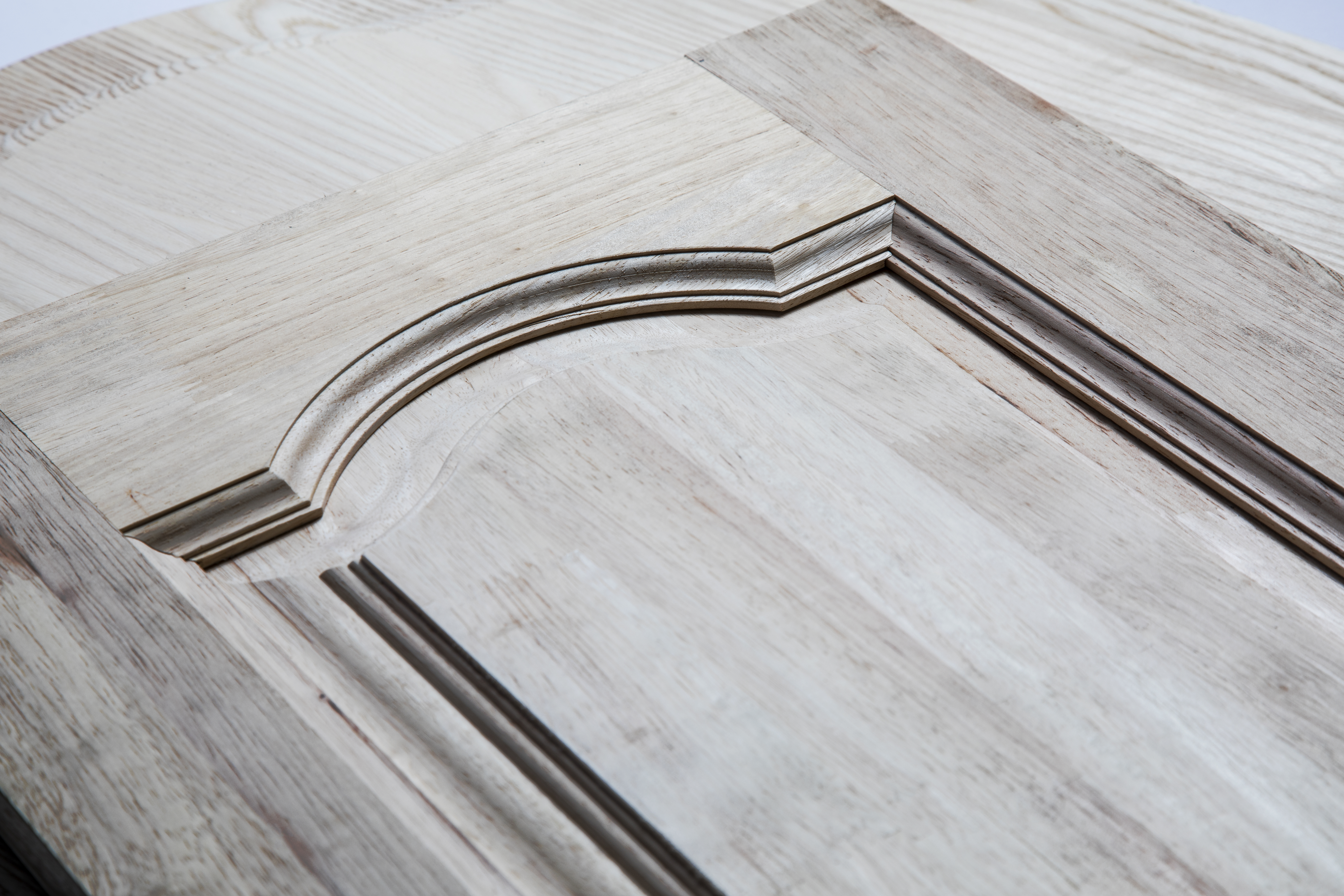

Powerful function and wide processing range with the raised panel,rail witharc,cope &stick’s stile milling and drilling, also including 45 degree’s finger joint & Dowel processing.
Workpiece is measured by magnetic railing ruler for milling tool calibration; also system is able to support multiple work position processing.
Max. Processing length | 2450mm |
Max. processing thickness | 50mm |
Max. Milling Speed | 30m/min |
Max. Drilling Depth | 70mm |
Max. Arc machining depth | 90mm |
Shaft diameter | 35mm |
Max. Milling Cutter Dia. | 180mm |
Drill bit diameter | 3--16mm |
Spindle revolving speed | 12000rpm |
Total Power | 27.7KW |
Milling Motor Power | 10KW*2 |
Drilling Motor Power | 1.8KW |
Work Table Height | 880mm |
Dust Vacuum Dia. | 150mm |
Weight of machine | 3100Kg |
Machine size | 4300*1500*1500mm |
