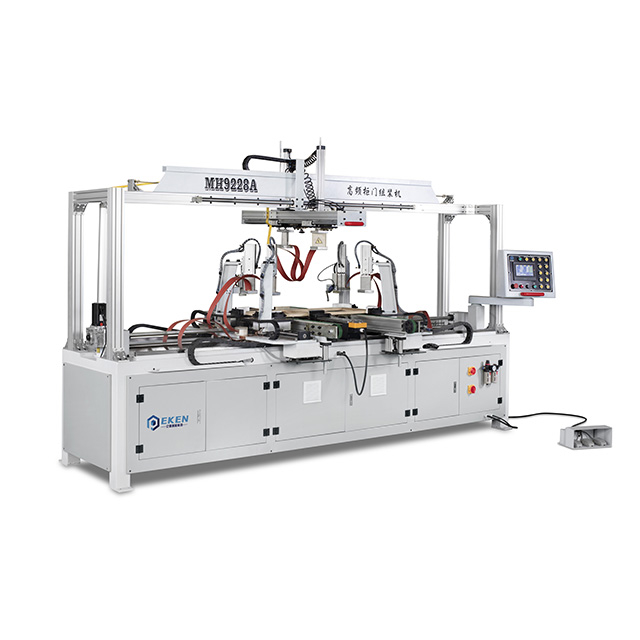

MH9228A
| Availability: | |
|---|---|
Main features:
The PLC controlled man-machine interaction interface designed according to the principles of simple, clear, and friendly. The automatic controlled working process ensures the consistency during the mass production.
The High-frequency heating shorten the time for glue curing, to improve production efficiency, which use the Low current heating guarantees the safety in production.
The Servo motor, ball screw and heavy load linear guide guarantees the accuracy, efficiency and durability.
The double-45 degree clamping cylinder avoids the flatness deviation from the raw material thickness difference.
The gear motor and lager screw clamping compression force, which more than 1 ton.
Optional automatic feeding device designed for large working piece.
Technical parameters:
Min. working size | 250x250mm / 570mm x 250mm |
Max. working size | 2500x850mm |
Material maximum cross section | 80x40mm |
Nominal frequency | 6.78 MHZ |
Input power | 7KVA |
Output power | 3KVA |
Input current | AC380V 50HZ three phase 4线 |
Pneumatic power | 0.6MPa |
Total power | 8.8Kw |
Machine size | 3600x1250x2300mm |
Machine weight | 1500Kg |
