Working length | 1800～2500mm |
Working width | 400～1100mm |
Working thickness | 30～65mm |
Main saw motor power | 3*7.5KW |
Main saw blade dia. | D300mm-d30mm |
Main saw blade max speed | 6000rpm |
Secondary saw blade dia. | D80mm-d22mm |
Secondary saw blade max speed | 6000rpm |
Secondary saw motor power | 4x1.1 Kw |
servo motor power | 4x1.0 Kw |
Conveyor belt power | 2x0.75 Kw |
Conveyor belt height | 925mm |
Power | Three phase 5 wire 380V 50HZ |
Total power | 35KW |
Suction inlet dia | 200mm |
Pneumatic pressure | 0.5～0.7MPa |
Overall size | 4200X2400X1700 mm |
Machine Weight | 3000 Kg |

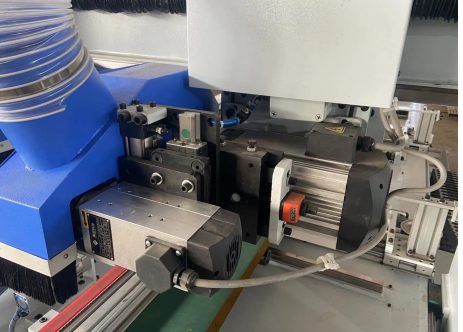

Three saw sets are equipped with main and scoring saws working together to ensure the clean cutting surfaces and edges.
Central sawing processing method to ensure that the shape is centered.

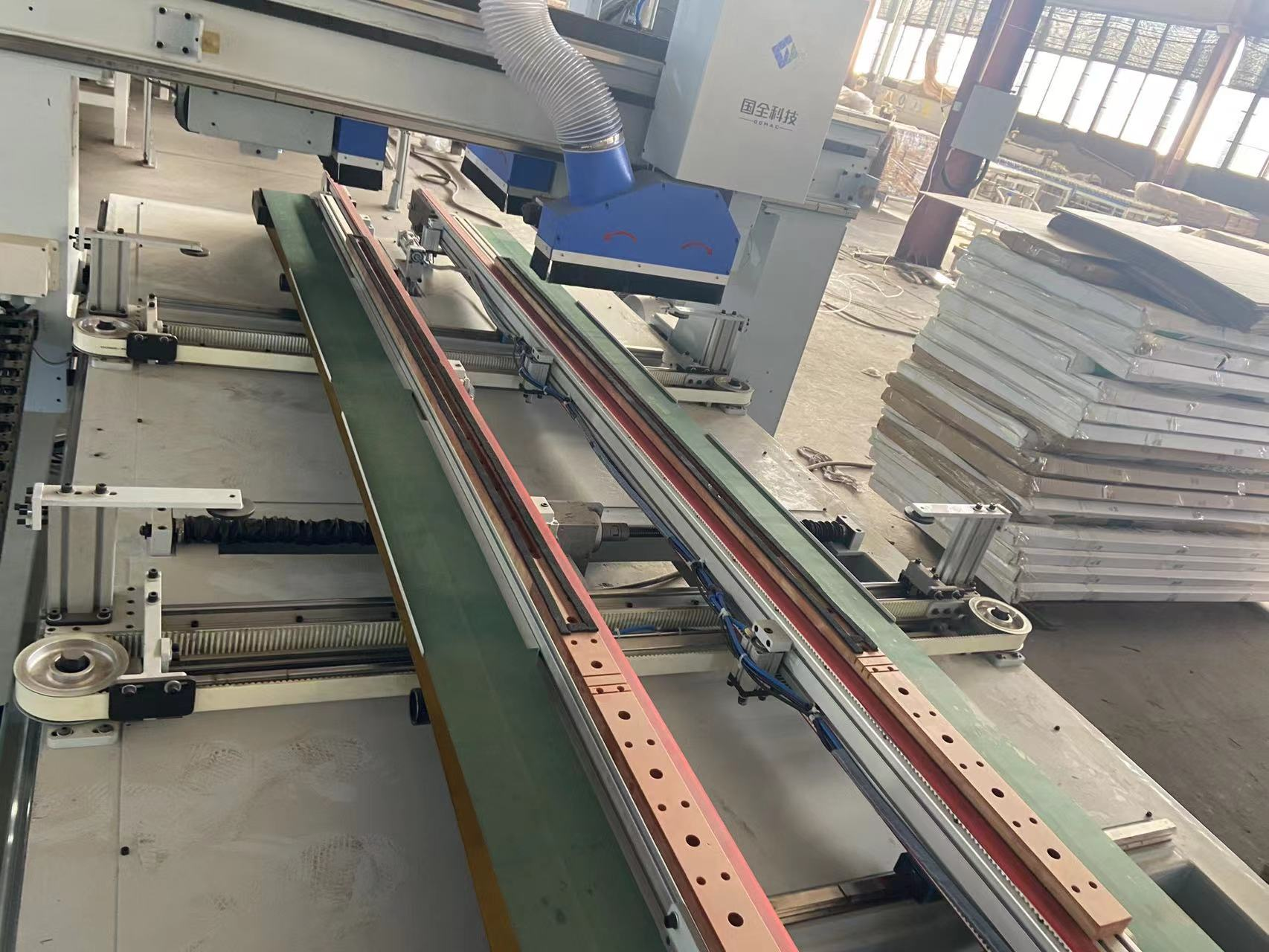

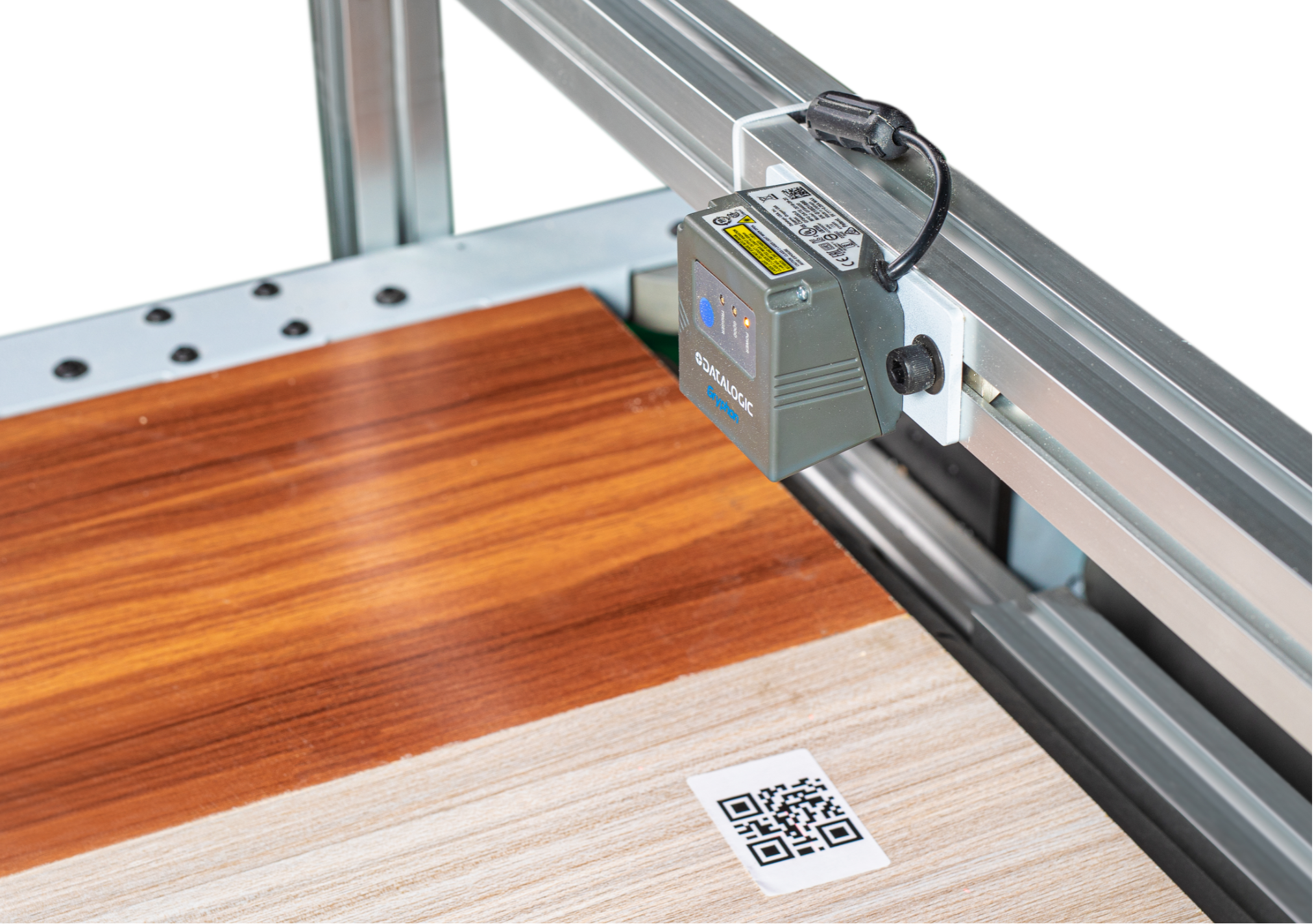

Four-side sawing to ensure that the door leaf sawing process can be completed within 75 seconds. The longitudinal automatic feeding and unloading system can add the bar code scanning according to the needs of the automatic production line.
| |
