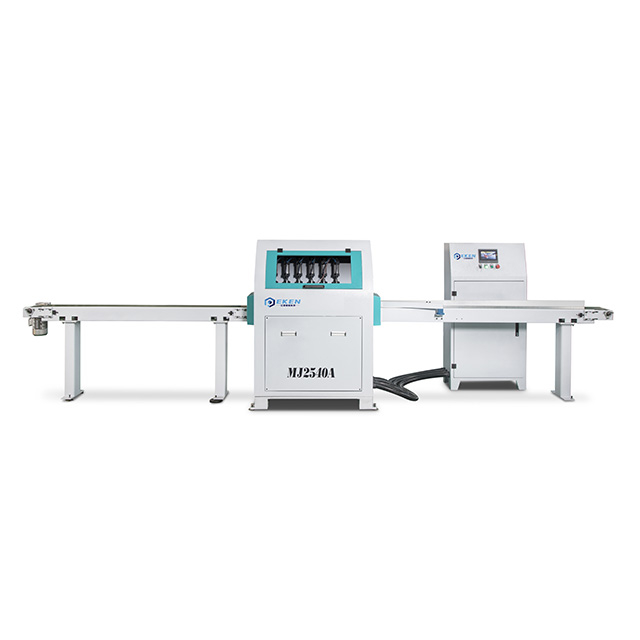

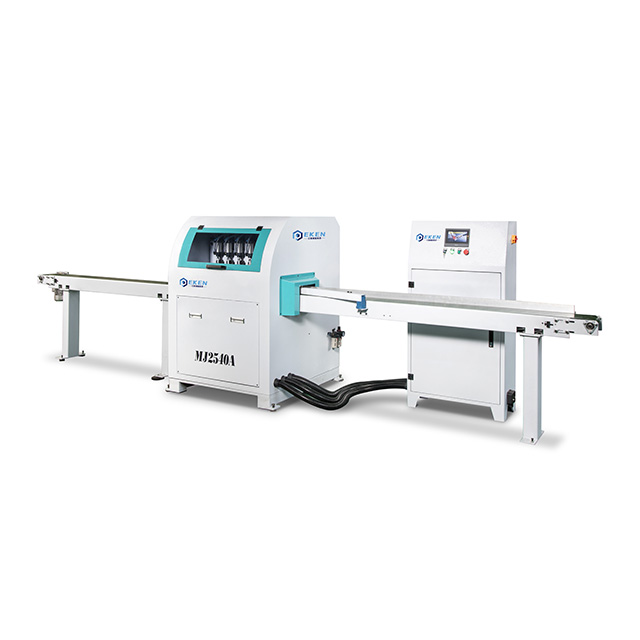

MJ2540A
| Availability: | |
|---|---|
Main features:
MJ2545 offers high-speed optimizing cross-cut saws for different industrial requirements with MAC high-frequency electromagnetic valve in saw blade lifting and falling system.
They are not only the fastest but also provide reliability, accuracy and complete user-friendliness interface. Servo motor was used in auto-feeding and positioning, to achieve rapid and accurate positioning without mechanical adjusting.
The finished product is automatically launched with auto-feeding Conveyor belt.
SICK fluorescence sensor is used when cutting out defects and for optimization with a highlight marker.
Technical parameters:
motor power of main saw | 5.5Kw |
Feeding motor power | 5.5Kw |
Lifting motor power | 5.5Kw |
Feeding convey belt power | 0.55Kw |
Total power | 17.05Kw |
Main saw blade speed | 4200rpm |
Feeding speed | 300m/min |
Max.saw blade dia. | 400mm |
Saw aperture | 30mm |
Worktable height | 910mm |
Min.distance between line | 20mm |
Min.size of raw material | 300x30x10mm |
Min.cutting length(end) | 150mm(200mm) |
Carrying timber weight | 25Kg |
Cut 1 meter long precision | ±1mm |
Cut 2 meters long precision | ±2mm |
Maximum cutting section size | 150x50 |
Feeding width | 20-150mm |
Suction inlet dia. | 100mm |
Machine size | 5800x1200x1580mm去输送架) |
Machine weight | 1500Kg |
