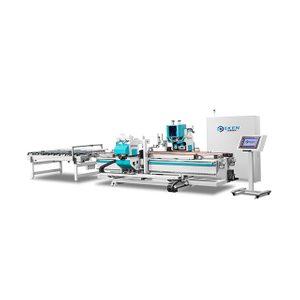

Working length | 1800～2400mm |
Working width | 640～1100mm |
Working thickness | 30～80mm |
Max. working speed | 20m/min |
Height of worktable | 900mm |
Slot motor power | 3.7Kw |
Hinge motor power | 0.4kw *3 |
Keyhole motor I power | 1.5kW * 2 |
Keyhole motor II power | 0.4kW |
Total power | 12.5kW |
Pneumatic pressure | 0.6MPa |
Machine size | 2800*2200*2000mm |
Machine weight | 2500kg |

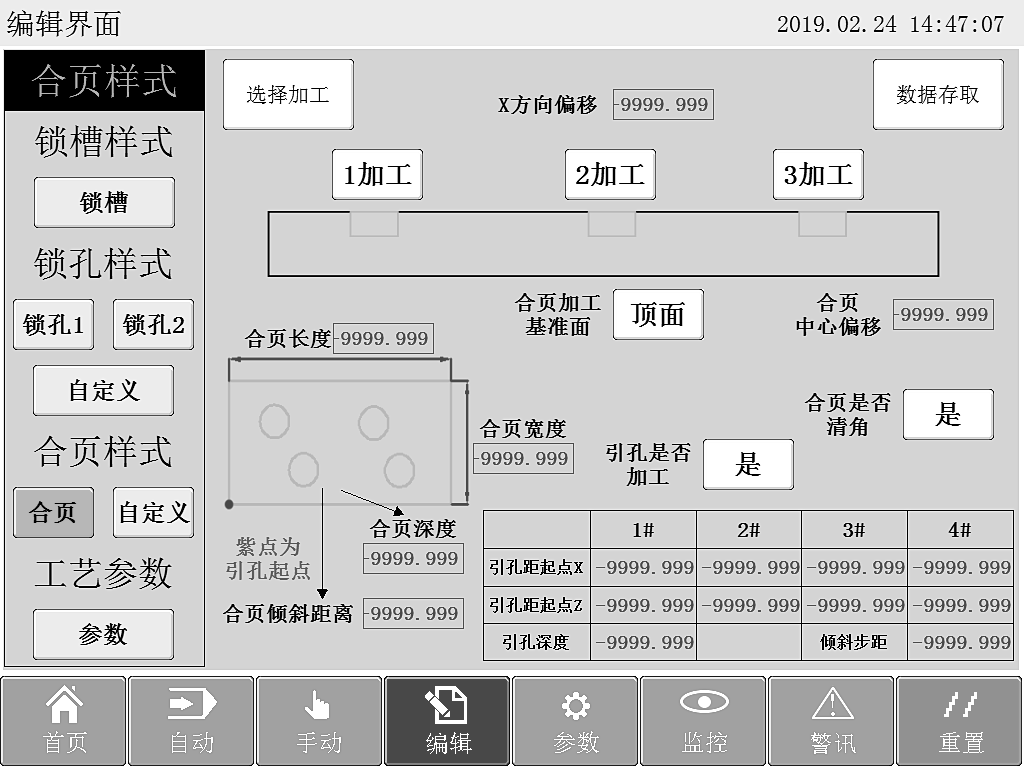

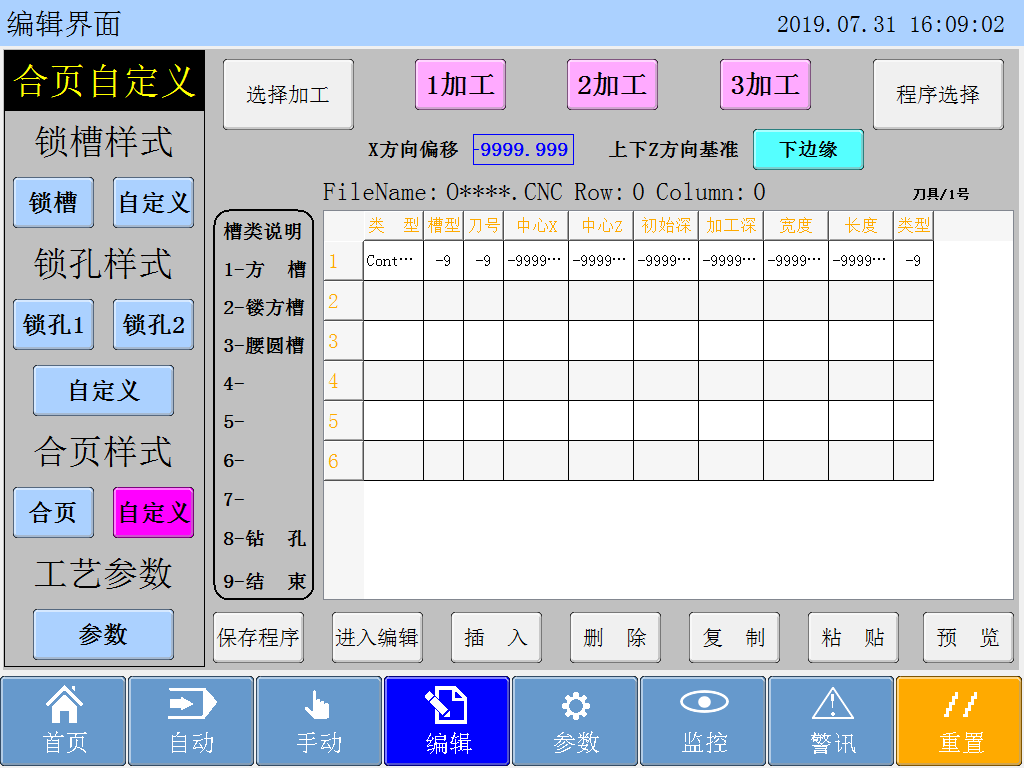

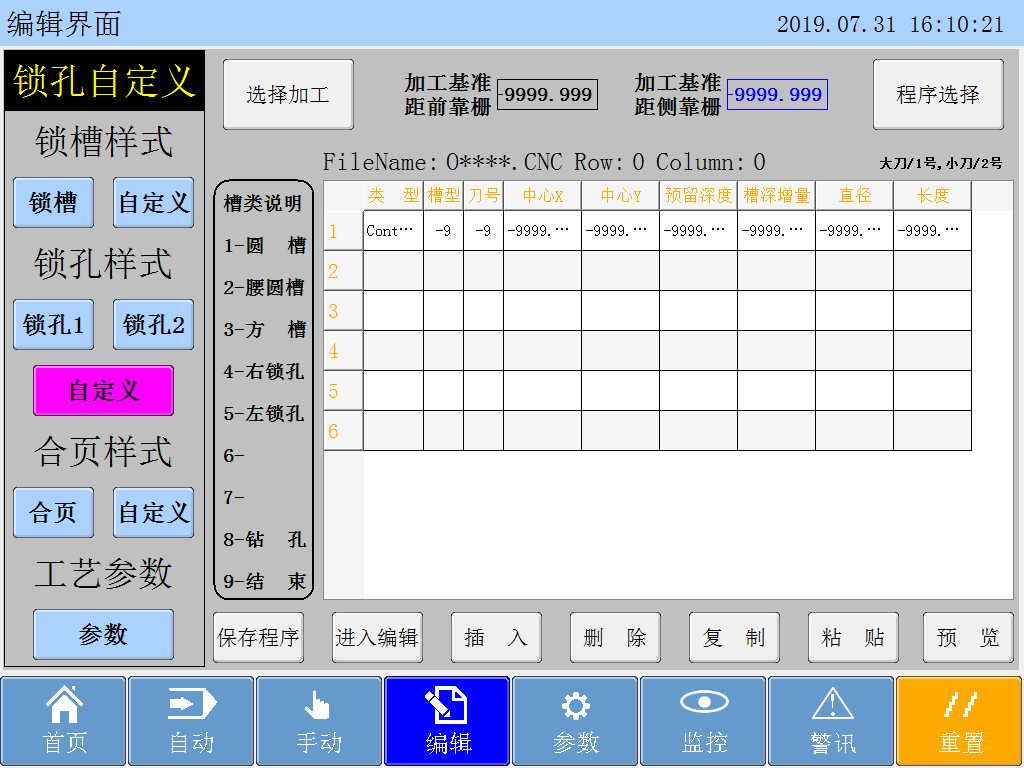

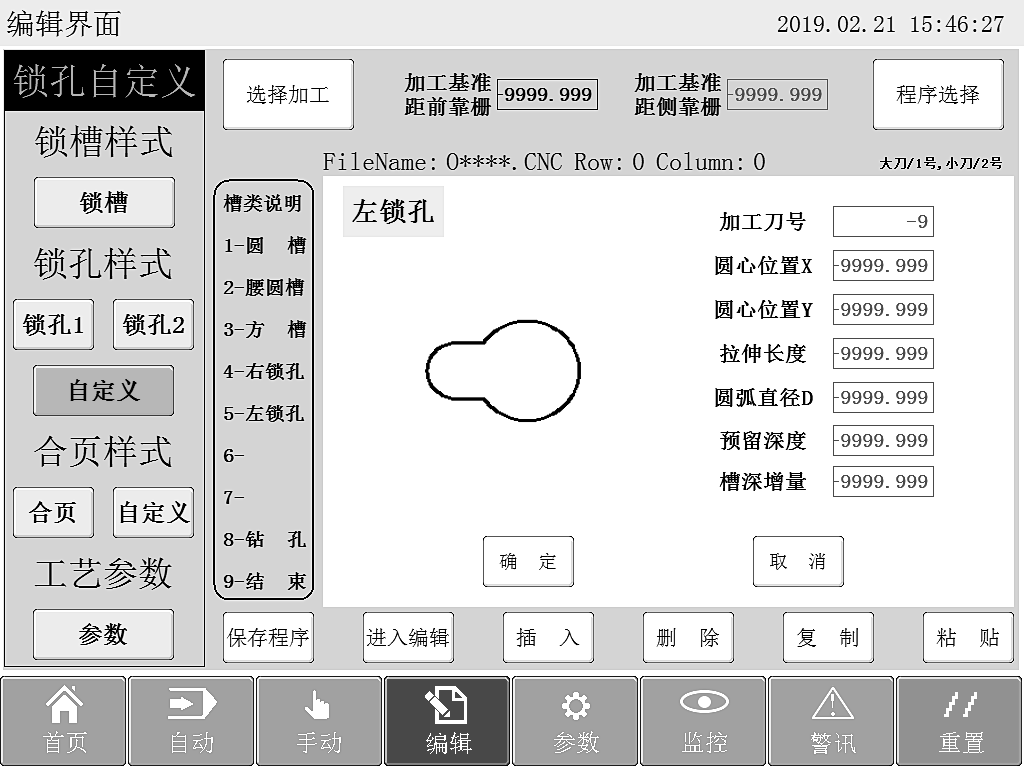

The new lock type can be directly combined into a new machining path in the system.
| |
Working length | 1800～2400mm |
Working width | 640～1100mm |
Working thickness | 30～80mm |
Max. working speed | 20m/min |
Height of worktable | 900mm |
Slot motor power | 3.7Kw |
Hinge motor power | 0.4kw *3 |
Keyhole motor I power | 1.5kW * 2 |
Keyhole motor II power | 0.4kW |
Total power | 12.5kW |
Pneumatic pressure | 0.6MPa |
Machine size | 2800*2200*2000mm |
Machine weight | 2500kg |
The new lock type can be directly combined into a new machining path in the system.
| |

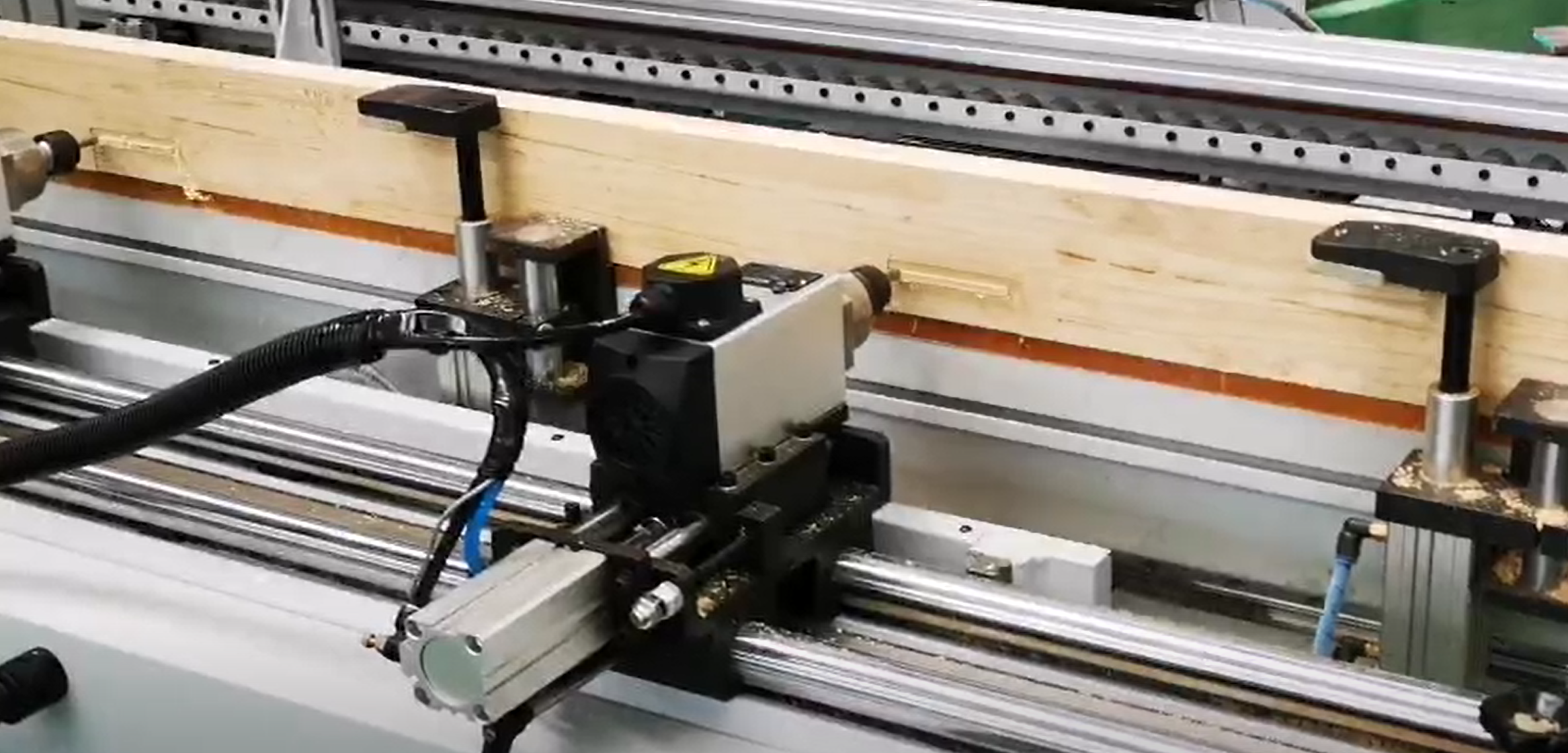

The equipment is equipped with a set of door clamps. The hinges of the door frame can also be processed in this equipment.
